Vue.js 双向数据绑定基本实现认知

Vue
130
0
0
2024-10-11
标签   Vue实践

写在前面

  • 很早的一篇博客,整理了部分,蹭假期整理完
  • 博文内容涉及:
  • 双向数据绑定 实现方式简单介绍
  • 基于发布订阅数据劫持双向数据绑定两种不同实现(ES5/ES6) Demo,以及代码简单分析
  • Object.defineProperty && Proxy API 介绍以及特性对比
  • 理解不足小伙伴帮忙指正 :),生活加油

对每个人而言,真正的职责只有一个:找到自我。然后在心中坚守其一生,全心全意,永不停息。所有其它的路都是不完整的,是人的逃避方式,是对大众理想的懦弱回归,是随波逐流,是对内心的恐惧 ——赫尔曼·黑塞《德米安》

双向数据绑定介绍

在前端框架中,特别是响应式框架(如Vue.js, Angular等)中,双向数据绑定(Two-way data binding)是一个核心特性,它允许开发者在UI和数据之间建立直接的、双向的联系(MVVM)。下面是一些实现双向数据绑定的常见做法:

脏值检查(Dirty Checking)

脏值检查是一种简单的双向数据绑定策略。它周期性地检查数据模型(Model)是否发生了变化,如果发生了变化,则更新视图(View)。脏值检查通常涉及一个“检查周期”或“轮询间隔”,在这个间隔内,框架会遍历所有绑定,并检查是否有任何变化。

然而,脏值检查并不高效,因为它可能需要对整个数据模型进行不必要的遍历,即使数据实际上并没有改变。此外,它也不能立即反映变化,因为它依赖于轮询间隔。

数据劫持(Data Interception)

数据劫持(也称为数据代理或对象劫持)是一种更高效的双向数据绑定策略。它依赖于JavaScriptObject.defineProperty()方法(在ES5中引入),该方法允许你定义或修改对象的属性,包括getter和setter方法。

Vue.js 的早期版本中,当一个对象被用作数据模型时,Vue 会遍历它的所有属性,并使用 Object.defineProperty() 将它们转化为getter/setter,以便在数据变化时能够立即感知到。当视图需要读取数据模型时,getter方法会被调用;当视图需要更新数据模型时,setter方法会被调用,并且可以在这里触发视图的更新。

Vue.js 3.0 开始,引入了更高效的响应式系统,称为Proxy-based reactive systemVue.js 3.0 及以后的版本使用ES6的Proxy来实现双向数据绑定。通过使用Proxy,Vue.js可以更灵活地劫持整个对象,并监视对象的新增和删除属性操作,以及数组的索引和长度变化。

发布者-订阅者模式(Publisher-Subscriber Pattern)

发布者-订阅者模式是一种软件设计模式,它允许一个或多个发布者(Publisher)发布事件,而零个或多个订阅者(Subscriber)会监听这些事件,并在事件发生时执行相应的操作。

在双向数据绑定的上下文中,数据模型可以被视为发布者,而视图则是订阅者。当数据模型发生变化时,它会发布一个事件(通常是一个“change”事件),而所有订阅了这个事件的视图都会收到通知,并更新自己以反映新的数据。

这种模式允许数据模型和视图之间实现松散的耦合,因为它们之间不需要直接通信;它们只需要知道如何发布和监听事件即可。此外,这种模式还具有良好的可扩展性,因为你可以轻松地添加新的发布者或订阅者,而无需修改现有的代码。

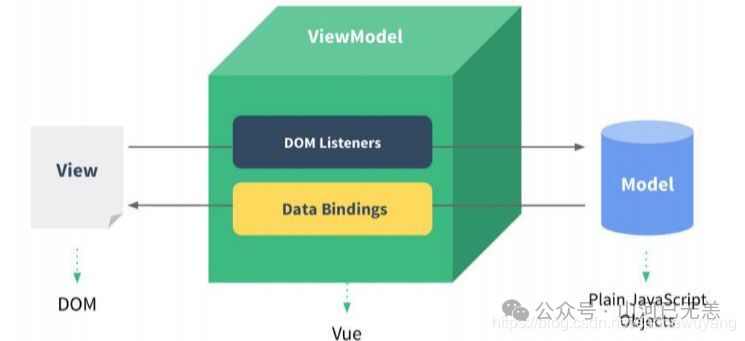

MVVM

Vue.js 双向绑定的简单实现

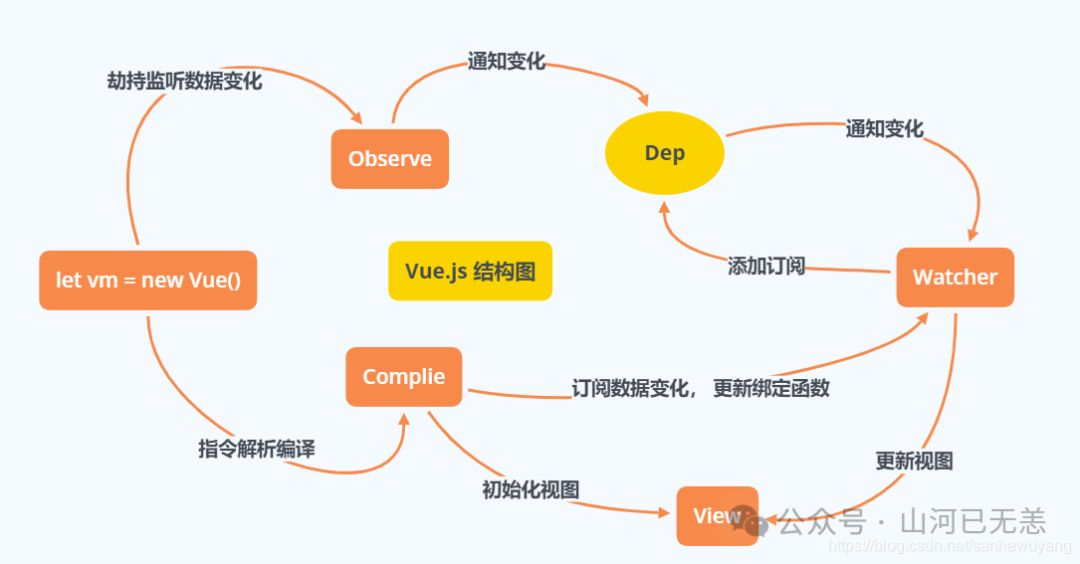

Vue.js 使用了数据劫持(通过Object.defineProperty()、ES6的Proxy)和发布者-订阅者模式(通过自定义的Dep类和Watcher类)来实现其双向数据绑定机制。而Angular则使用了脏值检查Zone.js库(它类似于数据劫持,但工作方式略有不同)来实现类似的功能。

MVVM

Object.defineProperty 数据劫持 Demo

下面的 Demo 简化了 Vue.js 实现,通过数据劫持、订阅者和发布者的机制,实现了将数据和DOM节点进行绑定,并在数据变化时自动更新相关的DOM节点,从而实现了简单的双向数据绑定功能。

<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Two-way data-binding</title>
</head>
<body>
<div id="app">
<input type="text" v-model="text">
<br />
{{ text }}
</div>
<script>
/*
*@Time : 2024/05/03 10:59:55
*@Desc : 数据劫持 或者叫数据监听
*/
function observe(obj, vm) {
// 获取所有的数据,构造数据劫持
Object.keys(obj).forEach((key) => {
console.log(1, "劫持的数据对象为", key, "值为", obj[key])
defineReactive(vm, key, obj[key]);
});
}
/*
*@Time : 2024/05/03 10:44:59
*@Desc : 响应式处理函数
*/
function defineReactive(obj, key, val) {
let dep = new Dep();
console.log(2, "创建发布者:", dep)
Object.defineProperty(obj, key, {
enumerable: true,
configurable: true,
// 使用getter/setter 来实现数据劫持
get: _ => {
// 注册订阅者,如果发布者存在
if (Dep.target) {
dep.addSub(Dep.target);
}
return val // 返回属性值
},
set: (newVal) => {
if (newVal === val) {
return
}
val = newVal;
console.log(5, "更新监听的数据", key, newVal)
// 通知相关的订阅者进行更新
dep.notify();
}
});
}
/*
*@Time : 2024/05/03 10:48:55
*@Desc : 简化的虚拟DOM编译和更新的示例
*/
function nodeToFragment(node, vm) {
var flag = document.createDocumentFragment();
var child;
console.log(3, "编译虚拟 Dom 节点")
while (child = node.firstChild) {
compile(child, vm);
flag.appendChild(child);
}
// 返回虚拟 Dom
return flag;
}
/*
*@Time : 2024/05/03 10:52:42
*@Desc : 编译DOM节点
*/
function compile(node, vm) {
// 节点类型为元素
if (node.nodeType === 1) {
// 获取所有的属性
var attr = node.attributes;
// 解析属性
for (var i = 0; i < attr.length; i++) {
if (attr[i].nodeName == 'v-model') {
var name = attr[i].nodeValue; // 获取v-model绑定的属性名
// 添加 input 事件
node.addEventListener('input', function (e) {
// 给相应的 data 属性赋值,进而触发该属性的set方法
vm[name] = e.target.value;
debugger
});
// 将data的值赋给该node,这里触发 getter 方法
// 但是不进行注册
node.value = vm[name];
node.removeAttribute('v-model');
// 构造订阅者
new Watcher(vm, node, name, 'input');
}
}
}
let reg = /\{\{(.*)\}\}/;
// 节点类型为 text
if (node.nodeType === 3) {
if (reg.test(node.nodeValue)) {
var name = RegExp.$1; // 获取匹配到的字符串
name = name.trim();
// 构造订阅者
new Watcher(vm, node, name, 'text');
}
}
}
/*
*@Time : 2024/05/03 11:53:27
*@Desc : 订阅者
*/
function Watcher(vm, node, name, nodeType) {
// this为watcher函数
Dep.target = this;
// console.log(this);
this.name = name;
this.node = node;
this.vm = vm;
this.nodeType = nodeType;
this.update();
Dep.target = null;
}
Watcher.prototype = {
update() {
this.get();
// 如果是文本,直接更新 `nodeValue`
if (this.nodeType == 'text') {
this.node.nodeValue = this.value;
}
// 如果是输入标签,更新 value 的值
if (this.nodeType == 'input') {
this.node.value = this.value;
}
console.log(6.2, "通知 Dom", this.nodeType, "数据为", this.value)
},
// 获取 data 中的属性值
get() {
// 触发相应属性的 get,这里会进行订阅者注册
this.value = this.vm[this.name];
console.log(6.1, "获取", this.nodeType, "数据最新的值:", this.value)
}
}
/*
*@Time : 2024/05/03 11:48:38
*@Desc : 发布者
*/
function Dep() {
this.subs = []
}
Dep.prototype = {
addSub(sub) {
this.subs.push(sub);
console.log(4, "suds:", this.subs.length, "注册订阅者:", sub)
},
notify() {
console.log(6, "通知订阅者:", this.subs)
this.subs.forEach((sub) => {
sub.update();
});
}
};
/*
*@Time : 2024/05/03 11:07:01
*@Desc :
*/
function Vue(options) {
this.data = options.data;
let data = this.data;
// 构造数据劫持
observe(data, this);
let id = options.el;
let dom = nodeToFragment(document.getElementById(id), this);
// 编译完成后,将dom返回到app中进行挂载
document.getElementById(id).appendChild(dom);
}
/*
*@Time : 2024/05/03 11:09:06
*@Desc : 定义 Vue 对象,传递需要挂载的元素,双向绑定的数据对象
*/
let vm = new Vue({
el: 'app',
data: {
text: 'hello world'
}
});
</script>
</body>

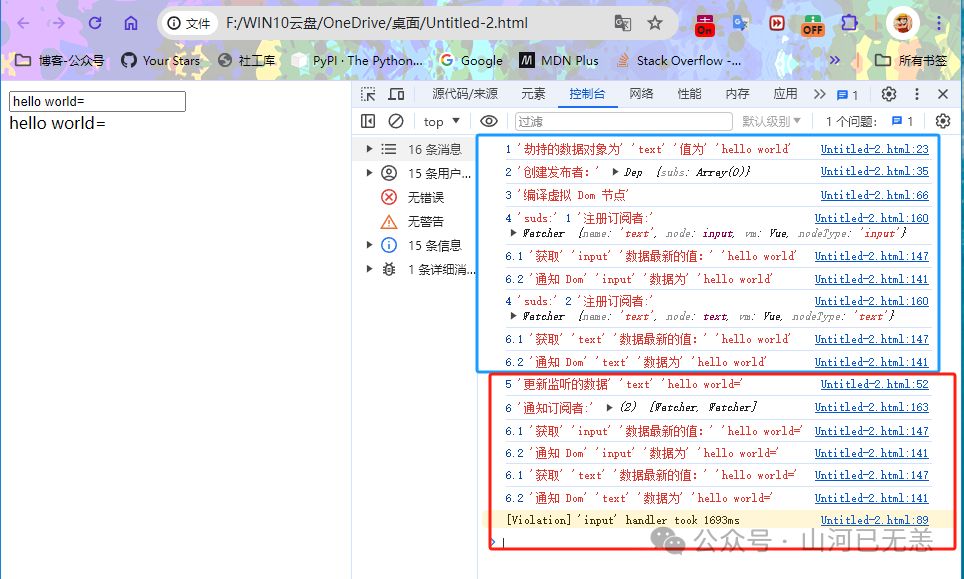

简单分析一下干了什么:

observe 函数用于数据劫持,它接收一个对象和Vue实例作为参数。它通过遍历对象的属性,并调用defineReactive 函数来定义属性的getter和setter,从而实现对属性的劫持和监视。

function observe(obj, vm) {
// 获取所有的数据,构造数据劫持
Object.keys(obj).forEach((key) => {
console.log(1,"劫持的数据对象为", key, "值为",obj[key])
defineReactive(vm, key, obj[key]);
});
}

defineReactive 函数定义了属性的 getter和setter。它创建了一个Dep对象作为发布者,getter 中注册订阅者(Watcher),setter中更新属性的值并通知相关的订阅者进行更新。

function defineReactive(obj, key, val) {
let dep = new Dep();
console.log(2,"创建发布者:",dep)
Object.defineProperty(obj, key, {
enumerable: true,
configurable: true,
// 使用getter/setter 来实现数据劫持
get: _=> {
// 注册订阅者,如果发布者存在
if (Dep.target) {
dep.addSub(Dep.target);
}
return val // 返回属性值
},
set: (newVal) => {
if (newVal === val) {
return
}
val = newVal;
console.log(5,"更新监听的数据",key,newVal)
// 通知相关的订阅者进行更新
dep.notify();
}
});
}

nodeToFragment 函数用于将DOM节点转换为虚拟DOM(DocumentFragment)。它遍历DOM节点的子节点,并调用compile函数来解析和编译节点。

function nodeToFragment(node, vm) {
var flag = document.createDocumentFragment();
var child;
console.log(3,"编译虚拟 Dom 节点")
while (child = node.firstChild) {
compile(child, vm);
flag.appendChild(child);
}
// 返回虚拟 Dom
return flag;
}

compile 函数用于编译DOM节点。对于元素节点,它解析其属性,并处理带有v-model属性的输入节点,实现双向数据绑定。对于文本节点,它解析其中的双括号表达式({{...}}),并创建一个订阅者(Watcher)来监听相关的数据变化。

addEventListener 用于挂载 input 监听事件,当数据发生变化时,会触发 VM 中的 set 方法的数据劫持,从而调用 dep.notify() 方法,实现对所有订阅的通知

function compile(node, vm) {
// 节点类型为元素
if (node.nodeType === 1) {
// 获取所有的属性
var attr = node.attributes;
// 解析属性
for (var i = 0; i < attr.length; i++) {
if (attr[i].nodeName == 'v-model') {
var name = attr[i].nodeValue; // 获取v-model绑定的属性名
// 添加 input 事件
node.addEventListener('input', function (e) {
// 给相应的 data 属性赋值,进而触发该属性的set方法
vm[name] = e.target.value;
debugger
});
node.value = vm[name]; // 将data的值赋给该node
node.removeAttribute('v-model');
// 构造订阅者
new Watcher(vm, node, name, 'input');
}
}
}
let reg = /\{\{(.*)\}\}/;
// 节点类型为 text
if (node.nodeType === 3) {
if (reg.test(node.nodeValue)) {
var name = RegExp.$1; // 获取匹配到的字符串
name = name.trim();
// 构造订阅者
new Watcher(vm, node, name, 'text');
}
}
}

Watcher对象表示一个订阅者。在构造函数中,它将自身赋值给Dep.target,然后通过调用update方法来获取数据并更新DOM节点的值。update方法根据节点类型(文本或输入)更新节点的nodeValue或value属性。在第一次获取值的时候会进行订阅者注册

function Watcher(vm, node, name, nodeType) {
// this为watcher函数
Dep.target = this;
// console.log(this);
this.name = name;
this.node = node;
this.vm = vm;
this.nodeType = nodeType;
this.update();
Dep.target = null;
}
Watcher.prototype = {
update () {
this.get();
// 如果是文本,直接更新 `nodeValue`
if (this.nodeType == 'text') {
this.node.nodeValue = this.value;
}
// 如果是输入标签,更新 value 的值
if (this.nodeType == 'input') {
this.node.value = this.value;
}
console.log(6.2,"通知 Dom",this.nodeType, "数据为",this.value)
},
// 获取 data 中的属性值
get () {
// 触发相应属性的 get,这里会进行订阅者注册
this.value = this.vm[this.name];
console.log(6.1,"获取",this.nodeType,"数据最新的值:",this.value)
}
}

Dep对象表示一个发布者,用于管理订阅者(Watchers)。它有一个subs数组用于存储订阅者,在addSub方法中添加订阅者,而在notify方法中通知所有订阅者进行更新。

function Dep() {
this.subs = []
}
Dep.prototype = {
addSub (sub) {
this.subs.push(sub);
console.log(4, "suds:", this.subs.length, "注册订阅者:", sub)
},
notify () {
console.log(6, "通知订阅者:", this.subs)
this.subs.forEach((sub) => {
sub.update();
});
}
};

Vue对象是自定义的框架的入口点。它接收一个选项对象,其中包含要挂载的元素的选择器和双向绑定的数据对象。在构造函数中,它调用observe函数进行数据劫持,然后调用nodeToFragment函数将DOM节点转换为虚拟DOM,并将其挂载到指定的元素上。

function Vue(options) {
this.data = options.data;
let data = this.data;
// 构造数据劫持
observe(data, this);
let id = options.el;
let dom = nodeToFragment(document.getElementById(id), this);
// 编译完成后,将dom返回到app中进行挂载
document.getElementById(id).appendChild(dom);
}
/*
*@Time : 2024/05/03 11:09:06
*@Desc : 定义 Vue 对象,传递需要挂载的元素,双向绑定的数据对象
*/
let vm = new Vue({
el: 'app',
data: {
text: 'hello world'
}
});

ES6的Proxy 数据劫持 Demo

在 Vue.js 3.0 开始,使用了ES6的Proxy来实现数据劫持。下面的 Demo 演示了如何使用Proxy来进行数据劫持

<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>双向数据绑定Demo</title>
</head>
<body>
<div id="app">
<input type="text" v-model="text">
<br />
{{ text }}
</div>
<script>
/*
*@Time : 2024/05/03 10:59:55
*@Desc : 数据劫持 或者叫数据监听
*/
function observeProxy(obj) {
// 构造代理对象
debugger
let dep = new Dep();
const vm = new Proxy(obj, {
get(target, key) {
// 注册订阅者
if (Dep.target) {
dep.addSub(Dep.target);
}
return target[key];
},
set(target, key, value) {
if (value === target[key]) {
return true;
}
target[key] = value;
// 通知相关的订阅者进行更新
dep.notify();
return true;
}
});
console.log(1, "构造代理对象", vm)
return vm
}
/*
*@Time : 2024/05/03 10:48:55
*@Desc : 简化的虚拟DOM编译和更新的示例
*/
function nodeToFragment(node, vm) {
var flag = document.createDocumentFragment();
var child;
console.log(3, "编译虚拟 Dom 节点")
while (child = node.firstChild) {
compile(child, vm);
flag.appendChild(child);
}
// 返回虚拟 Dom
return flag;
}
/*
*@Time : 2024/05/03 10:52:42
*@Desc : 编译DOM节点
*/
function compile(node, vm) {
// 节点类型为元素
if (node.nodeType === 1) {
// 获取所有的属性
var attr = node.attributes;
// 解析属性
for (var i = 0; i < attr.length; i++) {
if (attr[i].nodeName == 'v-model') {
var name = attr[i].nodeValue; // 获取v-model绑定的属性名
// 添加 input 事件
node.addEventListener('input', function (e) {
// 给相应的 data 属性赋值,进而触发该属性的set方法
vm.vm[name] = e.target.value;
});
debugger
// 将data的值赋给该node,这里触发 getter 方法
node.value = vm.vm[name];
debugger
node.removeAttribute('v-model');
// 构造订阅者
new Watcher(vm, node, name, 'input');
}
}
}
let reg = /\{\{(.*)\}\}/;
// 节点类型为 text
if (node.nodeType === 3) {
if (reg.test(node.nodeValue)) {
var name = RegExp.$1; // 获取匹配到的字符串
name = name.trim();
// 构造订阅者
new Watcher(vm, node, name, 'text');
}
}
}
/*
*@Time : 2024/05/03 11:53:27
*@Desc : 订阅者
*/
function Watcher(vm, node, name, nodeType) {
// this为watcher函数
Dep.target = this;
console.log(this);
this.name = name;
this.node = node;
this.vm = vm.vm;
this.nodeType = nodeType;
this.update();
Dep.target = null;
}
Watcher.prototype = {
update () {
this.get();
// 如果是文本,直接更新 `nodeValue`
if (this.nodeType == 'text') {
debugger
this.node.nodeValue = this.value;
}
// 如果是输入标签,更新 value 的值
if (this.nodeType == 'input') {
debugger
this.node.value = this.value;
}
console.log(6.2, "通知 Dom", this.nodeType, "数据为", this.value)
},
// 获取 data 中的属性值
get () {
// 触发相应属性的 get
this.value = this.vm[this.name];
console.log(6.1, "获取", this.nodeType, "数据最新的值:", this.value)
}
}
/*
*@Time : 2024/05/03 11:48:38
*@Desc : 发布者
*/
function Dep() {
this.subs = []
}
Dep.prototype = {
addSub (sub) {
this.subs.push(sub);
console.log(4, "suds:", this.subs.length, "注册订阅者:", sub)
},
notify () {
console.log(6, "通知订阅者:", this.subs)
this.subs.forEach((sub) => {
sub.update();
});
}
};
/*
*@Time : 2024/05/03 11:07:01
*@Desc :
*/
function Vue(options) {
this.data = options.data;
let data = this.data;
// 构造数据劫持
this.vm = observeProxy(data);
let id = options.el;
let dom = nodeToFragment(document.getElementById(id), this);
// 编译完成后,将dom返回到app中进行挂载
document.getElementById(id).appendChild(dom);
}
/*
*@Time : 2024/05/03 11:09:06
*@Desc : 定义 Vue 对象,传递需要挂载的元素,双向绑定的数据对象
*/
let vm = new Vue({
el: 'app',
data: {
text: 'hello world'
}
});
</script>
</body>
</html>

和最上面的 Demo 相比较,observeProxy 方法没有直接修改 VM 对象,Proxy 本身并没有提供一种方法来修改对象属性,所以这里返回一个代理对象Proxy 给了 VM 的 vm 属性,把 需要劫持的数据嵌套了一层放到了 VM 对象。

function Vue(options) {
this.data = options.data;
let data = this.data;
// 构造数据劫持
this.vm = observeProxy(data);
let id = options.el;
let dom = nodeToFragment(document.getElementById(id), this);
// 编译完成后,将dom返回到app中进行挂载
document.getElementById(id).appendChild(dom);
}
function observeProxy(obj) {
// 构造代理对象
debugger
let dep = new Dep();
const vm = new Proxy(obj, {
get(target, key) {
// 注册订阅者
if (Dep.target) {
dep.addSub(Dep.target);
}
return target[key];
},
set(target, key, value) {
if (value === target[key]) {
return true;
}
target[key] = value;
// 通知相关的订阅者进行更新
dep.notify();
return true;
}
});
console.log(1, "构造代理对象", vm)
return vm
}

Object.defineProperty && Proxy API 介绍

Object.defineProperty

Object.definePropertyES5引入的一个特性,它允许我们将自定义的逻辑应用于对象的属性访问和修改。它可以定义一个新属性或修改现有属性,并定义属性的行为,例如读取(get)和写入(set)时的操作。

const obj = {};
Object.defineProperty(obj, 'name', {
get() {
console.log('读取name属性');
return this._name;
},
set(value) {
console.log('设置name属性');
this._name = value;
}
});
obj.name = 'John'; // 输出:设置name属性
console.log(obj.name); // 输出:读取name属性和John

Proxy API

ProxyES6引入的另一个特性,它提供了对对象的拦截和自定义行为的能力。Proxy可以拦截对象上的各种操作,包括属性的读取、写入、函数调用等。通过Proxy,我们可以对对象的访问和修改进行自定义处理

const obj = {
name: 'John'
};
const proxy = new Proxy(obj, {
get(target, key) {
console.log(`访问属性:${key}`);
return target[key];
},
set(target, key, value) {
console.log(`设置属性:${key} = ${value}`);
target[key] = value;
return true;
}
});
proxy.name = 'Jane'; // 输出:设置属性:name = Jane
console.log(proxy.name); // 输出:访问属性:name 和 Jane

简单比较

用法行为:

  • Object.defineProperty:需要逐个定义每个属性的行为,即显式地指定对象的某个属性需要进行拦截和处理。这需要修改现有的对象定义,使其符合拦截要求。这种操作是显式的,需要直接操作对象本身,并且需要事先知道要拦截的属性。后期的操作还是使用目标对象
  • Proxy:创建代理对象时需要提供一个处理器对象,该处理器对象定义了拦截器方法,用于拦截和处理各种操作。代理对象会完全地代理目标对象,并将所有操作转发给目标对象,因此无需修改目标对象本身。这种操作是隐式的,代理对象会在后台拦截和处理所有操作,而不需要直接操作目标对象。代理对象可以在外部对目标对象进行拦截和处理,而目标对象本身保持不变。后期的操作对象是代理对象,而不是目标对象.

拦截能力:

  • Object.defineProperty:主要用于拦截对象的属性读取和写入操作,也可以通过get和set定义一些自定义逻辑。它只能拦截属性级别的操作,无法拦截其他操作。
  • Proxy:具有更强大的拦截能力,可以拦截对象上的多种操作,包括属性的读取、写入、删除、函数调用等。可以通过代理对象的不同处理器方法来自定义拦截逻辑。

动态属性和删除属性:

  • Object.defineProperty:在对象创建后无法动态添加或删除拦截的属性。
  • Proxy可以动态添加和删除属性,并在拦截器中处理相应的操作。

兼容性:

  • Object.defineProperty:相对来说,较好地支持各种现代浏览器和旧版本浏览器,包括IE9+。
  • Proxy:较新的特性,不被所有旧版本浏览器支持,特别是在IE浏览器中不被支持。如果需要在不支持Proxy的环境中运行,需要使用其他解决方案或使用polyfill进行兼容处理。

博文部分内容参考

© 文中涉及参考链接内容版权归原作者所有,如有侵权请告知 :)

https://liruilong.blog.csdn.net/article/details/117675985
