前言
最近开发有个需求需要酷炫的文字滚动效果,发现vue2版本的CountTo组件不适用与Vue3,没有轮子咋办,那咱造一个呗。其实大多数版本更替导致公共组件不可用,最简单的做法就是在原版本的基础上进行修改调整,总体来讲花费的时间成本以及精力成本最低。
思考

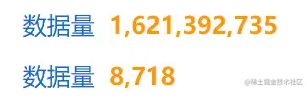

先看下效果,明确需求,然后开始搬砖。
明确基础功能
- 有开始值、结束值以及动画持续时间
- 默认分隔符、自动播放
扩展功能
- 自动播放可配置
- 分隔符可自定义
- 前、后缀
- 动画配置项
实践
定义参数
const props = {
start: {
type: Number,
required: false,
default:
},
end: {
type: Number,
required: false,
default:
},
duration: {
type: Number,
required: false,
default:
},
autoPlay: {
type: Boolean,
required: false,
default: true
},
decimals: {
type: Number,
required: false,
default:,
validator(value) {
return value >=
}
},
decimal: {
type: String,
required: false,
default: '.'
},
separator: {
type: String,
required: false,
default: ','
},
prefix: {
type: String,
required: false,
default: ''
},
suffix: {
type: String,
required: false,
default: ''
},
useEasing: {
type: Boolean,
required: false,
default: true
},
easingFn: {
type: Function,
default(t, b, c, d) {
return c * (-Math.pow(, -10 * t / d) + 1) * 1024 / 1023 + b
}
}
}
定义一个开始函数
// 定义一个计算属性,当开始数字大于结束数字时返回true
const stopCount = computed(() => {
return props.start > props.end
})
const startCount = () => {
state.localStart = props.start
state.startTime = null
state.localDuration = props.duration
state.paused = false
state.rAF = requestAnimationFrame(count)
}
watch(() => props.start, () => {
if (props.autoPlay) {
startCount()
}
})
watch(() => props.end, () => {
if (props.autoPlay) {
startCount()
}
})
// dom挂在完成后执行一些操作
onMounted(() => {
if (props.autoPlay) {
startCount()
}
emit('onMountedcallback')
})
// 组件销毁时取消动画
onUnmounted(() => {
cancelAnimationFrame(state.rAF)
})
核心方法
const count = (timestamp) => {
if (!state.startTime) state.startTime = timestamp
state.timestamp = timestamp
const progress = timestamp - state.startTime
state.remaining = state.localDuration - progress
// 是否使用速度变化曲线
if (props.useEasing) {
if (stopCount.value) {
state.printVal = state.localStart - props.easingFn(progress,, state.localStart - props.end, state.localDuration)
} else {
state.printVal = props.easingFn(progress, state.localStart, props.end - state.localStart, state.localDuration)
}
} else {
if (stopCount.value) {
state.printVal = state.localStart - ((state.localStart - props.end) * (progress / state.localDuration))
} else {
state.printVal = state.localStart + (props.end - state.localStart) * (progress / state.localDuration)
}
}
if (stopCount.value) {
state.printVal = state.printVal < props.end ? props.end : state.printVal
} else {
state.printVal = state.printVal > props.end ? props.end : state.printVal
}
state.displayValue = formatNumber(state.printVal)
if (progress < state.localDuration) {
state.rAF = requestAnimationFrame(count)
} else {
emit('callback')
}
}
配置项
属性 | 描述 | 类型 | 默认值 |
startVal | 开始值 | Number | 0 |
endVal | 结束值 | Number | 0 |
duration | 持续时间 | Number | 0 |
autoplay | 自动播放 | Boolean | true |
decimals | 要显示的小数位数 | Number | 0 |
decimal | 十进制分割 | String | , |
separator | 分隔符 | String | , |
prefix | 前缀 | String | '' |
suffix | 后缀 | String | '' |
useEasing | 使用缓和功能 | Boolean | true |
easingFn | 缓和回调 | Function | - |
注:当autoplay:true时,它将在startVal或endVal更改时自动启动
功能
函数名 | 描述 |
mountedCallback | 挂载以后返回回调 |
start | 开始计数 |
pause | 暂停计数 |
reset | 重置countTo |
组件
组件同步在git组件库了https://github.com/kinoaa/kinoaa-components/tree/main/countTo
import {defineComponent, reactive, computed, onMounted, watch, onUnmounted
} from 'vue'
const props = {start: {
type: Number,
required: false,
default:
},end: {
type: Number,
required: false,
default:
},duration: {
type: Number,
required: false,
default:
},autoPlay: {
type: Boolean,
required: false,
default: true
},decimals: {
type: Number,
required: false,
default:,
validator(value) {
return value >=
}
},decimal: {
type: String,
required: false,
default: '.'
},separator: {
type: String,
required: false,
default: ','
},prefix: {
type: String,
required: false,
default: ''
},suffix: {
type: String,
required: false,
default: ''
},useEasing: {
type: Boolean,
required: false,
default: true
},easingFn: {
type: Function,
default(t, b, c, d) {
return c * (-Math.pow(, -10 * t / d) + 1) * 1024 / 1023 + b
}
}
}
export default defineComponent({name: 'CountTo',
props: props,emits: ['onMountedcallback', 'callback'],
setup(props, {emit}) { const isNumber = (val) => {
return !isNaN(parseFloat(val))
}
// 格式化数据,返回想要展示的数据格式
const formatNumber = (val) => {
val = val.toFixed(props.start)
val += ''
const x = val.split('.')
let x = x[0]
const x = x.length > 1 ? props.decimal + x[1] : ''
const rgx = /(\d+)(\d{})/
if (props.separator && !isNumber(props.separator)) {
while (rgx.test(x)) {
x = x1.replace(rgx, '$1' + props.separator + '$2')
}
}
return props.prefix + x + x2 + props.suffix
}
const state = reactive<{
localStart: number
displayValue: number|string
printVal: any
paused: boolean
localDuration: any
startTime: any
timestamp: any
remaining: any
rAF: any
}>({
localStart: props.start,
displayValue: formatNumber(props.start),
printVal: null,
paused: false,
localDuration: props.duration,
startTime: null,
timestamp: null,
remaining: null,
rAF: null
})
// 定义一个计算属性,当开始数字大于结束数字时返回true
const stopCount = computed(() => {
return props.start > props.end
})
const startCount = () => {
state.localStart = props.start
state.startTime = null
state.localDuration = props.duration
state.paused = false
state.rAF = requestAnimationFrame(count)
}
watch(() => props.start, () => {
if (props.autoPlay) {
startCount()
}
})
watch(() => props.end, () => {
if (props.autoPlay) {
startCount()
}
})
// dom挂在完成后执行一些操作
onMounted(() => {
if (props.autoPlay) {
startCount()
}
emit('onMountedcallback')
})
const count = (timestamp) => {
if (!state.startTime) state.startTime = timestamp
state.timestamp = timestamp
const progress = timestamp - state.startTime
state.remaining = state.localDuration - progress
// 是否使用速度变化曲线
if (props.useEasing) {
if (stopCount.value) {
state.printVal = state.localStart - props.easingFn(progress,, state.localStart - props.end, state.localDuration)
} else {
state.printVal = props.easingFn(progress, state.localStart, props.end - state.localStart, state.localDuration)
}
} else {
if (stopCount.value) {
state.printVal = state.localStart - ((state.localStart - props.end) * (progress / state.localDuration))
} else {
state.printVal = state.localStart + (props.end - state.localStart) * (progress / state.localDuration)
}
}
if (stopCount.value) {
state.printVal = state.printVal < props.end ? props.end : state.printVal
} else {
state.printVal = state.printVal > props.end ? props.end : state.printVal
}
state.displayValue = formatNumber(state.printVal)
if (progress < state.localDuration) {
state.rAF = requestAnimationFrame(count)
} else {
emit('callback')
}
}
// 组件销毁时取消动画
onUnmounted(() => {
cancelAnimationFrame(state.rAF)
})
return () => (
state.displayValue
)
}
})
