这一篇就着重写一下客户端的代码，客户端主要实现的有：启动后检测本地的xml文件，然后发送到服务器获取需要更新的文件以及版本列表。循环下载。下载成功后，备份原始文件->复制到主目录（若失败进行回滚）->修改本地xml文件，更新完成后打开主程序。

开发环境

.NET Core 3.1

开发工具

Visual Studio 2019

实现代码

/// <summary>
/// 更新自己
/// </summary>
private void CopyRun() {

    string runPath = Process.GetCurrentProcess().MainModule.FileName;
    string runName = Path.GetFileName(runPath);

    if(!runName.StartsWith("_")) {
        string copyPath = runPath.Replace(runName, "_" + runName);
        byte[] bytes;
        using(FileStream fileStream = new FileStream(runPath, FileMode.Open, FileAccess.Read)) {
            bytes = new byte[fileStream.Length];
            fileStream.Read(bytes, 0, bytes.Length);
        }
        using(FileStream fileStream = new FileStream(copyPath, FileMode.Create, FileAccess.Write)) {
            fileStream.Write(bytes);
        }

        ProcessStartInfo info = new ProcessStartInfo(copyPath, _runApp);
        Process.Start(info);
        Environment.Exit(0);
    }

}

/// <summary>
/// 更新UI
/// </summary>
/// <param name="actoin"></param>
private void UpdateUI(Action actoin) {
    if(this.InvokeRequired) {
        this.BeginInvoke(actoin);
    }
    else {
        actoin();
    }
}

/// <summary>
/// 获取本地更新地址
/// </summary>
/// <returns></returns>
private string GetUpdateUrl() {
    XElement xele = XElement.Load(updateXml);
    string url = xele.Element("url").Value;
    return url;
}

/// <summary>
/// 获取本地更新文件
/// </summary>
/// <returns></returns>
private string GetUpdateFiles() {
    XDocument xdoc = XDocument.Load(updateXml);
    var files = from f in xdoc.Root.Element("files").Elements() select new { name = f.Attribute("name").Value, version = f.Attribute("version").Value };
    return JsonConvert.SerializeObject(files);
}

/// <summary>
/// 更新完成后修改版本文件
/// </summary>
/// <param name="list"></param>
private void UpdateXml(List<UpdateModel> list) {
    XDocument xdoc = XDocument.Load(updateXml);
    foreach(var model in list) {
        var ele_files = xdoc.Root.Element("files");

        XElement xele = ele_files.Elements().FirstOrDefault(s => s.Attribute("name").Value == model.name);
        if(xele != null) {
            xele.SetAttributeValue("version", model.version);
        }
        else {
            XElement addXele = new XElement("file");
            addXele.SetAttributeValue("name", model.name);
            addXele.SetAttributeValue("version", model.version);
            ele_files.Add(addXele);
        }
    }
    xdoc.Save(updateXml);
}
readonly string _runApp;
public Form_update(string runApp) {
    InitializeComponent();
    _runApp = runApp;
    //CopyRun();
}
readonly string updateXml = Application.StartupPath + "UpdateList.xml";
private void btn_update_Click(object sender, EventArgs e) {
    #region 设置ui
    btn_update.Enabled = false;
    label_status.Text = "正在更新";
    #endregion

    #region 初始化路径
    string savePath = Application.StartupPath + "temp_update\\";
    string backPath = Application.StartupPath + "temp_back\\";
    if(Directory.Exists(savePath)) {
        Directory.Delete(savePath, true);
    }
    Directory.CreateDirectory(savePath);

    if(Directory.Exists(backPath)) {
        Directory.Delete(backPath, true);
    }
    Directory.CreateDirectory(backPath);

    #endregion

    #region 图标旋转
    int angle = 0;
    Image img = pictureBox1.BackgroundImage;

    System.Threading.Timer timer = new System.Threading.Timer(s => {
        UpdateUI(() => {
            angle = angle == 360 ? 0 : angle + 10;
            pictureBox1.BackgroundImage = img.RotateImage(angle);
        });
    }, null, 0, 100);
    #endregion

    #region 下载更新
    string url = GetUpdateUrl();
    bool isSuccess = false;
    Task.Run(() => {
        try {
            //获取下载列表
            HttpResult httpResult = HttpUtil.HttpRequest(new HttpItem(url + "GetUpdateFiles", requestData: GetUpdateFiles()));
            if(httpResult.Status) {
                UpdateModel_Out output = JsonConvert.DeserializeObject<UpdateModel_Out>(httpResult.HttpStringData);

                if(output.updateList.Count == 0) {
                    throw new Exception("当前已是最新版本");
                }

                UpdateUI(() => {
                    progressBar1.Maximum = output.updateList.Count + 1;
                });
                //循环下载文件
                for(int i = 0; i < output.updateList.Count; i++) {

                    UpdateModel updateModel = output.updateList[i];
                    #region 进度条
                    UpdateUI(() => {
                        label_status.Text = $"正在更新第 {i + 1}/{output.updateList.Count} 个文件,文件名：{updateModel.name}";
                        progressBar1.Value = i + 1;
                    });
                    #endregion

                    #region 下载文件
                    httpResult = HttpUtil.HttpRequest(new HttpItem(url + "DownloadFile", requestData: JsonConvert.SerializeObject(updateModel)));
                    if(httpResult.Status) {
                        using(FileStream fileStream = new FileStream(savePath + updateModel.name, FileMode.Create)) {
                            fileStream.Write(httpResult.HttpByteData, 0, httpResult.HttpByteData.Length);
                        }
                    }
                    else {
                        throw new Exception(updateModel.name + "下载失败,请重试");
                    }
                    #endregion

                    Task.Delay(1000).Wait();
                }

                #region 备份
                UpdateUI(() => {
                    label_status.Text = "正在备份";
                });
                try {
                    File.Copy(updateXml, backPath + "UpdateList.xml");
                    foreach(var file in output.updateList) {
                        if(File.Exists(Application.StartupPath + file.name)) {
                            File.Copy(Application.StartupPath + file.name, backPath + file.name, true);
                        }
                    }
                }
                catch { }
                #endregion

                #region 完成更新
                UpdateUI(() => {
                    label_status.Text = "正在完成更新";
                    progressBar1.Value = progressBar1.Maximum;
                });
                string[] files = Directory.GetFiles(savePath);
                try {
                    #region 更新成功
                    foreach(string file in files) {
                        File.Copy(file, Application.StartupPath + Path.GetFileName(file), true);
                    }
                    Directory.Delete(savePath, true);
                    #region 保存最新版本
                    UpdateXml(output.updateList);
                    isSuccess = true;
                    UpdateUI(() => {
                        label_status.Text = "更新完成";
                    });
                    #endregion
                    #endregion
                }
                catch {
                    #region 失败回滚
                    UpdateUI(() => {
                        label_status.Text = "更新失败，正在回滚";
                    });
                    string[] files_back = Directory.GetFiles(backPath);
                    foreach(string file in files_back) {
                        File.Copy(file, Application.StartupPath + Path.GetFileName(file), true);
                    }
                    File.Copy(backPath + "UpdateList.xml", updateXml, true);
                    UpdateUI(() => {
                        label_status.Text = "回滚完成";
                    });
                    return;
                    #endregion
                }
                #endregion
            }
            else {
                throw new Exception("获取更新列表失败");
            }
        }
        catch(Exception ex) {
            UpdateUI(() => {
                label_status.Text = "更新失败！" + ex.Message;
                btn_update.Enabled = true;
            });
        }
        finally {
            UpdateUI(() => {
                timer.Change(-1, -1);
                pictureBox1.BackgroundImage = img;
                if(isSuccess) {
                    if(File.Exists(_runApp)) {
                        if(MessageBox.Show("更新完成,是否打开程序", "提示", MessageBoxButtons.YesNo, MessageBoxIcon.Question) == DialogResult.Yes) {
                            Process.Start(_runApp);
                        }
                        Environment.Exit(0);
                    }
                }
            });
        }
    });
    #endregion

}

private void btn_close_Click(object sender, EventArgs e) {
    Close();
}

private void panel1_Paint(object sender, PaintEventArgs e) {
    Pen pen = new Pen(Color.LightGray);
    e.Graphics.DrawLine(pen, new Point(36, 36), new Point(panel1.Width - 36, 36));
}

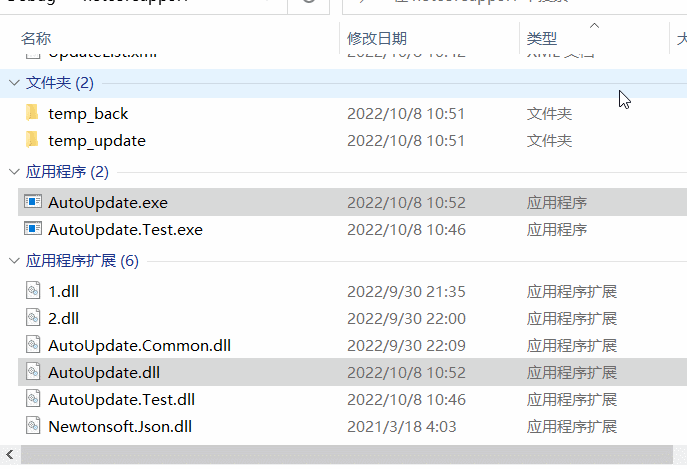

实现效果

代码解析

主要注释已经在代码中标注了，由于基本都是在线程中进行操作的，所以在更新UI的时候封装了UpdateUI方法，然后就是加了一个定时器实现图标的旋转。关于CopyRun（更新自己）方法，就是用来更新自动更新程序本身的，即运行之前复制一份本身，然后启动复制的程序，否则本身正在运行的时候是不能更新自己的。
