概述

AStar算法是一种图形搜索算法，常用于寻路。他是以广度优先搜索为基础，集Dijkstra算法和最佳优先(best fit)于一身的一种算法。

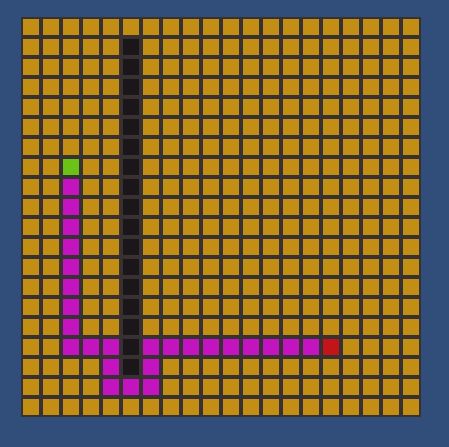

示例1:4向

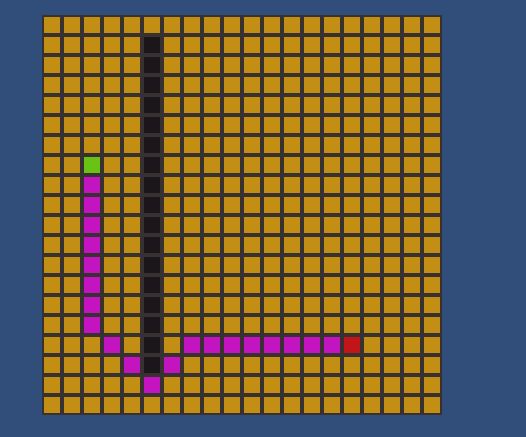

示例2:8向

思路

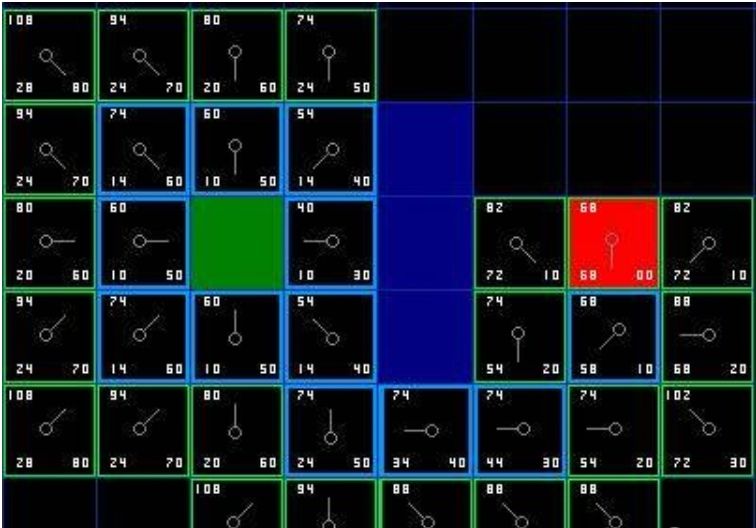

递归的通过估值函数找到最佳路径，估值函数与距离相关，也有可能与通过代价系数相关（例如平地系数为1，坡地系数为2），有三个参数：

  • G：起点点到当前点的代价
  • H: 当前点到终点的代价
  • F: F = G + H 与最佳路径权重负相关的参数

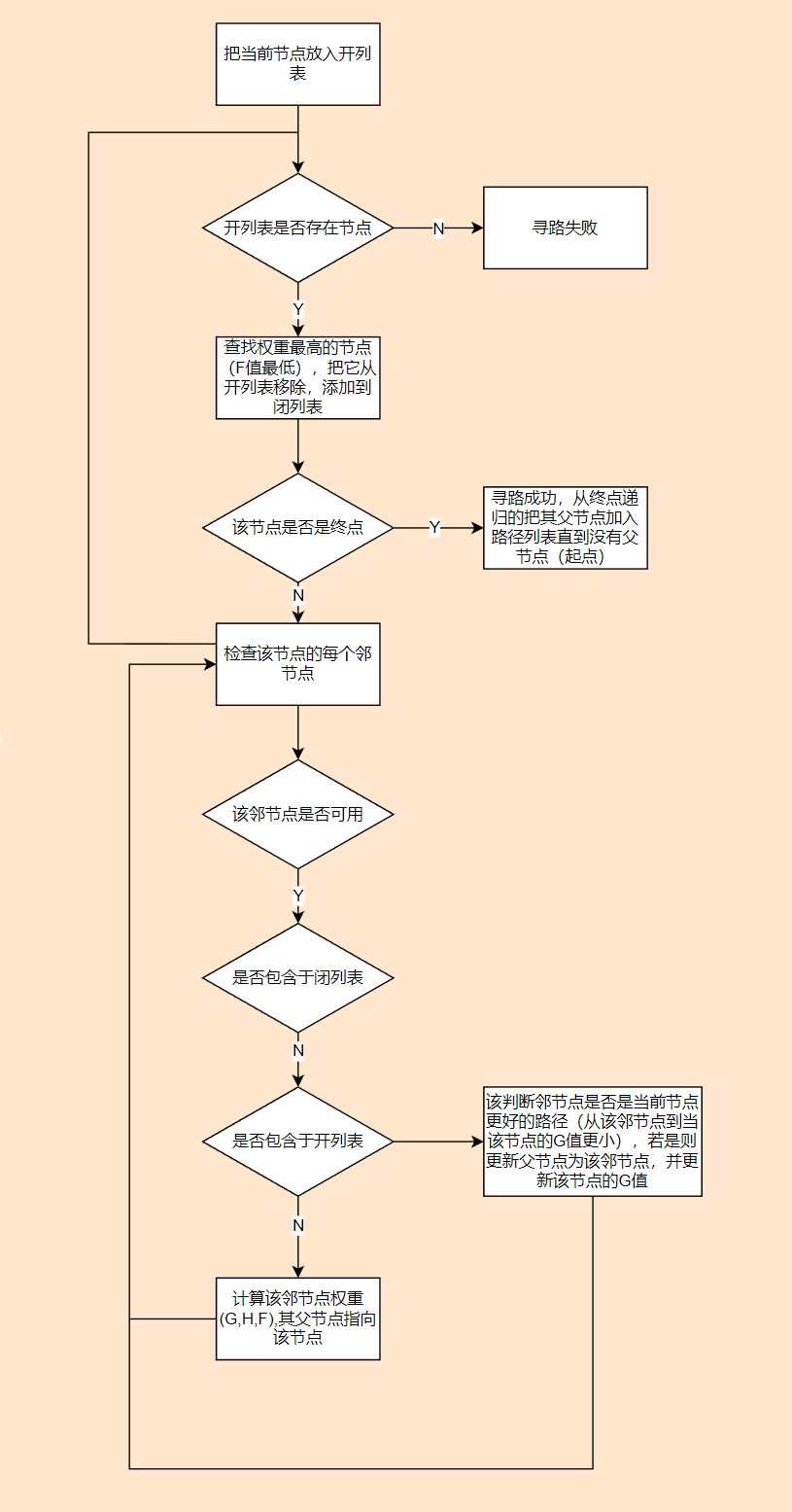

过程大概：

代码示例

位置定义

public struct Vec
{
    public int x;
    public int y;

    public Vec(int x, int y)
    {
        this.x = x;
        this.y = y;
    }

    public static Vec Zero
    {
        get
        {
            return new Vec(0, 0);
        }
    }

    public override bool Equals(object obj)
    {
        if (!(obj is Vec))
            return false;

        var o = (Vec)obj;
        return x == o.x && y == o.y;
    }

    public override int GetHashCode()
    {
        return x.GetHashCode() + y.GetHashCode();
    }

    public static Vec operator +(Vec2 a, Vec2 b)
    {
        return new Vec(a.x + b.x, a.y + b.y);
    }

    public static Vec operator *(Vec2 a, int n)
    {
        return new Vec(a.x * n, a.y * n);
    }

    public static Vec operator *(int n, Vec2 a)
    {
        return new Vec(a.x * n, a.y * n);
    }

    public static bool operator ==(Vec a, Vec2 b)
    {
        return a.x == b.x && a.y == b.y;
    }

    public static bool operator !=(Vec a, Vec2 b)
    {
        return !(a.x == b.x && a.y == b.y);
    }
}

方向定义

public enum EDir
{
    Up =,
    Down =,
    Left =,
    Right =,
    UpLeft =,
    UpRight =,
    DownLeft =,
    DownRight =,
}

public abstract class CheckDirPol
{
    abstract public Dictionary<EDir, Vec> GetDir();
}

public class CheckDirPol : CheckDirPol
{
    private Dictionary<EDir, Vec> dirDict = new Dictionary<EDir, Vec2>
    {
        {EDir.Up, new Vec(0, 1) },
        {EDir.Down, new Vec(0, -1) },
        {EDir.Left, new Vec(-1, 0) },
        {EDir.Right, new Vec(1, 0) },
    };
    override public Dictionary<EDir, Vec> GetDir()
    {
        return dirDict;
    }
}

public class CheckDirPol : CheckDirPol
{
    private Dictionary<EDir, Vec> dirDict = new Dictionary<EDir, Vec2>
    {
        {EDir.Up, new Vec(0, 1) },
        {EDir.Down, new Vec(0, -1) },
        {EDir.Left, new Vec(-1, 0) },
        {EDir.Right, new Vec(1, 0) },
        {EDir.UpLeft, new Vec(-1, 1) },
        {EDir.UpRight, new Vec(1, 1) },
        {EDir.DownLeft, new Vec(-1, -1) },
        {EDir.DownRight, new Vec(1, -1) },

    };
    override public Dictionary<EDir, Vec> GetDir()
    {
        return dirDict;
    }
}

运用策略模式的技巧，以实现4向，8向搜索切换

估值函数

public abstract class EvaPol
{
	abstract public float Calc(Vec a, Vec2 b);
}

public class MANEvaPol : EvaPol
{
    override public float Calc(Vec a, Vec2 b)
    {
        return Mathf.Abs(a.x - b.x) + Mathf.Abs(a.y - b.y);
    }
}

直接使用曼哈顿距离作为代价

节点定义

public class Node
{
    public int id;
    public Vec pos;
    public float g;
    public float h;
    public float f;
    public Vec prePos;
    public bool hasPrePos;

    public Node(Vec pos)
    {
        this.pos = pos;
    }

    public void SetPrePos(Vec pos)
    {
        prePos = pos;
        hasPrePos = true;
    }
}

算法上下文定义

Context context;
EvaPol disPol;
CheckDirPol checkDirPol;

public struct Context
{
    public Vec end;
    public Vec start;
    public Node[,] nodes;
    public List<Node> open;
    public List<Node> close;
    public int[,] map;
    public List<Vec> result;
    public Vec size;
}

寻路算法

初始化

public void Init(Vec start, Vec2 end, int[,] map)
{
	var x = map.GetLength();
	var y = map.GetLength();
	context = new Context()
	{
		start = start,
		end = end,
		open = new List<Node>(),
		close = new List<Node>(),
		map = map,
		result = new List<Vec>(),
		size = new Vec(x, y),
	};

	context.nodes = new Node[x, y];
	for (int i =; i < x; i++)
		for (int j =; j < x; j++)
			context.nodes[i, j] = new Node(new Vec(i, j));

	disPol = new MANEvaPol();
	//checkDirPol = new CheckDirPol();
	checkDirPol = new CheckDirPol();
}

获取路径

public List<Vec> GetResult()
{
	return context.result;
}

寻路

寻路入口

public void FindPath()
{
	var s = context.start;
	var sn = context.nodes[s.x, s.y];
	sn.g =;
	sn.h = disPol.Calc(s, context.end);
	sn.f = sn.g + sn.h;
	context.open.Add(sn);

	FindArrangement(sn);
}

递归函数

void FindArrangement(Node node)
{
	context.close.Add(node);
	context.open.Remove(node);

	if (node.pos == context.end)
	{
		SetResult(node);
		return;
	}

	CheckRound(node);
	if (context.open.Count ==)
		return;

	Node next = context.open[];
	for (int i =; i < context.open.Count; i++)
		if (context.open[i].f < next.f)
			next = context.open[i];

	FindArrangement(next);
}

检查周围节点

void CheckRound(Node node)
{
	var dirDict = checkDirPol.GetDir();
	foreach (var pair in dirDict)
	{
		var dir = node.pos + pair.Value;

		if (IsBlock(dir))
			continue;
		var dn = context.nodes[dir.x, dir.y];

		if (context.close.Contains(dn))
			continue;

		if (context.open.Contains(dn))
			TryOverridePath(node, dn);
		else
		{
			dn.g = disPol.Calc(dn.pos, context.start);
			dn.h = disPol.Calc(dn.pos, context.end);
			dn.f = dn.g + dn.h;
			dn.SetPrePos(node.pos);
			context.open.Add(dn);
		}
	}
}

// 若是从邻节点到该节点路径更优，则替换更新
void TryOverridePath(Node a, Node b)
{
	var g = a.g + disPol.Calc(a.pos, b.pos);
	if (g < b.g)
	{
		b.g = g;
		b.SetPrePos(a.pos);
	}
}

bool IsBlock(Vec pos)
{
	return !InMap(pos) || context.map[pos.x, pos.y] ==;
}

bool InMap(Vec pos)
{
	var x = pos.x;
	var y = pos.y;
	var size = context.size;
	return x >= && x < size.x && y >= 0 && y < size.y;
}

生成路径

void SetResult(Node node)
{
	Queue<Node> q = new Queue<Node>();
	while(node.hasPrePos)
	{
		q.Enqueue(node);
		node = context.nodes[node.prePos.x, node.prePos.y];
	}
	while(q.Count >)
	{
		context.result.Add(q.Dequeue().pos);
	}
}

完整代码

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public struct Vec
{
    public int x;
    public int y;

    public Vec(int x, int y)
    {
        this.x = x;
        this.y = y;
    }

    public static Vec Zero
    {
        get
        {
            return new Vec(0, 0);
        }
    }

    public override bool Equals(object obj)
    {
        if (!(obj is Vec))
            return false;

        var o = (Vec)obj;
        return x == o.x && y == o.y;
    }

    public override int GetHashCode()
    {
        return x.GetHashCode() + y.GetHashCode();
    }

    public static Vec operator +(Vec2 a, Vec2 b)
    {
        return new Vec(a.x + b.x, a.y + b.y);
    }

    public static Vec operator *(Vec2 a, int n)
    {
        return new Vec(a.x * n, a.y * n);
    }

    public static Vec operator *(int n, Vec2 a)
    {
        return new Vec(a.x * n, a.y * n);
    }

    public static bool operator ==(Vec a, Vec2 b)
    {
        return a.x == b.x && a.y == b.y;
    }

    public static bool operator !=(Vec a, Vec2 b)
    {
        return !(a.x == b.x && a.y == b.y);
    }
}

public enum EDir
{
    Up =,
    Down =,
    Left =,
    Right =,
    UpLeft =,
    UpRight =,
    DownLeft =,
    DownRight =,
}

public class AstarFindPath
{
    public class Node
    {
        public int id;
        public Vec pos;
        public float g;
        public float h;
        public float f;
        public Vec prePos;
        public bool hasPrePos;

        public Node(Vec pos)
        {
            this.pos = pos;
        }

        public void SetPrePos(Vec pos)
        {
            prePos = pos;
            hasPrePos = true;
        }
    }

    public abstract class EvaPol
    {
        abstract public float Calc(Vec a, Vec2 b);
    }

    public class MANEvaPol : EvaPol
    {
        override public float Calc(Vec a, Vec2 b)
        {
            return Mathf.Abs(a.x - b.x) + Mathf.Abs(a.y - b.y);
        }
    }

    public abstract class CheckDirPol
    {
        abstract public Dictionary<EDir, Vec> GetDir();
    }

    public class CheckDirPol : CheckDirPol
    {
        private Dictionary<EDir, Vec> dirDict = new Dictionary<EDir, Vec2>
        {
            {EDir.Up, new Vec(0, 1) },
            {EDir.Down, new Vec(0, -1) },
            {EDir.Left, new Vec(-1, 0) },
            {EDir.Right, new Vec(1, 0) },
        };
        override public Dictionary<EDir, Vec> GetDir()
        {
            return dirDict;
        }
    }

    public class CheckDirPol : CheckDirPol
    {
        private Dictionary<EDir, Vec> dirDict = new Dictionary<EDir, Vec2>
        {
            {EDir.Up, new Vec(0, 1) },
            {EDir.Down, new Vec(0, -1) },
            {EDir.Left, new Vec(-1, 0) },
            {EDir.Right, new Vec(1, 0) },
            {EDir.UpLeft, new Vec(-1, 1) },
            {EDir.UpRight, new Vec(1, 1) },
            {EDir.DownLeft, new Vec(-1, -1) },
            {EDir.DownRight, new Vec(1, -1) },

        };
        override public Dictionary<EDir, Vec> GetDir()
        {
            return dirDict;
        }
    }

    public struct Context
    {
        public Vec end;
        public Vec start;
        public Node[,] nodes;
        public List<Node> open;
        public List<Node> close;
        public int[,] map;
        public List<Vec> result;
        public Vec size;
    }

    Context context;
    EvaPol disPol;
    CheckDirPol checkDirPol;

    public void Init(Vec start, Vec2 end, int[,] map)
    {
        var x = map.GetLength();
        var y = map.GetLength();
        context = new Context()
        {
            start = start,
            end = end,
            open = new List<Node>(),
            close = new List<Node>(),
            map = map,
            result = new List<Vec>(),
            size = new Vec(x, y),
        };

        context.nodes = new Node[x, y];
        for (int i =; i < x; i++)
            for (int j =; j < x; j++)
                context.nodes[i, j] = new Node(new Vec(i, j));

        disPol = new MANEvaPol();
        //checkDirPol = new CheckDirPol();
        checkDirPol = new CheckDirPol();
    }

    public void FindPath()
    {
        var s = context.start;
        var sn = context.nodes[s.x, s.y];
        sn.g =;
        sn.h = disPol.Calc(s, context.end);
        sn.f = sn.g + sn.h;
        context.open.Add(sn);

        FindArrangement(sn);
    }

    public List<Vec> GetResult()
    {
        return context.result;
    }

    void FindArrangement(Node node)
    {
        context.close.Add(node);
        context.open.Remove(node);

        if (node.pos == context.end)
        {
            SetResult(node);
            return;
        }

        CheckRound(node);
        if (context.open.Count ==)
            return;

        Node next = context.open[];
        for (int i =; i < context.open.Count; i++)
            if (context.open[i].f < next.f)
                next = context.open[i];

        FindArrangement(next);
    }

    void SetResult(Node node)
    {
        Queue<Node> q = new Queue<Node>();
        while(node.hasPrePos)
        {
            q.Enqueue(node);
            node = context.nodes[node.prePos.x, node.prePos.y];
        }
        while(q.Count >)
        {
            context.result.Add(q.Dequeue().pos);
        }
    }

    void CheckRound(Node node)
    {
        var dirDict = checkDirPol.GetDir();
        foreach (var pair in dirDict)
        {
            var dir = node.pos + pair.Value;

            if (IsBlock(dir))
                continue;
            var dn = context.nodes[dir.x, dir.y];

            if (context.close.Contains(dn))
                continue;

            if (context.open.Contains(dn))
                TryOverridePath(node, dn);
            else
            {
                dn.g = disPol.Calc(dn.pos, context.start);
                dn.h = disPol.Calc(dn.pos, context.end);
                dn.f = dn.g + dn.h;
                dn.SetPrePos(node.pos);
                context.open.Add(dn);
            }
        }
    }

    void TryOverridePath(Node a, Node b)
    {
        var g = a.g + disPol.Calc(a.pos, b.pos);
        if (g < b.g)
        {
            b.g = g;
            b.SetPrePos(a.pos);
        }
    }

    bool IsBlock(Vec pos)
    {
        return !InMap(pos) || context.map[pos.x, pos.y] ==;
    }

    bool InMap(Vec pos)
    {
        var x = pos.x;
        var y = pos.y;
        var size = context.size;
        return x >= && x < size.x && y >= 0 && y < size.y;
    }
}
