Vue echarts实例项目地区销量趋势堆叠折线图实现详解

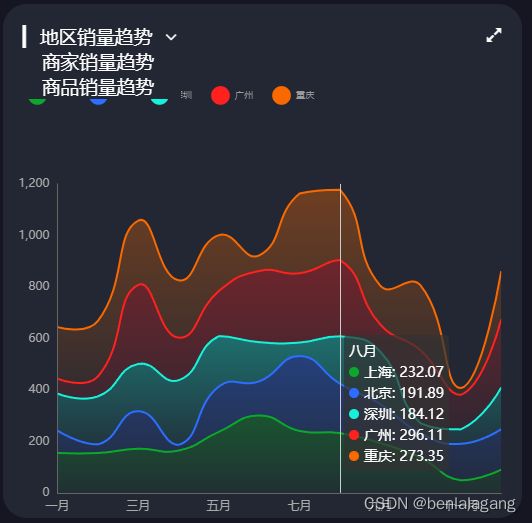

最终效果如图

组件结构设计

外部 Trendpage.vue


<!--针对于/trendpage 这条路径显示 测试显示组件-->
<template>
  <div class="comP1">
    <Trend></Trend>
  </div>
</template>
<script>
  import Trend from "@/components/Trend";
  export default {
    name: "TrendPage",
    components:{Trend}
  }
</script>
<style scoped>
</style>

内部Trend.vue


<!-- 显示地区销量趋势的折线图表 -->
<template>
<div class="comP2" ref="trend_1"></div>
</template>
<script>
export default {
data () {
return {}
},
methods: {}
}
</script>
<style lang="less" scoped>
</style>

初始化图表+数据的获取+更新图表

设置好这些函数在mounted生命周期内调用


    mounted() {
      // 渲染DOM元素之后 初始化图表实例 请求数据 监听页面尺寸变化
      this.initChart()
       this.getData()  // 请求数据
      // 监听图表尺寸发生变化时的 处理函数   自适应尺寸
      window.addEventListener('resize',this.screenAdapter)
      this.screenAdapter()
    },

找到盒子初始化图表、这里只是简单设置的直角坐标系


      initChart(){
        this.chartInstance = this.$echarts.init(this.$refs.trend_1,this.theme)
        const initOption = {
          grid:{
            left:'3%',
            top:'35%',
            right:'4%',
            bottom:'1%',
            containLabel:true
          },
          tooltip:{ // 鼠标悬浮时的提示框
            trigger:'axis'
          },
          legend:{
            left: 20,
            top: '15%',
            icon:'circle'
          },
          xAxis: {
            type:'category',
            boundaryGap:false // 紧贴两侧边缘
          },
          yAxis:{
            type:'value'
          }
        }
        this.chartInstance.setOption(initOption)
      },

发送请求、获取数据


      getData(){
        const {data:res} = await this.$http.get('trend')
        this.allData = res
        this.updateChart()
      },

请求过来的数据：


{
    "map": {
        "title": "地区销量趋势",
        "base": 310,
        "unit": "万",
        "data": [{
            "name": "上海",
            "data": ["155.13","154.65","171.46","164.38","237.23","300.65","240.29","232.07","193.31","136.70","48.64","90.20"]
        }, {
            "name": "北京",
            "data": ["86.25","33.80","145.58","21.79","176.09","132.41","291.05","191.89","151.54","94.25","141.75","157.14"]
        }, {
            "name": "深圳",
            "data": ["143.94","186.29","183.64","251.48","195.48","152.16","52.47","184.12","203.79","39.16","56.37","161.64"]
        }, {
            "name": "广州",
            "data": ["57.60","77.61","307.24","165.05","175.41","276.88","269.04","296.11","105.31","283.39","134.08","265.38"]
        }, {
            "name": "重庆",
            "data": ["200.82","215.56","249.80","222.67","216.98","60.12","309.68","273.35","150.99","251.97","26.15","186.99"]
        }]
    },
    "seller": {
        "title": "商家销量趋势",
        "base": 120,
        "unit": "万",
        "data": [{
            "name": "商家1",
            "data": ["33.00","86.07","28.77","34.29","102.45","0.30","50.50","21.70","25.41","25.71","66.90","63.29"]
        }, {
            "name": "商家2",
            "data": ["12.83","102.42","37.37","95.55","45.45","112.72","113.53","106.41","75.67","113.91", "37.32", "28.04"]
        }, {
            "name": "商家3",
            "data": ["73.54","40.92","89.81","113.41","76.34","107.15","55.61","0.33","106.29","78.30","98.05","38.67"]
        }, {
            "name": "商家4",
            "data": ["47.19","73.57","44.60","84.03","62.82","15.65","64.72","88.98","29.25","5.41","79.11","118.46"]
        }, {
            "name": "商家5",
            "data": ["74.84","116.45","107.69","11.03","17.31","42.22","97.60","108.64","43.87","110.65","5.96","38.41"]
        }]
    },
    "commodity": {
        "title": "商品销量趋势",
        "base": 50,
        "unit": "万",
        "data": [{
            "name": "女装",
            "data": ["47.71","13.34","19.30","7.93","41.93","23.01","22.63","26.91","0.62","39.23","48.74","29.48"]
        }, {
            "name": "手机数码",
            "data": ["46.66","46.52","23.65","1.73","44.26","47.07","17.86","40.20","3.78","31.46","28.01","8.63"]
        }, {
            "name": "男装",
            "data": ["26.98","30.71","42.59","29.50","26.86","17.65","30.15","15.85","9.28","30.20","32.35","34.46"]
        }, {
            "name": "大家电",
            "data": ["20.26","46.23","43.84","46.75","28.29","32.36","45.30","16.73","40.40","45.07","29.86","41.92"]
        }, {
            "name": "美妆护肤",
            "data": ["7.58","23.66","39.78","30.20","25.72","36.20","47.55","35.39","27.85","37.56","16.91", "3.91"]
        }]
    },
    "common": {
        "month": ["一月", "二月", "三月", "四月", "五月", "六月", "七月", "八月", "九月", "十月", "十一月", "十二月"]
    },
    "type": [{
        "key": "map",
        "text": "地区销量趋势"
    }, {
        "key": "seller",
        "text": "商家销量趋势"
    }, {
        "key": "commodity",
        "text": "商品销量趋势"
    }]
}

数据请求过来后在进行相应处理渲染图表

data中预留的变量：


data(){
  return{
    chartInstance:null,// 预留初始化实例对象
    allData:null, // 服务器请求过来的数据
    showChoice:false, // 是否显示可选项
    choiceType:'map', // 显示的数据类型
    titleFontSize:0 // 指明标题的字体
  }
},

1.准备好两个数组颜色透明度 0.5 ->0.1

2.抽取时间轴的数据

3.抽取组合 series 系列的数组

4.抽取 legend 分类提示

5.重新生成 option 调用 setOption 渲染图表


      updateChart(){
        // 数据更新时 重新渲染
        // 预设半透明颜色的值
        const colorArr1 = [
          'rgba(11,168,44,0.5)',
          'rgba(44,110,255,0.5)',
          'rgba(22,242,217,0.5)',
          'rgba(254,33,30,0.5)',
          'rgba(250,105,0,0.5)'
        ]
        // 预设全透明颜色的值
        const colorArr2 = [
          'rgba(11,168,44,0.1)',
          'rgba(44,110,255,0.1)',
          'rgba(22,242,217,0.1)',
          'rgba(254,33,30,0.1)',
          'rgba(250,105,0,0.1)'
        ]
        // 处理请求过来的 this.allData 数据 直接用变量 导进设置中
        const timeArr = this.allData.common.month // 类目轴的月份
        const valueArr = this.allData[this.choiceType].data // 数值轴的数据
        const seriesArr = valueArr.map((item,index) => {
          return {
            type:'line', // 类型是折线图
            data:item.data, // 数据是每一项的data
            stack:this.choiceType, // 设置成堆叠图一样的字符串就可以
            name:item.name, // 每一项的提示 name
            // 每一项面积颜色的设置 运用到 上面定义的两个数组
            areaStyle:{
              color:new this.$echarts.graphic.LinearGradient(0,0,0,1,[
                {
                  offset:0,
                  color:colorArr1[index]
                },
                {
                  offset:1,
                  color:colorArr2[index]
                }
              ])
            }
          }
        })
        const legendArr = valueArr.map(item => {
          return item.name
        })
        const dataOption = {
          xAxis: {
            data:timeArr
          },
          legend:{
            data:legendArr
          },
          series:seriesArr
        }
        this.chartInstance.setOption(dataOption)
      },

尺寸变化的适配-第三篇文章已经详细讲过


      screenAdapter(){
        // 页面分辨率发生改变时 重新渲染
        this.titleFontSize = this.$refs.trend_1.offsetWidth / 100 * 3.6
        const adapterOption = {
          // legend 是提示类目的文字 可以总的设置 也可以在单独的 series 里设置
          legend: {
            itemWidth: this.titleFontSize,
            itemHeight: this.titleFontSize,
            itemGap: this.titleFontSize,
            textStyle: {
              fontSize: this.titleFontSize / 2
            }
          }
        }
        this.chartInstance.setOption(adapterOption)
        this.chartInstance.resize()
      },

标题显示以及对于数据的切换操作

请求过来的数据当中有三种类型 map seller commodity 默认是 map

在template 当中添加标题选择模块附加一定的样式使得标题显示在对应的位置

整体的位置由title 样式决定动态样式 comStyle 会随着窗口变化和主题切换而改动
showTitle 根据this.choiceType 动态决定标题
icon-font 字体图标小箭头点击切换下拉标题的选择
v-for 渲染下拉标题过滤掉当前选择的标题
为每一小项添加点击事件传入对应的key 更新this.choiceType 后重新渲染图标并隐藏下拉


<template>
  <div class="comP3">
    <div class="title" :style="comStyle">
      <span>{{'▎ ' + showTitle}}</span>
      <span class="iconfont title-icon" :style="comStyle" @click="showChoice = !showChoice">&#xe6eb;</span>
      <div class="select-con"
           :style="theme === 'chalk' ? 'background-color: #222733;' : 'background-color: #ffffff;'"
           v-show="showChoice">
        <div class="select-item" :style="marginStyle" v-for="item in selectTypes" :key="item.key" @click="handleSelect(item.key)">
          {{item.text}}
        </div>
      </div>
    </div>
    <div class="comP2" ref="trend_1"></div>
  </div>
</template>
<style scoped lang="less">
  .title {
    position: absolute;
    left: 20px;
    top: 20px;
    z-index: 10;
    cursor: pointer;
    user-select: none;
    color: white;
  .title-icon {
    margin-left: 10px;
  }
  .select-con {
    /*background-color: #222733;*/
  }
  }
</style>

与之对应的计算属性和方法：


    computed:{
      ...mapState(['theme']),
      // 准备遍历选项的 元数据
      selectTypes(){
        if (!this.allData){
          return []
        }else {
          return this.allData.type.filter(item =>{
            return item.key !== this.choiceType
          })
        }
      },
      // 显示当前选中的标题
      showTitle(){
        if(!this.allData){
          return ''
        }else {
          return this.allData[this.choiceType].title
        }
      },
      // 设置给标题的样式
      comStyle(){
        return `font-size:${this.titleFontSize}px;color:${getThemeValue(this.theme).titleColor}`
      },
      marginStyle(){
        return `padding-left:${this.titleFontSize}px`
      },
    },
methods:{
      handleSelect(currentType){
        this.choiceType = currentType
        this.updateChart()
        this.showChoice = false
      }
}

	<!--针对于/trendpage 这条路径显示测试显示组件-->
	<template>
	<div class="comP1">
	<Trend></Trend>
	</div>
	</template>
	<script>
	import Trend from "@/components/Trend";
	export default {
	name: "TrendPage",
	components:{Trend}
	}
	</script>
	<style scoped>
	</style>

	<!-- 显示地区销量趋势的折线图表 -->
	<template>
	<div class="comP2" ref="trend_1"></div>
	</template>
	<script>
	export default {
	data () {
	return {}
	},
	methods: {}
	}
	</script>
	<style lang="less" scoped>
	</style>

	mounted() {
	// 渲染DOM元素之后初始化图表实例请求数据监听页面尺寸变化
	this.initChart()
	this.getData() // 请求数据
	// 监听图表尺寸发生变化时的处理函数自适应尺寸
	window.addEventListener('resize',this.screenAdapter)
	this.screenAdapter()
	},

	initChart(){
	this.chartInstance = this.$echarts.init(this.$refs.trend_1,this.theme)
	const initOption = {
	grid:{
	left:'3%',
	top:'35%',
	right:'4%',
	bottom:'1%',
	containLabel:true
	},
	tooltip:{ // 鼠标悬浮时的提示框
	trigger:'axis'
	},
	legend:{
	left: 20,
	top: '15%',
	icon:'circle'
	},
	xAxis: {
	type:'category',
	boundaryGap:false // 紧贴两侧边缘
	},
	yAxis:{
	type:'value'
	}
	}
	this.chartInstance.setOption(initOption)
	},

	getData(){
	const {data:res} = await this.$http.get('trend')
	this.allData = res
	this.updateChart()
	},

	{
	"map": {
	"title": "地区销量趋势",
	"base": 310,
	"unit": "万",
	"data": [{
	"name": "上海",
	"data": ["155.13","154.65","171.46","164.38","237.23","300.65","240.29","232.07","193.31","136.70","48.64","90.20"]
	}, {
	"name": "北京",
	"data": ["86.25","33.80","145.58","21.79","176.09","132.41","291.05","191.89","151.54","94.25","141.75","157.14"]
	}, {
	"name": "深圳",
	"data": ["143.94","186.29","183.64","251.48","195.48","152.16","52.47","184.12","203.79","39.16","56.37","161.64"]
	}, {
	"name": "广州",
	"data": ["57.60","77.61","307.24","165.05","175.41","276.88","269.04","296.11","105.31","283.39","134.08","265.38"]
	}, {
	"name": "重庆",
	"data": ["200.82","215.56","249.80","222.67","216.98","60.12","309.68","273.35","150.99","251.97","26.15","186.99"]
	}]
	},
	"seller": {
	"title": "商家销量趋势",
	"base": 120,
	"unit": "万",
	"data": [{
	"name": "商家1",
	"data": ["33.00","86.07","28.77","34.29","102.45","0.30","50.50","21.70","25.41","25.71","66.90","63.29"]
	}, {
	"name": "商家2",
	"data": ["12.83","102.42","37.37","95.55","45.45","112.72","113.53","106.41","75.67","113.91", "37.32", "28.04"]
	}, {
	"name": "商家3",
	"data": ["73.54","40.92","89.81","113.41","76.34","107.15","55.61","0.33","106.29","78.30","98.05","38.67"]
	}, {
	"name": "商家4",
	"data": ["47.19","73.57","44.60","84.03","62.82","15.65","64.72","88.98","29.25","5.41","79.11","118.46"]
	}, {
	"name": "商家5",
	"data": ["74.84","116.45","107.69","11.03","17.31","42.22","97.60","108.64","43.87","110.65","5.96","38.41"]
	}]
	},
	"commodity": {
	"title": "商品销量趋势",
	"base": 50,
	"unit": "万",
	"data": [{
	"name": "女装",
	"data": ["47.71","13.34","19.30","7.93","41.93","23.01","22.63","26.91","0.62","39.23","48.74","29.48"]
	}, {
	"name": "手机数码",
	"data": ["46.66","46.52","23.65","1.73","44.26","47.07","17.86","40.20","3.78","31.46","28.01","8.63"]
	}, {
	"name": "男装",
	"data": ["26.98","30.71","42.59","29.50","26.86","17.65","30.15","15.85","9.28","30.20","32.35","34.46"]
	}, {
	"name": "大家电",
	"data": ["20.26","46.23","43.84","46.75","28.29","32.36","45.30","16.73","40.40","45.07","29.86","41.92"]
	}, {
	"name": "美妆护肤",
	"data": ["7.58","23.66","39.78","30.20","25.72","36.20","47.55","35.39","27.85","37.56","16.91", "3.91"]
	}]
	},
	"common": {
	"month": ["一月", "二月", "三月", "四月", "五月", "六月", "七月", "八月", "九月", "十月", "十一月", "十二月"]
	},
	"type": [{
	"key": "map",
	"text": "地区销量趋势"
	}, {
	"key": "seller",
	"text": "商家销量趋势"
	}, {
	"key": "commodity",
	"text": "商品销量趋势"
	}]
	}

	data(){
	return{
	chartInstance:null,// 预留初始化实例对象
	allData:null, // 服务器请求过来的数据
	showChoice:false, // 是否显示可选项
	choiceType:'map', // 显示的数据类型
	titleFontSize:0 // 指明标题的字体
	}
	},

	updateChart(){
	// 数据更新时重新渲染
	// 预设半透明颜色的值
	const colorArr1 = [
	'rgba(11,168,44,0.5)',
	'rgba(44,110,255,0.5)',
	'rgba(22,242,217,0.5)',
	'rgba(254,33,30,0.5)',
	'rgba(250,105,0,0.5)'
	]
	// 预设全透明颜色的值
	const colorArr2 = [
	'rgba(11,168,44,0.1)',
	'rgba(44,110,255,0.1)',
	'rgba(22,242,217,0.1)',
	'rgba(254,33,30,0.1)',
	'rgba(250,105,0,0.1)'
	]
	// 处理请求过来的 this.allData 数据直接用变量导进设置中
	const timeArr = this.allData.common.month // 类目轴的月份
	const valueArr = this.allData[this.choiceType].data // 数值轴的数据
	const seriesArr = valueArr.map((item,index) => {
	return {
	type:'line', // 类型是折线图
	data:item.data, // 数据是每一项的data
	stack:this.choiceType, // 设置成堆叠图一样的字符串就可以
	name:item.name, // 每一项的提示 name
	// 每一项面积颜色的设置运用到上面定义的两个数组
	areaStyle:{
	color:new this.$echarts.graphic.LinearGradient(0,0,0,1,[
	{
	offset:0,
	color:colorArr1[index]
	},
	{
	offset:1,
	color:colorArr2[index]
	}
	])
	}
	}
	})
	const legendArr = valueArr.map(item => {
	return item.name
	})
	const dataOption = {
	xAxis: {
	data:timeArr
	},
	legend:{
	data:legendArr
	},
	series:seriesArr
	}
	this.chartInstance.setOption(dataOption)
	},

	screenAdapter(){
	// 页面分辨率发生改变时重新渲染
	this.titleFontSize = this.$refs.trend_1.offsetWidth / 100 * 3.6
	const adapterOption = {
	// legend 是提示类目的文字可以总的设置也可以在单独的 series 里设置
	legend: {
	itemWidth: this.titleFontSize,
	itemHeight: this.titleFontSize,
	itemGap: this.titleFontSize,
	textStyle: {
	fontSize: this.titleFontSize / 2
	}
	}
	}
	this.chartInstance.setOption(adapterOption)
	this.chartInstance.resize()
	},

	<template>
	<div class="comP3">
	<div class="title" :style="comStyle">
	<span>{{'▎ ' + showTitle}}</span>
	<span class="iconfont title-icon" :style="comStyle" @click="showChoice = !showChoice"></span>
	<div class="select-con"
	:style="theme === 'chalk' ? 'background-color: #222733;' : 'background-color: #ffffff;'"
	v-show="showChoice">
	<div class="select-item" :style="marginStyle" v-for="item in selectTypes" :key="item.key" @click="handleSelect(item.key)">
	{{item.text}}
	</div>
	</div>
	</div>
	<div class="comP2" ref="trend_1"></div>
	</div>
	</template>
	<style scoped lang="less">
	.title {
	position: absolute;
	left: 20px;
	top: 20px;
	z-index: 10;
	cursor: pointer;
	user-select: none;
	color: white;
	.title-icon {
	margin-left: 10px;
	}
	.select-con {
	/background-color: #222733;/
	}
	}
	</style>

	computed:{
	...mapState(['theme']),
	// 准备遍历选项的元数据
	selectTypes(){
	if (!this.allData){
	return []
	}else {
	return this.allData.type.filter(item =>{
	return item.key !== this.choiceType
	})
	}
	},
	// 显示当前选中的标题
	showTitle(){
	if(!this.allData){
	return ''
	}else {
	return this.allData[this.choiceType].title
	}
	},
	// 设置给标题的样式
	comStyle(){
	return `font-size:${this.titleFontSize}px;color:${getThemeValue(this.theme).titleColor}`
	},
	marginStyle(){
	return `padding-left:${this.titleFontSize}px`
	},
	},
	methods:{
	handleSelect(currentType){
	this.choiceType = currentType
	this.updateChart()
	this.showChoice = false
	}
	}
