目录

• 一、需求描述
• 二、界面展示
• 三、代码实现

一、需求描述

前段时间接到一个需求是做一个类似接口文档的显示功能，将一段json数据贴到里面就可以自动解析出json数据的每个字段的类型和层级关系，用element组件的树表格的形式展示，并且可以手动新增、修改和删除某个数据字段。

二、界面展示

功能如下图所示：

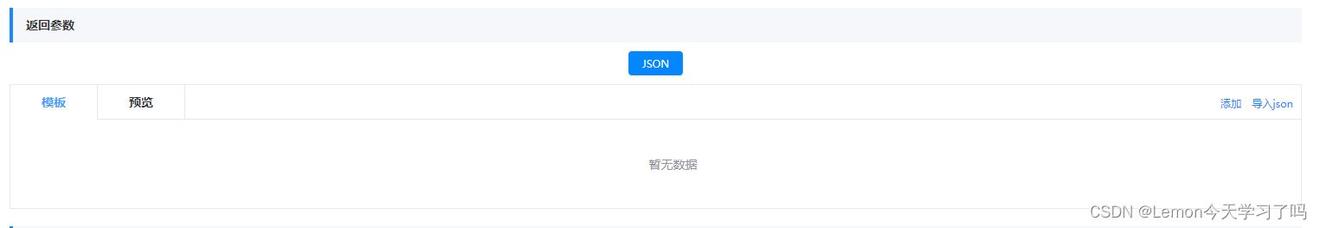

1.未贴数据之前：

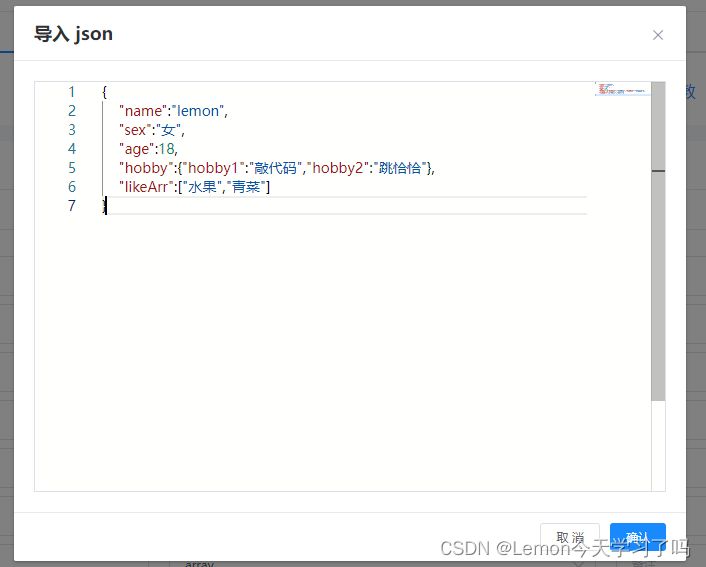

2.点击右上角的‘导入json'，在打开的弹框中贴入如下json数据：{"name":"lemon","sex":"女","age":18,"hobby":{"hobby1":"敲代码","hobby2":"跳恰恰"},"likeArr":["水果","青菜"]}

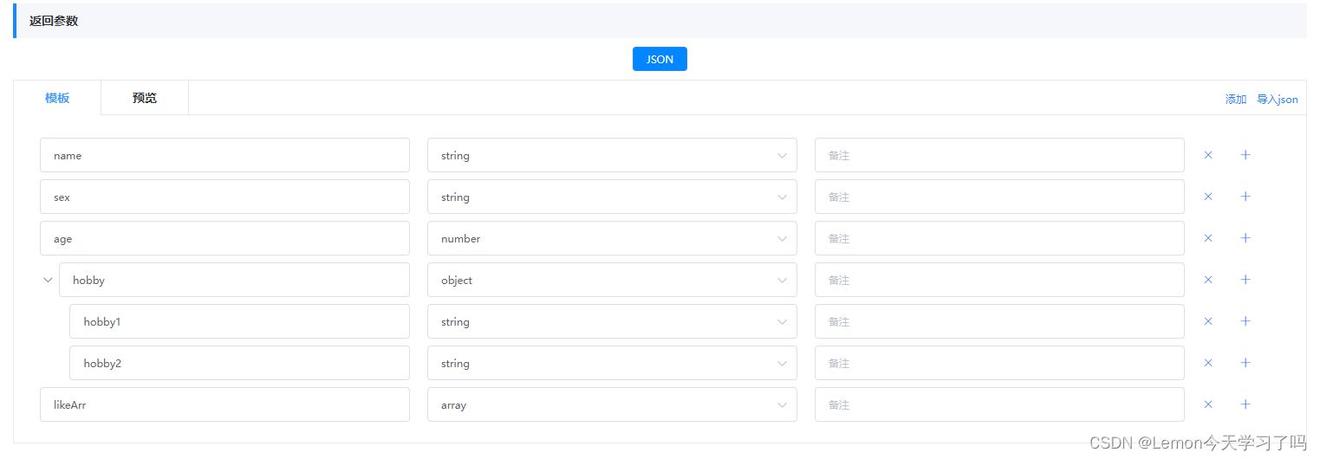

3.点击确认后树表格自动展示贴入的json数据，如下图所示；

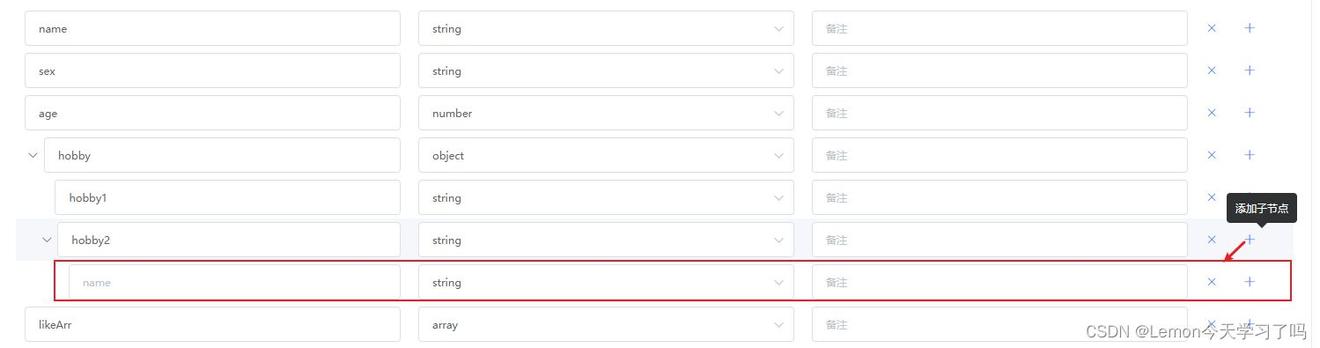

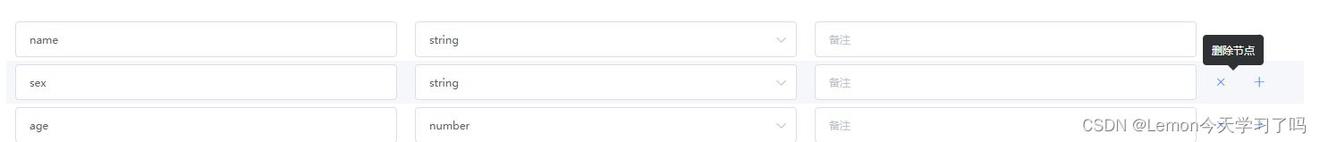

4.点击每行的最右侧可以进行新增和删除操作；

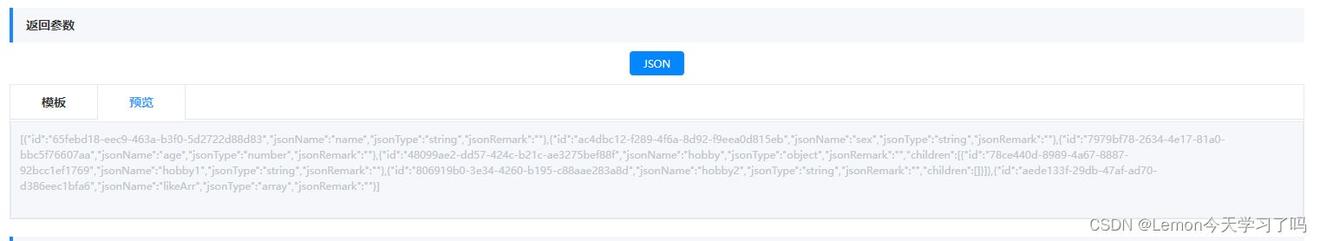

5.点击tab切换到预览展示效果：

三、代码实现

弹框代码展示，新建一个jsonDialog.vue文件，MonacoEditor是一个json编辑器，实现以下代码：

<template>
  <el-dialog
    title="导入 json"
    :visible.sync="dialogFormVisible"
    :close-on-click-modal="false"
    :modal-append-to-body="false"
    width="%"
    @close="close"
    class="my_dialog"
  >
    <div class="empi_dialog_form">
      <!-- 返回 -->
      <div v-if="type == 'resp'">
        <monaco-editor v-model="jsonData" language="json" :readOnly="false"></monaco-editor>
      </div>
    </div>
    <span slot="footer" class="dialog-footer">
      <el-button @click="close">取 消</el-button>
      <el-button type="primary" @click="onSubmit()">确认</el-button>
    </span>
  </el-dialog>
</template>
<script>
export default {
  components: {
    MonacoEditor: () => import('@/components/MonacoEditor')
  },
  data() {
    return {
      dialogFormVisible: false,
      jsonData: null, //返回参数
    }
  },
  methods: {
    open() {
      this.dialogFormVisible = true
    },
    close() {
      this.dialogFormVisible = false
      this.jsonData = ''
    },
    // 提交
    onSubmit() {
      if (!this.jsonData) return this.$message.error('json数据不能为空')
      let flag = this.checkJson(data)
      if (flag) {
        this.dialogFormVisible = false
        this.$emit('getJson', data)
      } else {
        return this.$message.error('json数据格式不正确')
      }
    },
    // 判断是否是json格式
    checkJson(str) {
      if (typeof str == 'string') {
        try {
          let obj = JSON.parse(str)
          if (typeof obj == 'object' && obj) {
            return true
          } else {
            return false
          }
        } catch (e) {
          //console.log('error：' + str + '!!!' + e)
          return false
        }
      }
      //console.log('It is not a string!')
    }
  }
}
</script>

界面代码展示，新建一个jsonIndex.vue界面，实现以下代码：

<!-- 返回数据设置 -->
<div class="panel-item">
    <div class="panel-item-title">返回参数</div>
    <el-radio-group v-model="checkRespLabel"
        size="mini" class="radio_btn_group">
        <el-radio-button label="JSON">
        </el-radio-button>
    </el-radio-group>
    <div class="panel-item-tab">
        <div class="blue json-btn" v-show="activeTabName == 'first'" @click="addJsonClick('resp')" > 添加 </div>
        <div class="blue json-btn" v-show="activeTabName == 'first'" @click="toJsonClick('resp')"> 导入json </div>
        <el-tabs v-model="activeTabName" type="card" class="card-tab">
            <el-tab-pane label="模板" name="first">
                <el-table
                    :data="threeStepData.responseParams"
                    class="json-table"
                    :show-header="false"
                    :highlight-current-row="false"
                    row-key="id" size="medium"
                    default-expand-all
                    :tree-props="{children: 'children',hasChildren: 'hasChildren'}">
                    <el-table-column label="参数名称">
                        <template slot-scope="scopes">
                            <el-input placeholder="name" v-model="scopes.row.jsonName">
                            </el-input>
                        </template>
                    </el-table-column>
                    <el-table-column label="参数类型">
                        <template slot-scope="scopes">
                            <el-select v-model="scopes.row.jsonType" placeholder="type">
                                <el-option
                                    v-for="item in typeData"
                                    :key="item.value"
                                    :label="item.label"
                                    :value="item.value">
                                </el-option>
                            </el-select>
                        </template>
                    </el-table-column>
                    <el-table-column label="备注">
                        <template slot-scope="scopes">
                            <el-input placeholder="备注" v-model="scopes.row.jsonRemark">
                            </el-input>
                        </template>
                    </el-table-column>
                    <el-table-column label="操作" width="">
                        <template slot-scope="scopes">
                            <el-tooltip
                                class="item"
                                effect="dark"
                                content="删除节点"
                                placement="top" :open-delay="">
                                <i class="blue el-icon-close" @click="removeJsonClick(scopes.row, 'resp')"></i>
                            </el-tooltip>
                            <el-tooltip
                                class="item"
                                effect="dark"
                                content="添加子节点"
                                placement="top" :open-delay="">
                                <i class="blue el-icon-plus" @click="addJsonChildrenClick(scopes.row, 'resp')"></i>
                            </el-tooltip>
                        </template>
                    </el-table-column>
                </el-table>
            </el-tab-pane>
            <el-tab-pane label="预览" name="second">
                <div class="panel-item-content">
                    <el-input type="textarea" disabled :rows="" v-model="strParams">
                    </el-input>
                </div>
            </el-tab-pane>
        </el-tabs>
    </div>
  </div>
//弹框
<jsonDialog ref="jsonDialog" @getJson="getJson"></jsonDialog>

展示界面的功能代码，对导入json的展示及相关操作的实现：

<script>
export default {
    components: {
        MonacoEditor: () => import('@/components/MonacoEditor'),
        jsonDialog: () => import('./../dialog/jsonDialog')
    },
     data() {
        return {
            threeStepData: {
                responseParams: [
                    // {
                    //     id:,
                    //     jsonName: 'root',
                    //     jsonType: 'object',
                    //     jsonRemark: '备注',
                    //     pid:,
                    //     children: []
                    // }
                ]
            },
            checkRespLabel: 'JSON',
            activeTabName: 'first',
            typeData: [
                { label: 'string', value: 'string' },
                { label: 'number', value: 'number' },
                { label: 'array', value: 'array' },
                { label: 'object', value: 'object' },
                { label: 'boolean', value: 'boolean' }
            ]
        }
    },
    computed: {
        strParams() {
            return this.threeStepData?.responseParams
                ? JSON.stringify(this.threeStepData.responseParams)
                : '-'
        },
    },
    methods: {
        open(data) {
            this.threeStepData = data
        },
        // 导入json
        toJsonClick(type) {
            this.$refs.jsonDialog.open(type)
        },
        // 生成唯一id
        guid() {
            return 'xxxxxxxx-xxxx-xxx-yxxx-xxxxxxxxxxxx'.replace(
                /[xy]/g,
                function (c) {
                    let r = (Math.random() *) | 0,
                        v = c == 'x' ? r : (r &x3) | 0x8
                    return v.toString()
                }
            )
        },
        // 获取json导入数据
        getJson(data, type) {
            let _data = JSON.parse(data)
            let _type = this.getJsonType(_data)
            let arr = []
            if (_type === 'object') {
                arr = this.handleJson(_data)
            }
            if (type == 'resq') {
                this.threeStepData.responseParams = arr
                // this.threeStepData.responseParams[].children = arr
            }
        },
        // json导入数据转换
        handleJson(data) {
            let arr = []
            Object.keys(data).map((key) => {
                let _type = this.getJsonType(data[key])
                if (_type && _type == 'object') {
                    let children = this.handleJson(data[key])
                    arr.push({
                        id: this.guid(),
                        pid: data.id,
                        jsonName: key,
                        jsonType: _type,
                        jsonRemark: '',
                        children
                    })
                } else {
                    arr.push({
                        id: this.guid(),
                        jsonName: key,
                        jsonType: _type,
                        jsonRemark: ''
                    })
                }
            })
            return arr
        },
        // 判断数据类型
        getJsonType(data) {
            let type = Object.prototype.toString.call(data)
            if (type === '[object String]') {
                type = 'string'
            } else if (type === '[object Number]') {
                type = 'number'
            } else if (type === '[object Null]') {
                type = 'null'
            } else if (type === '[object Boolean]') {
                type = 'boolean'
            } else if (type === '[object Array]') {
                type = 'array'
            } else if (type === '[object Object]') {
                type = 'object'
            } else {
                type = '未进行判断的类型:' + type
            }
            return type
        },

        // 新增json数据
        addJsonClick(type) {
            if(type=='resp'){
                // if(this.threeStepData.responseParams?.length==){
                //     this.$message.closeAll();
                //     this.$message.error('请勿重复添加根节点！');
                //     return;
                // }
                let obj = {
                    id: this.guid(),
                    jsonName: '',
                    jsonType: 'object',
                    jsonRemark: '',
                    // pid:,
                    children: []
                }
                this.threeStepData.responseParams.push(obj)
            }
        },
        //添加子节点
        addJsonChildrenClick(data, type) {
            let obj = {
                id: this.guid(),
                jsonName: '',
                jsonType: 'string',
                jsonRemark: '',
                pid: data.id
            }
           let node = this.addNode(this.threeStepData.responseParams, data.id, obj)
           if (type === 'resp') {
                this.threeStepData.responseParams = JSON.parse(JSON.stringify(node))
            }
        },
        addNode(list, pid, obj) {
            list.forEach((e) => {
                if (e.id == pid) {
                    e.children ? e.children.push(obj) : (e.children = [obj])
                } else {
                    if (e.children && e.children.length >) {
                        this.addNode(e.children, pid, obj)
                    }
                }
            })
            return list
        },
        // 移除json数据
        removeJsonClick(data, type) {
            let objMap = {
                resp: this.threeStepData.responseParams,
            }
            let node = this.removeItem(objMap[type], data.id)
            if (type === 'resp') {
                this.threeStepData.responseParams = JSON.parse(JSON.stringify(node))
            }
        },
        removeItem(root, id) {
            root.forEach((e, i) => {
                if (e.id === id) {
                    root.splice(i,)
                } else if (e.children && e.children.length >) {
                    this.removeItem(e.children, id)
                }
            })
            return root
        }
    }
}
</script>

综上所述，已经完成了json数据的展示、修改和新增删除都已经完成，可能有些错误，欢迎大家指正~
