ElementUI的el-upload组件二次封装问题
开发工作中我们都会遇到图片上传的问题，虽说ElementUI已有提供图片上传的组件，但我们用到图片上传的地方肯定不止一处的，并且框架自带的组件并不能完全满足我们的需求，为此我对原有组件做了二次封装，做到一次封装，到处使用！
直接上代码：
组件
| **uploadImg.vue** | |
| <template> | |
| <div> | |
| <el-upload :disabled="idCardIsUpload" class="avatar-uploader" action="" list-type="picture" :show-file-list="false" :http-request="diyRequest"> | |
| <el-image v-if="idCardImgUrl" :src="idCardImgUrl" name="idCardImgUrl" class="avatar" @error="imgLoadError"></el-image> | |
| <el-progress style="margin: 5px;" :width='70' v-else-if="idCardIsUpload" type="circle" :percentage="idCardUploadPercentage"></el-progress> | |
| <div v-else class="div-plus"> | |
| <i class="el-icon-plus avatar-uploader-icon"></i> | |
| </div> | |
| </el-upload> | |
| </div> | |
| </template> | |
| <script> | |
| export default { | |
| data() { | |
| return { | |
| idCardImgUrl: '', | |
| idCardIsUpload: false, | |
| idCardUploadPercentage: 0, | |
| errorImgUrls: [], | |
| } | |
| }, | |
| props: { | |
| /*可以在使用组件的时候传入一个支持上传的图片格式的数组进来，不传默认default数组*/ | |
| supportType: {//支持上传文件的格式 | |
| default: () => ['image/jpeg', 'image/jpg', 'image/png'], | |
| type: Array | |
| } | |
| }, | |
| methods: { | |
| /*父组件执行的方法*/ | |
| setEditImg(path) { | |
| this.idCardImgUrl = path ? path : '' | |
| }, | |
| /*自定义上传的方法*/ | |
| diyRequest(param) { | |
| /*对上传图片的大小和格式校验*/ | |
| const isLt10M = param.file.size / 1024 / 1024 < 4 | |
| if (this.supportType.indexOf(param.file.type) == -1) { | |
| let supportType = this.supportType | |
| let msg = '' | |
| supportType.map(res => { | |
| msg += res.substring(6) + '/' | |
| }) | |
| let newMsg = msg.slice(0, (msg.length) - 1) | |
| this.$Message('error', `请上传正确的图片格式！支持的格式有：` + newMsg) | |
| return | |
| } | |
| if (!isLt10M) { | |
| this.$Message('error', '上传图片大小不能超过4MB哦!') | |
| return | |
| } | |
| const fileObj = param.file | |
| const form = new FormData() | |
| form.append('file', fileObj) | |
| let callback = (progress) => { | |
| this.idCardIsUpload = true | |
| this.idCardUploadPercentage = progress | |
| } | |
| /*走后台接口，这里自行换成自己的api*/ | |
| this.$api.addUploadImg(form, callback).then(res => { | |
| this.idCardIsUpload = false | |
| this.idCardUploadPercentage = 0 | |
| if (res.code == 200) { | |
| this.idCardImgUrl = res.data.basePath + res.data.url | |
| /*成功之后将图片路径暴露给父组件去显示图片*/ | |
| this.$emit('setCardPic', res.data.url) | |
| } else { | |
| this.$Message('error', res.message) | |
| } | |
| }) | |
| }, | |
| /*当图片显示失败的时候，我会重复10次赋值图片，成功显示就退出，还是失败就会显示失败*/ | |
| imgLoadError(error) { | |
| let isExist = false | |
| const src = error.path[0].src.split('?')[0] | |
| if (this.errorImgUrls.length == 0) { | |
| this.errorImgUrls.push({ 'src': src, 'number': 1 }) | |
| } | |
| for (let i = 0; i < this.errorImgUrls.length; i++) { | |
| if (src === this.errorImgUrls[i].src) { | |
| isExist = true | |
| while (this.errorImgUrls[i].number < 10) { | |
| console.log('我在重复赋值...') | |
| this.errorImgUrls[i].number++ | |
| const timestamp1 = Date.parse(new Date()) | |
| this[error.path[0].name] = src + '?t=' + timestamp1 | |
| } | |
| } | |
| } | |
| if (!isExist) {//首次上传（不在错误数组图片中，需要执行循环三次赋值） | |
| this.errorImgUrls.push({ 'src': src, 'number': 1 }) | |
| this.imgLoadError(error) | |
| } | |
| }, | |
| } | |
| } | |
| </script> | |
| <style lang="scss" scoped> | |
| .div-plus { | |
| width: 174px; | |
| height: 174px; | |
| display: flex; | |
| align-items: center; | |
| justify-content: center; | |
| } | |
| </style> | |
| <style lang="scss"> | |
| .avatar-uploader .el-upload { | |
| border: 1px dashed #d9d9d9; | |
| border-radius: 6px; | |
| cursor: pointer; | |
| position: relative; | |
| overflow: hidden; | |
| } | |
| .avatar-uploader .el-upload:hover { | |
| border-color: #409eff; | |
| } | |
| .avatar-uploader-icon { | |
| font-size: 28px; | |
| color: #8c939d; | |
| width: 120px; | |
| text-align: center; | |
| } | |
| .avatar { | |
| width: 120px; | |
| height: 120px; | |
| display: block; | |
| } | |
| </style> |
使用
| /*导入组件*/ | |
| import uploadImg from '@/components/uploadImg' | |
| /*组件注册*/ | |
| export default { | |
| components: { uploadImg }, | |
| data(){ | |
| imgpath: '', | |
| }, | |
| methods:{ | |
| /*执行uploadImg组件报出来的事件，path就是显示图片的路径*/ | |
| setCardPic(path, pic) { | |
| this.form[pic] = path | |
| }, | |
| /*详情的时候设定显示图片的路径 setEditImg是uploadImg组件提供的方法 imgpath是子组件的ref属性（看使用的组件）*/ | |
| this.$refs.imgpath.setEditImg('') | |
| } | |
| } | |
| <template> | |
| <el-form-item label="广告图片:" prop="imgpath"> | |
| <uploadImg @setCardPic="setCardPic($event,'imgpath')" ref="imgpath"></uploadImg> | |
| <span style="font-size: 12px;color: #606266;">只能上传jpg/png/jpeg文件，且不超过4MB</span> | |
| </el-form-item> | |
| </template> |

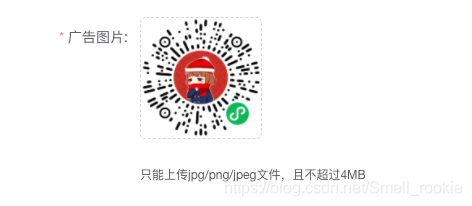

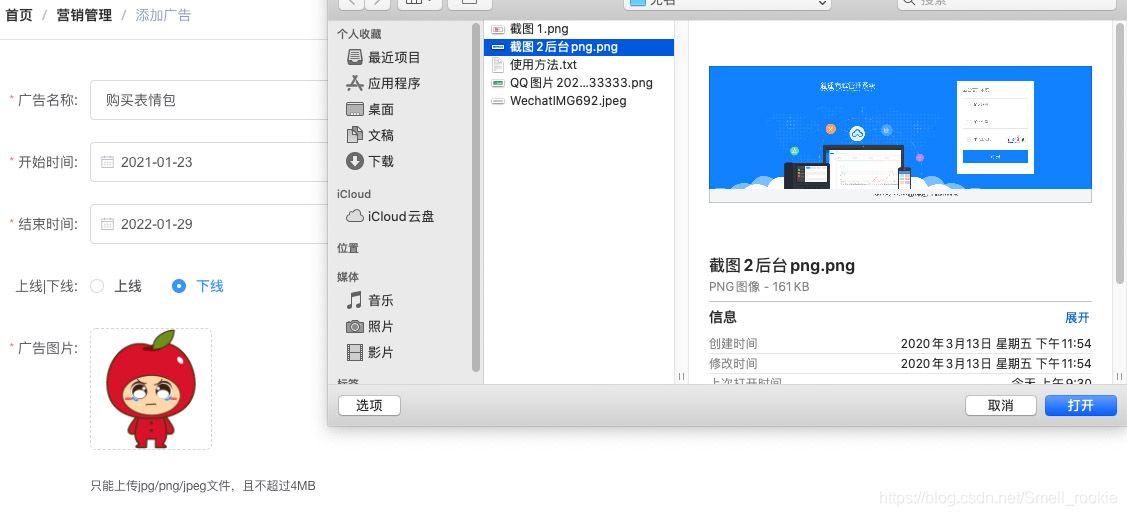

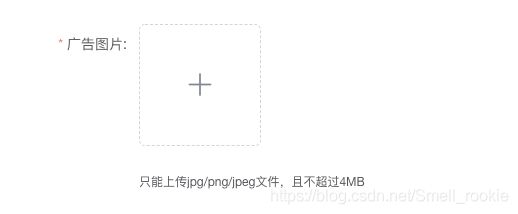

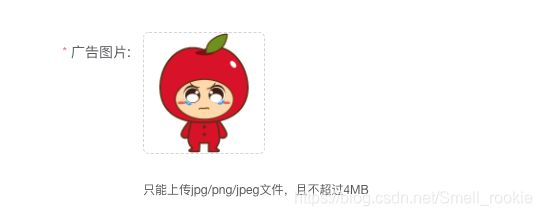

效果：
el-upload组件封装后更好用了
对el-upload进行了简单的二次封装，实现了图片上传后回显的预览大图和移除图片。
组件截图

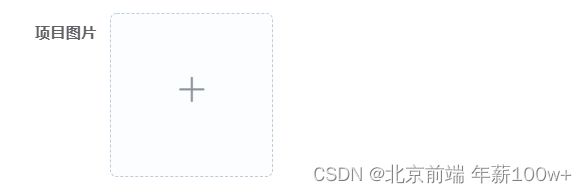

图片上传
图片的回显和操作
组件代码部分
| <template> | |
| <div class="component-upload-image"> | |
| <el-upload | |
| :action="uploadImgUrl" | |
| list-type="picture-card" | |
| :on-success="handleUploadSuccess" | |
| :before-upload="handleBeforeUpload" | |
| :on-error="handleUploadError" | |
| name="file" | |
| :show-file-list="false" | |
| :headers="headers" | |
| style="display: inline-block; vertical-align: top" | |
| > | |
| <el-image v-if="!value" :src="value"> | |
| <div slot="error" class="image-slot"> | |
| <i class="el-icon-plus" /> | |
| </div> | |
| </el-image> | |
| <div v-else class="image"> | |
| <el-image :src="value" :style="`width:150px;height:150px;`" fit="fill"/> | |
| <div class="mask"> | |
| <div class="actions"> | |
| <span title="预览" @click.stop="dialogVisible = true"> | |
| <i class="el-icon-zoom-in" /> | |
| </span> | |
| <span title="移除" @click.stop="removeImage"> | |
| <i class="el-icon-delete" /> | |
| </span> | |
| </div> | |
| </div> | |
| </div> | |
| </el-upload> | |
| <el-dialog :visible.sync="dialogVisible" title="预览" width="800" append-to-body> | |
| <img :src="value" style="display: block; max-width: 100%; margin: 0 auto;"> | |
| </el-dialog> | |
| </div> | |
| </template> | |
| <script> | |
| import { getToken } from "@/utils/auth"; | |
| export default { | |
| name:'ImageUpload', | |
| data() { | |
| return { | |
| dialogVisible: false, | |
| uploadImgUrl: process.env.VUE_APP_BASE_API + "/common/upload", // 上传的图片服务器地址 | |
| headers: { | |
| Authorization: "Bearer " + getToken(), | |
| }, | |
| }; | |
| }, | |
| props: { | |
| value: { | |
| type: String, | |
| default: "", | |
| }, | |
| }, | |
| methods: { | |
| removeImage() { | |
| this.$emit("input", ""); | |
| }, | |
| handleUploadSuccess(res) { | |
| this.$emit("input", res.url); | |
| this.loading.close(); | |
| }, | |
| handleBeforeUpload() { | |
| this.loading = this.$loading({ | |
| lock: true, | |
| text: "上传中", | |
| spinner: 'el-icon-loading', | |
| background: "rgba(0, 0, 0, 0.5)", | |
| customClass:'customClass' | |
| }); | |
| }, | |
| handleUploadError() { | |
| this.$message({ | |
| type: "error", | |
| message: "上传失败", | |
| }); | |
| this.loading.close(); | |
| }, | |
| }, | |
| watch: {}, | |
| }; | |
| </script> | |
| <style scoped lang="scss"> | |
| .image { | |
| position: relative; | |
| .mask { | |
| opacity: 0; | |
| position: absolute; | |
| top: 0; | |
| width: 100%; | |
| background-color: rgba(0, 0, 0, 0.5); | |
| transition: all 0.3s; | |
| } | |
| &:hover .mask { | |
| opacity: 1; | |
| } | |
| } | |
| </style> |
引入组件试试吧～
