spring是一个非常流行的技术框架，其中spring mvc组件在其中非常重要的地位，主要面要客户端提供服务，我们今天来手写一个简化版的mvc，且包括ioc部分，主要利用servlet机制来实现，类的关系如下：

准备注解类，类于spring的@Autowired、@Service、@Controller、@RequestMapping、@RequestParam

@Target({ElementType.FIELD})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface CSAutowired {
    String value() default "";
}
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface CSController {
    String value() default "";
}
@Target({ElementType.TYPE,ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface CSRequestMapping {
    String value() default "";
}
@Target({ElementType.PARAMETER})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface CSRequestParam {
    String value() default "";
}
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface CSService {
    String value() default "";
}

准备service interface

public interface IDemoService {
    public String get(String name);
}

准备service实现类，利用@CSService

@CSService
public class DemoService implements IDemoService {
    @Override
    public String get(String name) {
        return "My name is "+name;
    }
}

准备对外服务的类，主要利用@CSController注解

@CSController
@CSRequestMapping("/demo")
public class DemoAction {
    @CSAutowired
    private IDemoService demoService;
    @CSRequestMapping("/query")
    public void query(HttpServletRequest req, HttpServletResponse resp, @CSRequestParam("name") String name){
        String result=demoService.get(name);
        try {
            resp.getWriter().write(result);
        } catch (IOException exception) {
            exception.printStackTrace();
        }
    }
    @CSRequestMapping("/add")
    public void add(HttpServletRequest req, HttpServletResponse resp, @CSRequestParam("aa") Integer a,@CSRequestParam("b") Integer b){
        try {
            resp.getWriter().write(a+"+"+b+"="+(a+b));
        } catch (IOException exception) {
            exception.printStackTrace();
        }
    }
    @CSRequestMapping("/remove")
    public void remove(HttpServletRequest req, HttpServletResponse resp, @CSRequestParam("id") Integer id){
        try {
            resp.getWriter().write("id="+id);
        } catch (IOException exception) {
            exception.printStackTrace();
        }
    }
}

准备servlet

主要实现了以下功能：

1).根据@CSController对外服务的url如何mapping到具体方法 doHandlerMap

2).service和controller bean的管理 iocBeans

3).如何实列化bean doInstance

4).如何获取url中参数值 doDispatch中

5).找到需要加载的class doScanner

6).如何自动autowired doAutoWried

public class CSDispatchServlet extends HttpServlet {
    public static String urlPattern="/custom";
    private void doDispatch(HttpServletRequest request,HttpServletResponse response) throws Exception{
        String url=request.getRequestURI();
        String contextPath=request.getContextPath();
        url=url.replace(urlPattern,"");
        if(!handlerMap.containsKey(url)){
            response.getWriter().write(" not found!");
            return;
        }
        Method method=handlerMap.get(url);
        Annotation[][] methodParameterAnnotations= method.getParameterAnnotations();
        Parameter[]  methodParameters= method.getParameters();
        Annotation[][] paramerterAnnotations=method.getParameterAnnotations();
        ArrayList<Object> methodParameterValues=new  ArrayList<Object>();
        Map<String,String[]> requestParams= request.getParameterMap();
        int parmeterCnt=;
        for(Parameter parameter:methodParameters){
            if(parameter.getType()==HttpServletRequest.class ){
                methodParameterValues.add(request);
            }else if(parameter.getType()==HttpServletResponse.class){
                methodParameterValues.add(response);
            }else {
               String methodParamName="";
               if(paramerterAnnotations[parmeterCnt].length>) {
                       Annotation annotation= paramerterAnnotations[parmeterCnt][];
                       if(annotation instanceof CSRequestParam) {
                           methodParamName = ((CSRequestParam) annotation).value();
                       }
               }
               if("".equals(methodParamName.trim())){
                   methodParamName=parameter.getName();
               }
                String value="";
               //String value=Arrays.toString(requestParams.get(methodParamName));
                if(requestParams.get(methodParamName).length>)
                    value=Arrays.toString(requestParams.get(methodParamName));
                else if(requestParams.get(methodParamName).length==)
                     value= requestParams.get(methodParamName)[];
                else
                    value="";
               if(parameter.getType()==String.class)
                   methodParameterValues.add(value);
               else if(parameter.getType()==Integer.class) {
                   try {
                       methodParameterValues.add(Integer.parseInt(value));
                   } catch (Exception e){
                       methodParameterValues.add();
                   }
               }else {
                    //可以扩展复杂类型转换
               }
            }
            parmeterCnt++;
        }
        String beanName=this.genBeanName(method.getDeclaringClass().getSimpleName());
        method.invoke(this.iocBeans.get(beanName), methodParameterValues.toArray());
    }
    private String genBeanName(String beanName){
        if(beanName.length()>)
            beanName=beanName.substring(,0).toLowerCase()+beanName.substring(1);
        else
            beanName=beanName.toLowerCase();
        return beanName;
    }
    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        this.doPost(req,resp);
    }
    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        try {
            this.doDispatch(req,resp);
        } catch (Exception exception) {
            exception.printStackTrace();
        }
    }
    private ArrayList<String> classs=new ArrayList<String>();
    private ConcurrentHashMap<String,Object> iocBeans=new ConcurrentHashMap<String,Object>();
    private ConcurrentHashMap<String,Method> handlerMap=new ConcurrentHashMap<String,Method>();
    private void doInstance() {
        try {
            for (String className : classs) {
                if (!className.contains(".")) continue;
                Class<?> clazz = Class.forName(className);
                String beanName="";
                if (clazz.isAnnotationPresent(CSController.class)) {
                    CSController controller = clazz.getAnnotation(CSController.class);
                    beanName=controller.value();
                }else if(clazz.isAnnotationPresent(CSService.class)){
                    CSService service=clazz.getAnnotation(CSService.class);
                    beanName=service.value();
                }else {
                    continue;
                }
                Object instance=clazz.newInstance();
                if("".equals(beanName.trim()))
                    beanName=clazz.getSimpleName();
                beanName=genBeanName(beanName);
                iocBeans.put(beanName,instance);
                if(clazz.isAnnotationPresent(CSService.class)){
                    for(Class  c:  clazz.getInterfaces()){
                        if(iocBeans.containsKey(c.getName())) continue;
                        iocBeans.put(c.getName(),instance);
                    }
                }
            }
        }catch (Exception e){
            e.printStackTrace();
        }
    }
    private void doAutoWried(){
        for(Object o:iocBeans.values()){
            if(o==null) continue;
            Class clazz=o.getClass();
            if(clazz.isAnnotationPresent(CSService.class) || clazz.isAnnotationPresent(CSController.class)){
                Field[] fields=clazz.getDeclaredFields();
                for(Field f:fields){
                    if(!f.isAnnotationPresent(CSAutowired.class)) continue;
                    CSAutowired autowired=f.getAnnotation(CSAutowired.class);
                    String beanName=autowired.value();
                    if("".equals(beanName)) beanName=f.getType().getName();
                    f.setAccessible(true);
                    try{
                        Object o=iocBeans.get(beanName);
                        f.set(o,iocBeans.get(beanName));
                    }catch (IllegalAccessException e){
                        e.printStackTrace();
                    }
                }
            }
        }
    }
    private void doHandlerMap(ServletConfig config){
        for(Object o:iocBeans.values()){
            if(!o.getClass().isAnnotationPresent(CSController.class)) continue;
            String baseUrl="";
            if(o.getClass().isAnnotationPresent(CSRequestMapping.class)){
                CSRequestMapping requestMapping=o.getClass().getAnnotation(CSRequestMapping.class);
                baseUrl=requestMapping.value();
            }
            for(Method method: o.getClass().getMethods()){
                if(method.isAnnotationPresent(CSRequestMapping.class)) {
                    CSRequestMapping requestMapping=method.getAnnotation(CSRequestMapping.class);
                    String url=baseUrl+requestMapping.value().replaceAll("/+","/");
                    String contextPath=config.getServletContext().getContextPath();
                    this.handlerMap.put(url,method);
                }
            }
        }
    }
    @Override
    public void init(ServletConfig config) throws ServletException {
        InputStream is=null;
        try{
            System.out.println("custom servlet init........");
            /*
            Properties configContext=new Properties();
            is=this.getClass().getClassLoader().getResourceAsStream(config.getInitParameter("contextConfigLocation"));
            configContext.load(is);
            String scanPackage=configContext.getProperty("scanPackage");
            */
            Enumeration<String> enumerations= config.getInitParameterNames();
            while (enumerations.hasMoreElements()){
                System.out.println(enumerations.nextElement());
            }
            doScanner("com.mesui.spring.custom");
            doInstance();
            doAutoWried();
            doHandlerMap( config);
        }catch (Exception exception){
            exception.printStackTrace();
        }finally {
        }
    }
    private void doScanner(String scanPackage){
        URL url= this.getClass().getClassLoader().getResource("") ;
        String filePath="";
        try {
              filePath= URLDecoder.decode( url.getPath(),"UTF-")+"/"+scanPackage.replaceAll("\\.","/");
        } catch (UnsupportedEncodingException e) {
            e.printStackTrace();
        }
        File classDir=new File(filePath);
        for(File file:classDir.listFiles()){
            if(file.isDirectory()){
                doScanner(scanPackage+"."+file.getName());
            }else if(!file.getName().endsWith(".class")) {
                continue;
            }
            if(!file.isDirectory()) {
                String clzzName = (scanPackage + "." + file.getName().replace(".class", ""));
                //map.put(clzzName,null);
                classs.add(clzzName);
            }
        }
    }
}

在利用spring的configuration类初始化servlet

这边为了方便进行偷懒，这样/custom/下的服务按照自已逻辑对对外服务，不按照spring mvc的进行，另外自已可以tomcat的web.xml中标记servlet完全脱离spring

@Configuration
public class MybatisPlusConfig {  @Bean
public ServletRegistrationBean CustomServlet(){
    return new ServletRegistrationBean(new CSDispatchServlet(),CSDispatchServlet.urlPattern+"/*");
}
}

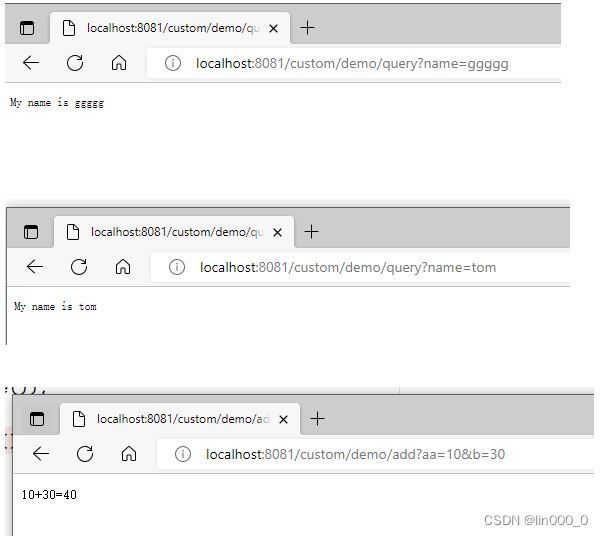

测试

结论

从上面的例子中我们可以看到自已写一个mvc也很方便，不是什么难事，但是这个只是用于学习，毕竟spring是一个体系，我们自已不可能将所有内容重新写一遍，但是自已写着玩有助于对spring mvc和IOC的理解。
