前言

本文章主要从spring security安全认证登录内部调用流程来流程分析登录过程。

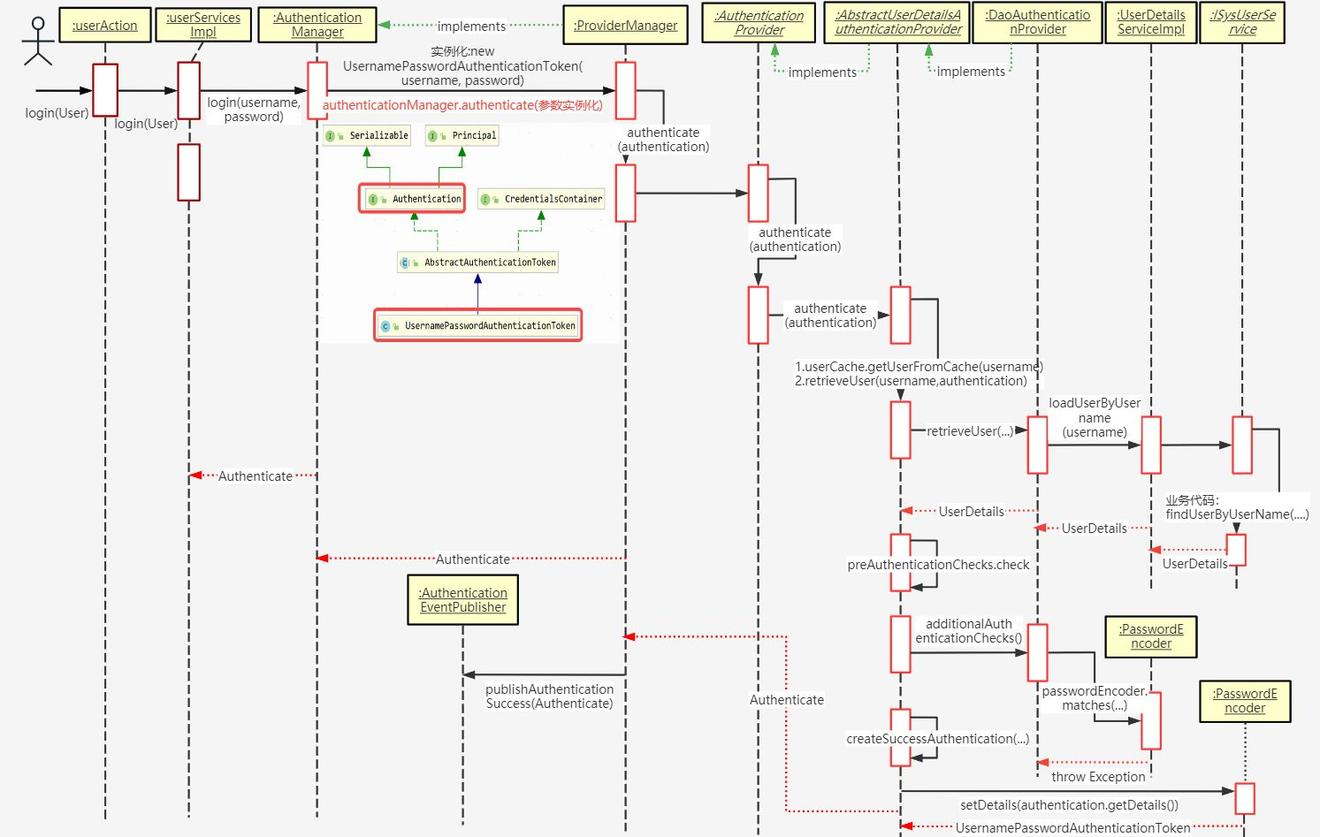

一、登录时序图

时序原图

二、配置与代码

1.引入库

pom.xml：

        <!-- Spring框架基本的核心工具 -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
        </dependency>
        <!-- SpringWeb模块 -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
        </dependency>
        <!-- spring security 安全认证 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <!--常用工具类 -->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
        </dependency>
        <!-- JSON工具类 -->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
        </dependency>
        <!-- 阿里JSON解析器 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
        </dependency>
        <!-- io常用工具类 -->
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
        </dependency>
        <!-- yml解析器 -->
        <dependency>
            <groupId>org.yaml</groupId>
            <artifactId>snakeyaml</artifactId>
        </dependency>
        <!-- Token生成与解析-->
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt</artifactId>
        </dependency>
        <!-- Jaxb -->
        <dependency>
            <groupId>javax.xml.bind</groupId>
            <artifactId>jaxb-api</artifactId>
        </dependency>
        <!-- redis 缓存操作 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <!-- pool 对象池 -->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-pool2</artifactId>
        </dependency>
        <!-- 解析客户端操作系统、浏览器等 -->
        <dependency>
            <groupId>eu.bitwalker</groupId>
            <artifactId>UserAgentUtils</artifactId>
        </dependency>
        <!-- servlet包 -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpclient</artifactId>
            <version>4.5.2</version>
        </dependency>

2.代码文件

代码如下（示例）：

RedisCache.java ：spring redis 工具组件类，注入RedisTemplate，封装Redis缓存数据、对象操作。

import java.util.Collection;
import java.util.Iterator;
import java.util.List;
import java.util.Map;
import java.util.Set;
import java.util.concurrent.TimeUnit;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.BoundSetOperations;
import org.springframework.data.redis.core.HashOperations;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.core.ValueOperations;
import org.springframework.stereotype.Component;
/**
 * spring redis 工具类
 *
 *
 **/
@SuppressWarnings(value = { "unchecked", "rawtypes" })
@Component
public class RedisCache
{
    @Autowired
    public RedisTemplate redisTemplate;
    /**
     * 缓存基本的对象，Integer、String、实体类等
     *
     * @param key 缓存的键值
     * @param value 缓存的值
     */
    public <T> void setCacheObject(final String key, final T value)
    {
        redisTemplate.opsForValue().set(key, value);
    }
    /**
     * 缓存基本的对象，Integer、String、实体类等
     *
     * @param key 缓存的键值
     * @param value 缓存的值
     * @param timeout 时间
     * @param timeUnit 时间颗粒度
     */
    public <T> void setCacheObject(final String key, final T value, final Integer timeout, final TimeUnit timeUnit)
    {
        redisTemplate.opsForValue().set(key, value, timeout, timeUnit);
    }
    /**
     * 设置有效时间
     *
     * @param key Redis键
     * @param timeout 超时时间
     * @return true=设置成功；false=设置失败
     */
    public boolean expire(final String key, final long timeout)
    {
        return expire(key, timeout, TimeUnit.SECONDS);
    }
    /**
     * 设置有效时间
     *
     * @param key Redis键
     * @param timeout 超时时间
     * @param unit 时间单位
     * @return true=设置成功；false=设置失败
     */
    public boolean expire(final String key, final long timeout, final TimeUnit unit)
    {
        return redisTemplate.expire(key, timeout, unit);
    }
    /**
     * 获得缓存的基本对象。
     *
     * @param key 缓存键值
     * @return 缓存键值对应的数据
     */
    public <T> T getCacheObject(final String key)
    {
        ValueOperations<String, T> operation = redisTemplate.opsForValue();
        return operation.get(key);
    }
    /**
     * 删除单个对象
     *
     * @param key
     */
    public boolean deleteObject(final String key)
    {
        return redisTemplate.delete(key);
    }
    /**
     * 删除集合对象
     *
     * @param collection 多个对象
     * @return
     */
    public long deleteObject(final Collection collection)
    {
        return redisTemplate.delete(collection);
    }
    /**
     * 缓存List数据
     *
     * @param key 缓存的键值
     * @param dataList 待缓存的List数据
     * @return 缓存的对象
     */
    public <T> long setCacheList(final String key, final List<T> dataList)
    {
        Long count = redisTemplate.opsForList().rightPushAll(key, dataList);
        return count == null ? 0 : count;
    }
    /**
     * 获得缓存的list对象
     *
     * @param key 缓存的键值
     * @return 缓存键值对应的数据
     */
    public <T> List<T> getCacheList(final String key)
    {
        return redisTemplate.opsForList().range(key, 0, -1);
    }
    /**
     * 缓存Set
     *
     * @param key 缓存键值
     * @param dataSet 缓存的数据
     * @return 缓存数据的对象
     */
    public <T> BoundSetOperations<String, T> setCacheSet(final String key, final Set<T> dataSet)
    {
        BoundSetOperations<String, T> setOperation = redisTemplate.boundSetOps(key);
        Iterator<T> it = dataSet.iterator();
        while (it.hasNext())
        {
            setOperation.add(it.next());
        }
        return setOperation;
    }
    /**
     * 获得缓存的set
     *
     * @param key
     * @return
     */
    public <T> Set<T> getCacheSet(final String key)
    {
        return redisTemplate.opsForSet().members(key);
    }
    /**
     * 缓存Map
     *
     * @param key
     * @param dataMap
     */
    public <T> void setCacheMap(final String key, final Map<String, T> dataMap)
    {
        if (dataMap != null) {
            redisTemplate.opsForHash().putAll(key, dataMap);
        }
    }
    /**
     * 获得缓存的Map
     *
     * @param key
     * @return
     */
    public <T> Map<String, T> getCacheMap(final String key)
    {
        return redisTemplate.opsForHash().entries(key);
    }
    /**
     * 往Hash中存入数据
     *
     * @param key Redis键
     * @param hKey Hash键
     * @param value 值
     */
    public <T> void setCacheMapValue(final String key, final String hKey, final T value)
    {
        redisTemplate.opsForHash().put(key, hKey, value);
    }
    /**
     * 获取Hash中的数据
     *
     * @param key Redis键
     * @param hKey Hash键
     * @return Hash中的对象
     */
    public <T> T getCacheMapValue(final String key, final String hKey)
    {
        HashOperations<String, String, T> opsForHash = redisTemplate.opsForHash();
        return opsForHash.get(key, hKey);
    }
    /**
     * 删除Hash中的数据
     *
     * @param key
     * @param mapkey
     */
    public void delCacheMapValue(final String key, final String hkey)
    {
        HashOperations hashOperations = redisTemplate.opsForHash();
        hashOperations.delete(key, hkey);
    }
    /**
     * 获取多个Hash中的数据
     *
     * @param key Redis键
     * @param hKeys Hash键集合
     * @return Hash对象集合
     */
    public <T> List<T> getMultiCacheMapValue(final String key, final Collection<Object> hKeys)
    {
        return redisTemplate.opsForHash().multiGet(key, hKeys);
    }
    /**
     * 获得缓存的基本对象列表
     *
     * @param pattern 字符串前缀
     * @return 对象列表
     */
    public Collection<String> keys(final String pattern)
    {
        return redisTemplate.keys(pattern);
    }
}

RedisConfig：redis配置类。

import org.springframework.cache.annotation.CachingConfigurerSupport;
import org.springframework.cache.annotation.EnableCaching;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.core.script.DefaultRedisScript;
import org.springframework.data.redis.serializer.StringRedisSerializer;
import com.fasterxml.jackson.annotation.JsonAutoDetect;
import com.fasterxml.jackson.annotation.JsonTypeInfo;
import com.fasterxml.jackson.annotation.PropertyAccessor;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.fasterxml.jackson.databind.jsontype.impl.LaissezFaireSubTypeValidator;
@Configuration
@EnableCaching
public class RedisConfig extends CachingConfigurerSupport
{
    @Bean
    @SuppressWarnings(value = { "unchecked", "rawtypes" })
    public RedisTemplate<Object, Object> redisTemplate(RedisConnectionFactory connectionFactory)
    {
        RedisTemplate<Object, Object> template = new RedisTemplate<>();
        template.setConnectionFactory(connectionFactory);
        FastJson2JsonRedisSerializer serializer = new FastJson2JsonRedisSerializer(Object.class);
        ObjectMapper mapper = new ObjectMapper();
        mapper.setVisibility(PropertyAccessor.ALL, JsonAutoDetect.Visibility.ANY);
        mapper.activateDefaultTyping(LaissezFaireSubTypeValidator.instance, ObjectMapper.DefaultTyping.NON_FINAL, JsonTypeInfo.As.PROPERTY);
        serializer.setObjectMapper(mapper);
        // 使用StringRedisSerializer来序列化和反序列化redis的key值
        template.setKeySerializer(new StringRedisSerializer());
        template.setValueSerializer(serializer);
        // Hash的key也采用StringRedisSerializer的序列化方式
        template.setHashKeySerializer(new StringRedisSerializer());
        template.setHashValueSerializer(serializer);
        template.afterPropertiesSet();
        return template;
    }
}

SecurityUtils：安全服务工具类。

import com.ems.mgr.common.constant.HttpStatus;
import com.ems.mgr.common.exception.ServiceException;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import com.ems.mgr.common.core.domain.model.LoginUser;
/**
 * 安全服务工具类
 */
public class SecurityUtils
{
    /**
     * 用户ID
     **/
    public static Long getUserId()
    {
        try
        {
            return getLoginUser().getUserId();
        }
        catch (Exception e)
        {
            throw new ServiceException("获取用户ID异常", HttpStatus.UNAUTHORIZED);
        }
    }
    /**
     * 获取部门ID
     **/
    public static Long getDeptId()
    {
        try
        {
            return getLoginUser().getDeptId();
        }
        catch (Exception e)
        {
            throw new ServiceException("获取部门ID异常", HttpStatus.UNAUTHORIZED);
        }
    }
    /**
     * 获取用户账户
     **/
    public static String getUsername()
    {
        try
        {
            return getLoginUser().getUsername();
        }
        catch (Exception e)
        {
            throw new ServiceException("获取用户账户异常", HttpStatus.UNAUTHORIZED);
        }
    }
    /**
     * 获取用户
     **/
    public static LoginUser getLoginUser()
    {
        try
        {
            return (LoginUser) getAuthentication().getPrincipal();
        }
        catch (Exception e)
        {
            throw new ServiceException("获取用户信息异常", HttpStatus.UNAUTHORIZED);
        }
    }
    /**
     * 获取Authentication
     */
    public static Authentication getAuthentication()
    {
        return SecurityContextHolder.getContext().getAuthentication();
    }
    /**
     * 生成BCryptPasswordEncoder密码
     *
     * @param password 密码
     * @return 加密字符串
     */
    public static String encryptPassword(String password)
    {
        BCryptPasswordEncoder passwordEncoder = new BCryptPasswordEncoder();
        return passwordEncoder.encode(password);
    }
    /**
     * 判断密码是否相同
     *
     * @param rawPassword 真实密码
     * @param encodedPassword 加密后字符
     * @return 结果
     */
    public static boolean matchesPassword(String rawPassword, String encodedPassword)
    {
        BCryptPasswordEncoder passwordEncoder = new BCryptPasswordEncoder();
        return passwordEncoder.matches(rawPassword, encodedPassword);
    }
    /**
     * 是否为管理员
     *
     * @param userId 用户ID
     * @return 结果
     */
    public static boolean isAdmin(Long userId)
    {
        return userId != null && 1L == userId;
    }
}

SecurityConfig：spring security配置。

import com.ems.mgr.framework.security.filter.JwtAuthenticationTokenFilter;
import com.ems.mgr.framework.security.handle.AuthenticationEntryPointImpl;
import com.ems.mgr.framework.security.handle.LogoutSuccessHandlerImpl;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.http.HttpMethod;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;
import org.springframework.security.web.authentication.logout.LogoutFilter;
import org.springframework.web.filter.CorsFilter;
/**
 * spring security配置
 */
@EnableGlobalMethodSecurity(prePostEnabled = true, securedEnabled = true)
public class SecurityConfig extends WebSecurityConfigurerAdapter
{
    /**
     * 自定义用户认证逻辑
     */
    @Autowired
    private UserDetailsService userDetailsService;
    /**
     * 认证失败处理类
     */
    @Autowired
    private AuthenticationEntryPointImpl unauthorizedHandler;
    /**
     * 退出处理类
     */
    @Autowired
    private LogoutSuccessHandlerImpl logoutSuccessHandler;
    /**
     * token认证过滤器
     */
    @Autowired
    private JwtAuthenticationTokenFilter authenticationTokenFilter;
    /**
     * 跨域过滤器
     */
    @Autowired
    private CorsFilter corsFilter;
    /**
     * 解决 无法直接注入 AuthenticationManager
     *
     * @return
     * @throws Exception
     */
    @Bean
    @Override
    public AuthenticationManager authenticationManagerBean() throws Exception
    {
        return super.authenticationManagerBean();
    }
    /**
     * anyRequest          |   匹配所有请求路径
     * access              |   SpringEl表达式结果为true时可以访问
     * anonymous           |   匿名可以访问
     * denyAll             |   用户不能访问
     * fullyAuthenticated  |   用户完全认证可以访问（非remember-me下自动登录）
     * hasAnyAuthority     |   如果有参数，参数表示权限，则其中任何一个权限可以访问
     * hasAnyRole          |   如果有参数，参数表示角色，则其中任何一个角色可以访问
     * hasAuthority        |   如果有参数，参数表示权限，则其权限可以访问
     * hasIpAddress        |   如果有参数，参数表示IP地址，如果用户IP和参数匹配，则可以访问
     * hasRole             |   如果有参数，参数表示角色，则其角色可以访问
     * permitAll           |   用户可以任意访问
     * rememberMe          |   允许通过remember-me登录的用户访问
     * authenticated       |   用户登录后可访问
     */
    @Override
    protected void configure(HttpSecurity httpSecurity) throws Exception
    {
        httpSecurity
                // CSRF禁用，因为不使用session
                .csrf().disable()
                // 认证失败处理类
                .exceptionHandling().authenticationEntryPoint(unauthorizedHandler).and()
                // 基于token，所以不需要session
                .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS).and()
                // 过滤请求
                .authorizeRequests()
                // 对于登录login  验证码captchaImage 允许匿名访问
                .antMatchers("/ems/login", "/ems/captchaImage","/ems/login/sms","/ems/robot/**/**").anonymous()
                .antMatchers("/tool/gen/**/**").anonymous()
                .antMatchers("/message/sendOne").anonymous()
                .antMatchers(
                        HttpMethod.GET,
                        "/",
                        "/*.html",
                        "/**/*.html",
                        "/**/*.css",
                        "/**/*.js",
                        "/profile/**"
                ).permitAll()
                .antMatchers("/swagger-ui.html").anonymous()
                .antMatchers("/swagger-resources/**").anonymous()
                .antMatchers("/webjars/**").anonymous()
                .antMatchers("/*/api-docs").anonymous()
                .antMatchers("/druid/**").anonymous()
                .antMatchers("/merakWs/**").anonymous()
                //.antMatchers("/tool/**").anonymous()
                // 除上面外的所有请求全部需要鉴权认证
                .anyRequest().authenticated()
                .and()
                .headers().frameOptions().disable();
        httpSecurity.logout().logoutUrl("/logout").logoutSuccessHandler(logoutSuccessHandler);
        // 添加JWT filter
        httpSecurity.addFilterBefore(authenticationTokenFilter, UsernamePasswordAuthenticationFilter.class);
        // 添加CORS filter
        httpSecurity.addFilterBefore(corsFilter, JwtAuthenticationTokenFilter.class);
        httpSecurity.addFilterBefore(corsFilter, LogoutFilter.class);
    }
    /**
     * 强散列哈希加密实现
     */
    @Bean
    public BCryptPasswordEncoder bCryptPasswordEncoder()
    {
        return new BCryptPasswordEncoder();
    }
    /**
     * 身份认证接口
     */
    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception
    {
    //设置DaoAuthenticationProvider类PasswordEncoder passwordEncoder
    auth.userDetailsService(userDetailsService).passwordEncoder(bCryptPasswordEncoder());
    }
}

spring security配置类配置token认证过滤器（JwtAuthenticationTokenFilter）、

认证失败处理类（AuthenticationEntryPointImpl）、退出处理类（LogoutSuccessHandlerImpl）

1-JwtAuthenticationTokenFilter：

package com.ems.mgr.framework.security.filter;
import java.io.IOException;
import javax.servlet.FilterChain;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.web.authentication.WebAuthenticationDetailsSource;
import org.springframework.stereotype.Component;
import org.springframework.web.filter.OncePerRequestFilter;
import com.ems.mgr.common.core.domain.model.LoginUser;
import com.ems.mgr.common.utils.SecurityUtils;
import com.ems.mgr.common.utils.StringUtils;
import com.ems.mgr.framework.web.service.TokenService;
/**
 * token过滤器 验证token有效性
 */
@Component
public class JwtAuthenticationTokenFilter extends OncePerRequestFilter
{
    @Autowired
    private TokenService tokenService;
    @Override
    protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain chain)
            throws ServletException, IOException
    {
        LoginUser loginUser = tokenService.getLoginUser(request);
        if (StringUtils.isNotNull(loginUser) && StringUtils.isNull(SecurityUtils.getAuthentication()))
        {
            tokenService.verifyToken(loginUser);
            UsernamePasswordAuthenticationToken authenticationToken = new UsernamePasswordAuthenticationToken(loginUser, null, loginUser.getAuthorities());
            authenticationToken.setDetails(new WebAuthenticationDetailsSource().buildDetails(request));
            SecurityContextHolder.getContext().setAuthentication(authenticationToken);
        }
        chain.doFilter(request, response);
    }
}

2-AuthenticationEntryPointImpl:认证失败处理类 返回未授权

package com.ems.mgr.framework.security.handle;
import java.io.IOException;
import java.io.Serializable;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import com.ems.mgr.common.core.domain.AjaxResult;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.web.AuthenticationEntryPoint;
import org.springframework.stereotype.Component;
import com.alibaba.fastjson.JSON;
import com.ems.mgr.common.constant.HttpStatus;
import com.ems.mgr.common.utils.ServletUtils;
import com.ems.mgr.common.utils.StringUtils;
/**
 * 认证失败处理类 返回未授权
 *
 *
 */
@Component
public class AuthenticationEntryPointImpl implements AuthenticationEntryPoint, Serializable
{
    private static final long serialVersionUID = -8970718410437077606L;
    @Override
    public void commence(HttpServletRequest request, HttpServletResponse response, AuthenticationException e)
            throws IOException
    {
        int code = HttpStatus.UNAUTHORIZED;
        String msg = StringUtils.format("请求访问：{}，认证失败，无法访问系统资源", request.getRequestURI());
        ServletUtils.renderString(response, JSON.toJSONString(AjaxResult.error(code, msg)));
    }
}

3-LogoutSuccessHandlerImpl:自定义退出处理类

package com.ems.mgr.framework.security.handle;
import java.io.IOException;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import com.ems.mgr.common.constant.Constants;
import com.ems.mgr.common.core.domain.AjaxResult;
import com.ems.mgr.framework.manager.factory.AsyncFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.core.Authentication;
import org.springframework.security.web.authentication.logout.LogoutSuccessHandler;
import com.alibaba.fastjson.JSON;
import com.ems.mgr.common.constant.HttpStatus;
import com.ems.mgr.common.core.domain.model.LoginUser;
import com.ems.mgr.common.utils.ServletUtils;
import com.ems.mgr.common.utils.StringUtils;
import com.ems.mgr.framework.manager.AsyncManager;
import com.ems.mgr.framework.web.service.TokenService;
/**
 * 自定义退出处理类 返回成功
 */
@Configuration
public class LogoutSuccessHandlerImpl implements LogoutSuccessHandler
{
    @Autowired
    private TokenService tokenService;
    /**
     * 退出处理
     *
     * @return
     */
    @Override
    public void onLogoutSuccess(HttpServletRequest request, HttpServletResponse response, Authentication authentication)
            throws IOException, ServletException
    {
        LoginUser loginUser = tokenService.getLoginUser(request);
        if (StringUtils.isNotNull(loginUser))
        {
            String userName = loginUser.getUsername();
            // 删除用户缓存记录
            tokenService.delLoginUser(loginUser.getToken());
            // 记录用户退出日志
            AsyncManager.me().execute(AsyncFactory.recordLogininfor(userName, Constants.LOGOUT, "退出成功"));
        }
        ServletUtils.renderString(response, JSON.toJSONString(AjaxResult.error(HttpStatus.SUCCESS, "退出成功")));
    }
}

参考文档

Spring Security 入门原理及实战
