一、效果展示

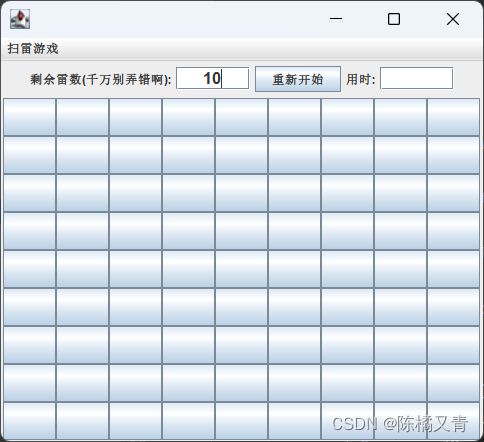

初级难度

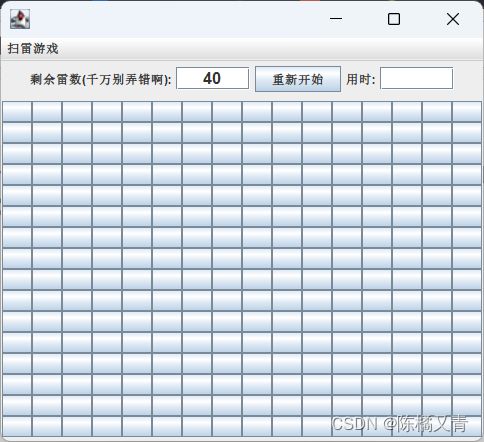

中级难度

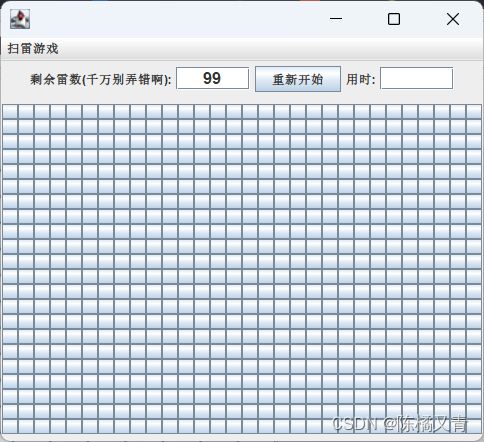

高级难度

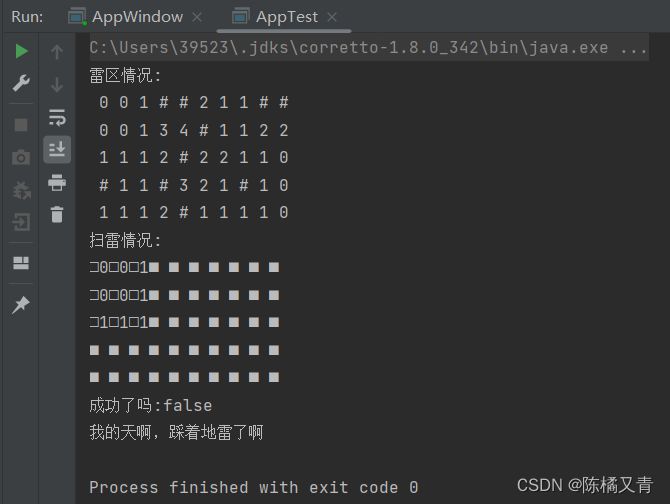

测试界面

二、项目介绍

项目背景

扫雷是一款大众类的益智小游戏。根据点击格子出现的数字找出所有非雷格子，同时避免踩雷，踩到一个雷即全盘皆输。这款游戏有着很长的历史，从扫雷被开发出来到现在进行了无数次的优化，这款游戏通过简单的玩法，加上一个好看的游戏界面，每一处的细节都体现了扫雷的魅力。

功能分析

完成 难度选择，雷随机生成，数字生成，左右键翻开 等功能实现

游戏四种状态： 难度选择、游戏状态、游戏胜利、游戏失败

游戏难度： 初级、中级、高级（不同难度对应不同的雷区大小和雷数量）

游戏核心： 二维数组 的相关操作

其他： 窗口绘制、界面规划、操作计数、重新开始。

三、代码展示

图形界面设计（gui包）

主类：AppWindows类

AppWindow类负责创建游戏的主窗口，该类含有main方法,程序从该类开始执行。

package ch.gui;
import java.awt.*;
import javax.swing.*;
import javax.swing.event.*;
import java.awt.event.*;
import ch.view.MineArea;
import ch.view.ShowRecord;
public class AppWindow extends JFrame implements MenuListener,ActionListener{
     JMenuBar bar;
     JMenu fileMenu;
     JMenu gradeOne,gradeTwo,gradeThree;//扫雷级别
     JMenuItem gradeOneList,gradeTwoList,gradeThreeList;//初，中，高级英雄榜
     MineArea mineArea=null;                //扫雷区域
     ShowRecord showHeroRecord=null;        //查看英雄榜
     public AppWindow(){
         bar=new JMenuBar();
         fileMenu=new JMenu("扫雷游戏");
         gradeOne=new JMenu("初级");
         gradeTwo=new JMenu("中级");
         gradeThree=new JMenu("高级");
         gradeOneList=new JMenuItem("初级英雄榜");
         gradeTwoList=new JMenuItem("中级英雄榜");
         gradeThreeList=new JMenuItem("高级英雄榜");
         gradeOne.add(gradeOneList);
         gradeTwo.add(gradeTwoList);
         gradeThree.add(gradeThreeList);
         fileMenu.add(gradeOne);
         fileMenu.add(gradeTwo);
         fileMenu.add(gradeThree);
         bar.add(fileMenu);
         setJMenuBar(bar);
         gradeOne.addMenuListener(this);
         gradeTwo.addMenuListener(this);
         gradeThree.addMenuListener(this);
         gradeOneList.addActionListener(this);
         gradeTwoList.addActionListener(this);
         gradeThreeList.addActionListener(this);
         mineArea=new MineArea(,9,10,gradeOne.getText());//创建初级扫雷区
         add(mineArea,BorderLayout.CENTER);
         showHeroRecord=new ShowRecord();
         setBounds(,100,500,450);
         setVisible(true);
         setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
         validate();
     }
     public void menuSelected(MenuEvent e){
        if(e.getSource()==gradeOne){
              mineArea.initMineArea(,9,10,gradeOne.getText());
              validate();
        }
        else if(e.getSource()==gradeTwo){
              mineArea.initMineArea(,16,40,gradeTwo.getText());
              validate();
        }
        else if(e.getSource()==gradeThree){
              mineArea.initMineArea(,30,99,gradeThree.getText());
              validate();
        }
     }
     public void menuCanceled(MenuEvent e){}
     public void menuDeselected(MenuEvent e){}
     public void actionPerformed(ActionEvent e){
        if(e.getSource()==gradeOneList){
              showHeroRecord.setGrade(gradeOne.getText());
              showHeroRecord.showRecord();
        }
        else if(e.getSource()==gradeTwoList){
              showHeroRecord.setGrade(gradeTwo.getText());
              showHeroRecord.showRecord();
        }
        else if(e.getSource()==gradeThreeList){
              showHeroRecord.setGrade(gradeThree.getText());
              showHeroRecord.showRecord();
        }
    }
    public static void main(String args[]){
        new AppWindow();
    }
}

用户操作设计（data包）

Block类

package ch.data;
import javax.swing.ImageIcon;
public class Block {
     String name;                   //名字,比如"雷"或数字
     int aroundMineNumber;          //如果不是类，此数据是周围雷的数目
     ImageIcon mineIcon;            //雷的图标
     public boolean isMine=false;   //是否是雷
     boolean isMark=false;          //是否被标记
     boolean isOpen=false;          //是否被挖开
     ViewForBlock  blockView;       //方块的视图
     public void setName(String name) {
         this.name=name;
     }
     public void setAroundMineNumber(int n) {
         aroundMineNumber=n;
     }
     public int getAroundMineNumber() {
         return aroundMineNumber;
     }
     public String getName() {
         return name;
     }
     public boolean isMine() {
         return isMine;
     }
     public void setIsMine(boolean b) {
         isMine=b;
     }
     public void setMineIcon(ImageIcon icon){
         mineIcon=icon;
     }
     public ImageIcon getMineicon(){
         return mineIcon;
     }
     public boolean getIsOpen() {
         return isOpen;
     }
     public void setIsOpen(boolean p) {
         isOpen=p;
     }
     public boolean getIsMark() {
         return isMark;
     }
     public void setIsMark(boolean m) {
         isMark=m;
     }
     public void setBlockView(ViewForBlock view){
        blockView = view;
        blockView.acceptBlock(this);
     }
     public ViewForBlock getBlockView(){
        return  blockView ;
     }
}

LayMines类

package ch.data;
import java.util.LinkedList;
import javax.swing.ImageIcon;
public class LayMines {
     ImageIcon mineIcon;
     public LayMines() {
          mineIcon=new ImageIcon("扫雷图片/mine.gif");
     }
     public void initBlock(Block [][] block){
         for(int i=;i<block.length;i++) {
             for(int j=;j<block[i].length;j++)
                block[i][j].setIsMine(false);
         }
     }
     public void layMinesForBlock(Block [][] block,int mineCount){ //在雷区布置mineCount个雷
         initBlock(block);       //先都设置是无雷
         int row=block.length;
         int column=block[].length;
         LinkedList<Block> list=new LinkedList<Block>();
         for(int i=;i<row;i++) {
             for(int j=;j<column;j++)
                list.add(block[i][j]);
         }
         while(mineCount>){                  //开始布雷
            int size=list.size();             // list返回节点的个数
            int randomIndex=(int)(Math.random()*size);
            Block b=list.get(randomIndex);
            b.setIsMine(true);
            b.setName("雷");
            b.setMineIcon(mineIcon);
            list.remove(randomIndex);        //list删除索引值为randomIndex的节点
            mineCount--;
        }
        for(int i=;i<row;i++){             //检查布雷情况，标记每个方块周围的雷的数目
           for(int j=;j<column;j++){
              if(block[i][j].isMine()){
                 block[i][j].setIsOpen(false);
                 block[i][j].setIsMark(false);
              }
              else {
                 int mineNumber=;
                 for(int k=Math.max(i-,0);k<=Math.min(i+1,row-1);k++) {
                       for(int t=Math.max(j-,0);t<=Math.min(j+1,column-1);t++){
                          if(block[k][t].isMine())
                              mineNumber++;
                       }
                 }
                 block[i][j].setIsOpen(false);
                 block[i][j].setIsMark(false);
                 block[i][j].setName(""+mineNumber);
                 block[i][j].setAroundMineNumber(mineNumber); //设置该方块周围的雷数目
              }
           }
        }
    }
}

PeopleScoutMine类

package ch.data;
import java.util.Stack;
public class PeopleScoutMine {
   public Block [][] block;    //雷区的全部方块
   Stack<Block>  notMineBlock; //存放一个方块周围区域内不是雷的方块
   int m,n ;                   //方块的索引下标
   int row,colum;              //雷区的行和列
   int mineCount;              //雷的数目
   public PeopleScoutMine(){
       notMineBlock = new Stack<Block>();
   }
   public void setBlock(Block [][] block,int mineCount){
       this.block = block;
       this.mineCount =  mineCount;
       row = block.length;
       colum = block[].length;
   }
   public Stack<Block> getNoMineAroundBlock(Block bk){//得到方块bk附近区域不是雷的方块
       notMineBlock.clear();
       for(int i=;i<row;i++) {   //寻找bk在雷区block中的位置索引
             for(int j=;j<colum;j++) {
               if(bk == block[i][j]){
                  m=i;
                  n=j;
                  break;
               }
             }
        }
        if(!bk.isMine()) {     //方块不是雷
            show(m,n);        //见后面的递归方法
        }
        return notMineBlock;
   }
   public void show(int m,int n) {
      if(block[m][n].getAroundMineNumber()>&&block[m][n].getIsOpen()==false){
          block[m][n].setIsOpen(true);
          notMineBlock.push(block[m][n]); //将不是雷的方块压栈
          return;
      }
      else if(block[m][n].getAroundMineNumber()==&&block[m][n].getIsOpen()==false){
          block[m][n].setIsOpen(true);
          notMineBlock.push(block[m][n]); //将不是雷的方块压栈
          for(int k=Math.max(m-,0);k<=Math.min(m+1,row-1);k++) {
             for(int t=Math.max(n-,0);t<=Math.min(n+1,colum-1);t++)
                 show(k,t);
          }
      }
   }
   public boolean verifyWin(){
       boolean isOK = false;
       int number=;
       for(int i=;i<row;i++) {
           for(int j=;j<colum;j++) {
              if(block[i][j].getIsOpen()==false)
                 number++;
           }
       }
       if(number==mineCount){
           isOK =true;
       }
       return isOK;
   }
}

RecordOrShowRecord类

package ch.data;
import java.sql.*;
public class RecordOrShowRecord{
   Connection con;
   String tableName ;
   int heroNumber   =;   //英雄榜显示的最多英雄数目
   public  RecordOrShowRecord(){
      try{Class.forName("org.apache.derby.jdbc.EmbeddedDriver");
      }
      catch(Exception e){}
   }
   public void setTable(String str){
      tableName = "t_"+str;
      connectDatabase();//连接数据库

      try {
          Statement sta = con.createStatement();
          String SQL="create table "+tableName+
         "(p_name varchar() ,p_time int)";
          sta.executeUpdate(SQL);//创建表
          con.close();
      }
      catch(SQLException e) {//如果表已经存在，将触发SQL异常，即不再创建该表
      }
   }
   public boolean addRecord(String name,int time){
       boolean ok  = true;
      if(tableName == null)
         ok = false;
      //检查time是否达到标准(进入前heroNumber名)，见后面的verifyScore方法：
       int amount = verifyScore(time);
       if(amount >= heroNumber) {
          ok = false;
       }
       else {
          connectDatabase();  //连接数据库
          try {
             String SQL ="insert into "+tableName+" values(?,?)";
             PreparedStatement sta  = con.prepareStatement(SQL);
             sta.setString(,name);
             sta.setInt(,time);
             sta.executeUpdate();
             con.close();
             ok = true;
          }
          catch(SQLException e) {
             ok = false;
          }
       }
       return ok;
   }
   public String [][] queryRecord(){
      if(tableName == null)
         return null;
      String [][] record  = null;
      Statement sql;
      ResultSet rs;
      try {
        sql=
        con.createStatement
       (ResultSet.TYPE_SCROLL_INSENSITIVE,ResultSet.CONCUR_READ_ONLY);
        String str = "select * from "+tableName+" order by p_time ";
        rs=sql.executeQuery(str);
        boolean boo =rs.last();
        if(boo == false)
           return null;
        int recordAmount =rs.getRow();//结果集中的全部记录
        record = new String[recordAmount][];
        rs.beforeFirst();
        int i=;
        while(rs.next()) {
          record[i][] = rs.getString(1);
          record[i][] = rs.getString(2);
          i++;
        }
        con.close();
      }
      catch(SQLException e) {}
      return record;
   }
   private void connectDatabase(){
      try{
         String uri ="jdbc:derby:record;create=true";
         con=DriverManager.getConnection(uri); //连接数据库,如果不存在就创建

      }
      catch(Exception e){}
   }
   private int verifyScore(int time){
      if(tableName == null)
         return Integer.MAX_VALUE ;
      connectDatabase();    //连接数据库
      Statement sql;
      ResultSet rs;
      int amount =;
      String str =
      "select * from "+tableName+" where p_time < "+time;
      try {
        sql=con.createStatement();
        rs=sql.executeQuery(str);
        while(rs.next()){
           amount++;
        }
        con.close();
      }
      catch(SQLException e) {}
      return amount;
   }
}

ViewForBlock接口

package ch.data;
public interface ViewForBlock {
    public void acceptBlock(Block block);//确定是哪个方块的视图
    public void setDataOnView(); //设置视图上需要显示的数据
    public void seeBlockNameOrIcon();//显示图标方块上的名字或
    public void seeBlockCover();     //显示视图上负责遮挡的组件
    public Object getBlockCover();   //得到视图上的遮挡组件
}

游戏视图设计（view包）

BlockView类

package ch.view;
import javax.swing.*;
import java.awt.*;
import ch.data.*;
public class BlockView extends JPanel implements ViewForBlock{
     JLabel blockNameOrIcon; //用来显示Block对象的name、number和mineIcon属性
     JButton blockCover;     //用来遮挡blockNameOrIcon.
     CardLayout card;        //卡片式布局
     Block block ;           //被提供视图的方块
     BlockView(){
        card=new CardLayout();
        setLayout(card);
        blockNameOrIcon=new JLabel("",JLabel.CENTER);
        blockNameOrIcon.setHorizontalTextPosition(AbstractButton.CENTER);
        blockNameOrIcon.setVerticalTextPosition(AbstractButton.CENTER);
        blockCover=new JButton();
        add("cover",blockCover);
        add("view",blockNameOrIcon);
     }
     public void acceptBlock(Block block){
         this.block = block;
     }
     public void setDataOnView(){
        if(block.isMine()){
           blockNameOrIcon.setText(block.getName());
           blockNameOrIcon.setIcon(block.getMineicon());
        }
        else {
           int n=block.getAroundMineNumber();
           if(n>=)
             blockNameOrIcon.setText(""+n);
           else
             blockNameOrIcon.setText(" ");
        }
     }
     public void seeBlockNameOrIcon(){
        card.show(this,"view");
        validate();
     }
     public void seeBlockCover(){
        card.show(this,"cover");
        validate();
     }
     public JButton getBlockCover(){
        return blockCover;
     }
}

MineArea类

package ch.view;
import java.awt.*;
import java.awt.event.*;
import javax.swing.*;
import ch.data.*;
import java.util.Stack;
public class MineArea extends JPanel implements ActionListener,MouseListener{
     JButton reStart;
     Block [][] block;                  //雷区的方块
     BlockView [][] blockView;          //方块的视图
     LayMines lay;                      //负责布雷
     PeopleScoutMine peopleScoutMine;   //负责扫雷
     int row,colum,mineCount,markMount;//雷区的行数、列数以及地雷个数和用户给出的标记数
     ImageIcon mark;                   //探雷作的标记
     String grade;                     //游戏级别
     JPanel pCenter,pNorth;            //布局用的面板
     JTextField showTime,showMarkedMineCount; //显示用时和探雷作的标记数目（不一定是雷哦）
     Timer time;                          //计时器
     int spendTime=;                     //扫雷的用时
     Record record;                       //负责记录到英雄榜
     PlayMusic playMusic;                 //负责播放雷爆炸的声音
     public MineArea(int row,int colum,int mineCount,String grade) {
         record = new Record(); //负责保存成绩到英雄榜
         reStart=new JButton("重新开始");
         mark=new ImageIcon("扫雷图片/mark.png");  //探雷标记
         time=new Timer(,this);                //计时器，每个一秒触发ActionEvent事件一次
         showTime=new JTextField();
         showMarkedMineCount=new JTextField();
         showTime.setHorizontalAlignment(JTextField.CENTER);
         showMarkedMineCount.setHorizontalAlignment(JTextField.CENTER);
         showMarkedMineCount.setFont(new Font("Arial",Font.BOLD,));
         showTime.setFont(new Font("Arial",Font.BOLD,));
         pCenter=new JPanel();
         pNorth=new JPanel();
         lay=new LayMines();                      //创建布雷者
         peopleScoutMine = new PeopleScoutMine(); //创建扫雷者
         initMineArea(row,colum,mineCount,grade); //初始化雷区,见下面的initMineArea方法
         reStart.addActionListener(this);
         pNorth.add(new JLabel("剩余雷数(千万别弄错啊):"));
         pNorth.add(showMarkedMineCount);
         pNorth.add(reStart);
         pNorth.add(new JLabel("用时:"));
         pNorth.add(showTime);
         setLayout(new BorderLayout());
         add(pNorth,BorderLayout.NORTH);
         add(pCenter,BorderLayout.CENTER);
         playMusic = new PlayMusic();              //负责播放触雷爆炸的声音
         playMusic.setClipFile("扫雷图片/mine.wav");
    }
    public void initMineArea(int row,int colum,int mineCount,String grade){
       pCenter.removeAll();
       spendTime=;
       markMount=mineCount;
       this.row=row;
       this.colum=colum;
       this.mineCount=mineCount;
       this.grade=grade;
       block=new Block[row][colum];
       for(int i=;i<row;i++){
         for(int j=;j<colum;j++)
              block[i][j]=new Block();
       }
       lay.layMinesForBlock(block,mineCount);     //布雷
       peopleScoutMine.setBlock(block,mineCount); //准备扫雷
       blockView=new BlockView[row][colum];       //创建方块的视图
       pCenter.setLayout(new GridLayout(row,colum));
       for(int i=;i<row;i++) {
          for(int j=;j<colum;j++) {
               blockView[i][j]=new BlockView();
               block[i][j].setBlockView(blockView[i][j]); //方块设置自己的视图
               blockView[i][j].setDataOnView();  //将block[i][j]的数据放入视图
               pCenter.add(blockView[i][j]);
               blockView[i][j].getBlockCover().addActionListener(this);//注册监视器
               blockView[i][j].getBlockCover().addMouseListener(this);
               blockView[i][j].seeBlockCover(); //初始时盖住block[i][j]的数据信息
               blockView[i][j].getBlockCover().setEnabled(true);
               blockView[i][j].getBlockCover().setIcon(null);
          }
       }
      showMarkedMineCount.setText(""+markMount);
      repaint();
    }
   public void setRow(int row){
       this.row=row;
   }
   public void setColum(int colum){
       this.colum=colum;
   }
   public void setMineCount(int mineCount){
       this.mineCount=mineCount;
   }
   public void setGrade(String grade) {
       this.grade=grade;
   }
   public void actionPerformed(ActionEvent e) {
        if(e.getSource()!=reStart&&e.getSource()!=time) {
          time.start();
          int m=-,n=-1;
          for(int i=;i<row;i++) { //找到单击的方块以及它的位置索引
             for(int j=;j<colum;j++) {
               if(e.getSource()==blockView[i][j].getBlockCover()){
                  m=i;
                  n=j;
                  break;
               }
             }
          }
          if(block[m][n].isMine()) { //用户输掉游戏
             for(int i=;i<row;i++) {
                for(int j=;j<colum;j++) {
                   blockView[i][j].getBlockCover().setEnabled(false);//用户单击无效了
                   if(block[i][j].isMine())
                      blockView[i][j].seeBlockNameOrIcon(); //视图显示方块上的数据信息
                }
             }
             time.stop();
             spendTime=;             //恢复初始值
             markMount=mineCount;      //恢复初始值
             playMusic.playMusic();    //播放类爆炸的声音
         }
         else {  //扫雷者得到block[m][n]周围区域不是雷的方块
             Stack<Block> notMineBlock =peopleScoutMine.getNoMineAroundBlock(block[m][n]);
             while(!notMineBlock.empty()){
                Block bk = notMineBlock.pop();
                ViewForBlock viewforBlock = bk.getBlockView();
                viewforBlock.seeBlockNameOrIcon();//视图显示方块上的数据信息
                System.out.println("ookk");
             }
         }
      }
      if(e.getSource()==reStart) {
         initMineArea(row,colum,mineCount,grade);
         repaint();
         validate();
      }
      if(e.getSource()==time){
         spendTime++;
         showTime.setText(""+spendTime);
      }
      if(peopleScoutMine.verifyWin()) {  //判断用户是否扫雷成功
         time.stop();
         record.setGrade(grade);
         record.setTime(spendTime);
         record.setVisible(true);       //弹出录入到英雄榜对话框
      }
    }
    public void mousePressed(MouseEvent e){ //探雷:给方块上插一个小旗图标（再次单击取消）
        JButton source=(JButton)e.getSource();
        for(int i=;i<row;i++) {
            for(int j=;j<colum;j++) {
              if(e.getModifiers()==InputEvent.BUTTON_MASK&&
                 source==blockView[i][j].getBlockCover()){
                 if(block[i][j].getIsMark()) {
                        source.setIcon(null);
                        block[i][j].setIsMark(false);
                        markMount=markMount+;
                        showMarkedMineCount.setText(""+markMount);
                 }
                 else{
                        source.setIcon(mark);
                        block[i][j].setIsMark(true);
                        markMount=markMount-;
                        showMarkedMineCount.setText(""+markMount);
                 }
              }
            }
        }
   }
   public void mouseReleased(MouseEvent e){}
   public void mouseEntered(MouseEvent e){}
   public void mouseExited(MouseEvent e){}
   public void mouseClicked(MouseEvent e){}
}

PlayMusic类

package ch.view;
import java.net.URI;
import java.net.URL;
import java.io.File;
import java.applet.Applet;
import java.applet.AudioClip;
public class PlayMusic implements Runnable {
      String musicName;
      Thread threadPlay;
      AudioClip clip = null;
      public PlayMusic(){
         threadPlay = new Thread(this);
      }
      public void run() {
          clip.play();
      }
      public void playMusic(){
          threadPlay = new Thread(this);
          try{
             threadPlay.start();
          }
          catch(Exception exp) {}
      }
      public void setClipFile(String name){
           musicName = name;
          if(musicName == null)
             musicName = "扫雷图像/mine.wav";
          File file=new File(musicName);
          try { URI uri=file.toURI();
                URL url=uri.toURL();
                clip=Applet.newAudioClip(url);
          }
          catch(Exception ee){}
      }
}

Record类

package ch.view;
import javax.swing.*;
import java.awt.event.*;
import ch.data.RecordOrShowRecord;
public class Record extends JDialog implements ActionListener{
   int time=;
   String grade=null;
   String key=null;
   String message=null;
   JTextField textName;
   JLabel label=null;
   JButton confirm,cancel;
   public Record(){
      setTitle("记录你的成绩");
      this.time=time;
      this.grade=grade;
      setBounds(,100,240,160);
      setResizable(false);
      setModal(true);
      confirm=new JButton("确定");
      cancel=new JButton("取消");
      textName=new JTextField();
      textName.setText("匿名");
      confirm.addActionListener(this);
      cancel.addActionListener(this);
      setLayout(new java.awt.GridLayout(,1));
      label=new JLabel("输入您的大名看是否可上榜");
      add(label);
      JPanel p=new JPanel();
      p.add(textName);
      p.add(confirm);
      p.add(cancel);
      add(p);
      setDefaultCloseOperation(JFrame.HIDE_ON_CLOSE);
  }
  public void setGrade(String grade){
      this.grade=grade;
  }
  public void setTime(int time){
      this.time=time;
  }
  public void actionPerformed(ActionEvent e){
     if(e.getSource()==confirm){
         String name = textName.getText();
         writeRecord(name,time);
         setVisible(false);
     }
     if(e.getSource()==cancel){
         setVisible(false);
     }
  }
  public void  writeRecord(String name,int time){
     RecordOrShowRecord rd = new RecordOrShowRecord();
     rd.setTable(grade);
     boolean boo= rd.addRecord(name,time);
     if(boo){
       JOptionPane.showMessageDialog
          (null,"恭喜您，上榜了","消息框", JOptionPane.WARNING_MESSAGE);
     }
     else {
       JOptionPane.showMessageDialog
          (null,"成绩不能上榜","消息框", JOptionPane.WARNING_MESSAGE);
     }
  }
}

ShowRecord类

package ch.view;
import java.awt.*;
import javax.swing.*;
import ch.data.RecordOrShowRecord;
public class ShowRecord extends JDialog {
   String [][] record;
   JTextArea showMess;
   RecordOrShowRecord rd;//负责查询数据库的对象
   public ShowRecord() {
      rd = new RecordOrShowRecord();
      showMess = new JTextArea();
      showMess.setFont(new Font("楷体",Font.BOLD,));
      add(new JScrollPane(showMess));
      setTitle("显示英雄榜");
      setBounds(,200,400,300);
      setDefaultCloseOperation(JFrame.DISPOSE_ON_CLOSE);
   }
   public void setGrade(String grade){
      rd.setTable(grade);
   }
   public void setRecord(String [][]record){
      this.record=record;
   }
   public void showRecord() {
       showMess.setText(null);
       record = rd.queryRecord();
       if(record == null ) {
         JOptionPane.showMessageDialog
            (null,"没人上榜呢","消息框", JOptionPane.WARNING_MESSAGE);
       }
       else {
         for(int i = ;i<record.length;i++){
              int m = i+;
              showMess.append("\n英雄"+m+":"+record[i][]+"         "+"成绩:"+record[i][1]);
              showMess.append("\n--------------------------------");
         }
         setVisible(true);
      }
   }
}

四、代码测试

这里我们创建test包，实现AppTest类来进行代码的测试，代码如下：

package ch.test;
import ch.data.*;
import java.util.Stack;
public class AppTest {
   public static void main(String [] args) {
       Block block[][] = new Block[][10];  //雷区
       for(int i=;i<block.length;i++) {
           for(int j =;j<block[i].length;j++) {
             block[i][j] = new Block();
           }
       }
       LayMines layMines = new LayMines();                        //布雷者
       PeopleScoutMine peopleScoutMine  = new PeopleScoutMine();  //扫雷者
       layMines.layMinesForBlock(block,); //在雷区布雷
       System.out.println("雷区情况:");
       intputShow(block);
       peopleScoutMine.setBlock(block,);  //准备扫雷
       Stack<Block> stack = peopleScoutMine.getNoMineAroundBlock(block[][0]);//扫雷
       if(block[][0].isMine()){
          System.out.println("我的天啊，踩着地雷了啊");
          return;
       }
       System.out.println("扫雷情况:");
       intputProcess(block,stack);
       System.out.println("成功了吗:"+peopleScoutMine.verifyWin());
       if(block[][3].isMine()){
          System.out.println("我的天啊，踩着地雷了啊");
          return;
       }
       stack = peopleScoutMine.getNoMineAroundBlock(block[][3]);//扫雷
       System.out.println("扫雷情况:");
       intputProcess(block,stack);
       System.out.println("成功了吗:"+peopleScoutMine.verifyWin());
   }
   static void intputProcess(Block [][] block,Stack<Block> stack){
       int k =;
       for(int i=;i<block.length;i++) {
           for(int j =;j<block[i].length;j++){
              if(!stack.contains(block[i][j])&&block[i][j].getIsOpen()==false){
                 System.out.printf("%s","■ "); //输出■表示未挖开方块
              }
              else {
                 int m = block[i][j].getAroundMineNumber();//显示周围雷的数目
                 System.out.printf("%s","□"+m);
              }
           }
           System.out.println();
       }
   }
   static void intputShow(Block [][] block){
       int k =;
       for(int i=;i<block.length;i++) {
           for(int j =;j<block[i].length;j++){
              if(block[i][j].isMine()){
                 System.out.printf("%s","#"); //输出#表示是地雷
              }
              else {
                 int m = block[i][j].getAroundMineNumber();//显示周围雷的数目
                 System.out.printf("%s",m);
              }
           }
           System.out.println();
       }
   }
}

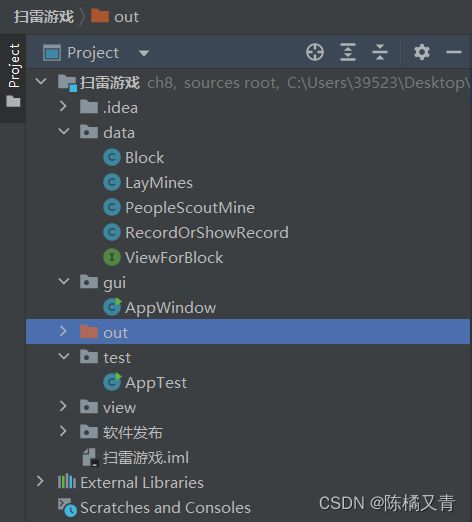

五、项目结构

六、设计总结

本次项目设计是通过 Java语言编制一个扫雷游戏，Java语言是当今较为流行的网络编程语言，它具有面向对象、跨平台、分布应用等特点。这次设计，还有利于加深对 Java课程的进一步了解，也可以巩固所学 Java语言基本知识，增进 Java语言编辑基本功，拓宽常用类库的应用。采用面向对象思想的程序，锻炼了面向对象的设计能力，使编程者通过该教学环节与手段，把所学课程及相关知识加以融会贯通，全面掌握 Java语言的编程思想及面向对象程序设计的方法。
