目录
- Echarts使用动态数据的两种方式
- 1.通过computed
- 2.在data中定义option
- vue Echarts几种常用图表动态数据切换
- 1.柱状图
- 2.平滑折线面积图
- 3.折线图堆叠

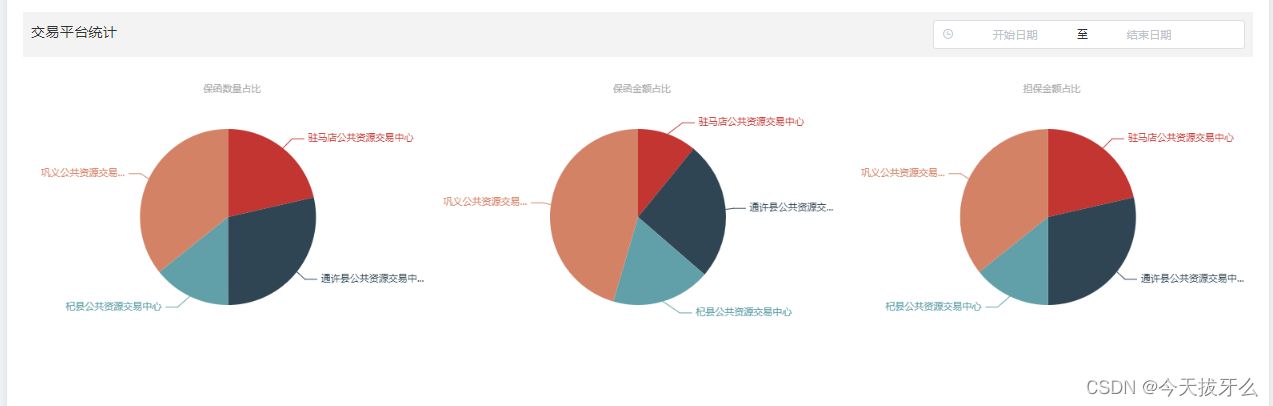

- 4.饼状图
Echarts使用动态数据的两种方式
在使用Echarts时我们数据一般不是静态写死的，而是通过后端接口动态获取的，在此总结两种在vue框架下Echarts使用动态数据的方式。
1.通过computed
| computed: { | |
| options() { | |
| let that = this; | |
| let option = { | |
| tooltip : { | |
| trigger: 'axis', | |
| formatter: function(item) { | |
| return `支付金额 ${item[0].value}元` | |
| } | |
| }, | |
| legend: { | |
| formatter: function(item){ | |
| return `${item}: ${that.priceData.todayPrice}` | |
| } | |
| }, | |
| grid: { | |
| left: '3%', | |
| right: '4%', | |
| bottom: '3%', | |
| containLabel: true | |
| }, | |
| xAxis: { | |
| type: 'category', | |
| boundaryGap: false, | |
| data: [0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24] | |
| }, | |
| yAxis: { | |
| type: 'value', | |
| splitLine: { //网格线 | |
| show: false | |
| } | |
| }, | |
| series: [{ | |
| data: that.priceData.timePriceRange, | |
| type: 'line', | |
| smooth: true, | |
| name: '支付金额', | |
| itemStyle : { | |
| normal : { | |
| color: '#13CE66', | |
| lineStyle:{ | |
| color:'#13CE66' | |
| } | |
| } | |
| } | |
| }] | |
| } | |
| return option; | |
| } | |
| }, | |
| //初始化 | |
| initEcharts(){ | |
| let myChart = Echarts.init(this.$refs.chart); | |
| myChart.setOption(this.options); | |
| } |
2.在data中定义option
通过在初始化之前，直接改变option对应属性值
| //在data中定义option | |
| initEcharts(){ | |
| this.option.yAxis[1].max = this.maxRate; | |
| this.option.xAxis.data = this.dateList; | |
| this.option.series[0].data = this.payPriceTrendList; | |
| let myChart = Echarts.init(this.$refs.chart); | |
| myChart.setOption(this.option); | |
| } |
数据变化后需要再次调init方法刷线图表
vue Echarts几种常用图表动态数据切换
几种常用图表

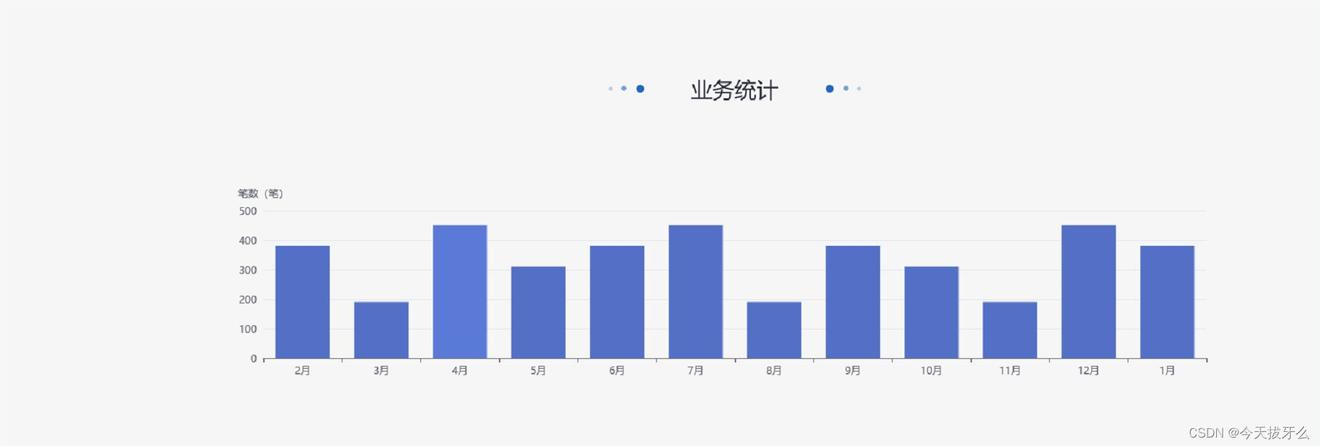

1.柱状图
效果图
代码片段
HTML部分：
<div ref="echartMain1" id="echart-main"></div>
JS部分：
| getEchartData() { | |
| this.$http | |
| .post("/sys/currency/twelvemonthstatistic", { | |
| traddingOrgId:id, | |
| }) | |
| .then(({ data }) => { | |
| //示例数据 | |
| data=[ | |
| { | |
| "ym": "2021-06", | |
| "countOrder": 0, | |
| "sumGuaranteeFee": 0, | |
| "sumBzjAmount": 0, | |
| "sumGuaranteeFeeToWanYuan": 0, | |
| "sumBzjAmountToWanYuan": 0 | |
| }, | |
| { | |
| "ym": "2021-07", | |
| "countOrder": 0, | |
| "sumGuaranteeFee": 0, | |
| "sumBzjAmount": 0, | |
| "sumGuaranteeFeeToWanYuan": 0, | |
| "sumBzjAmountToWanYuan": 0 | |
| }, | |
| { | |
| "ym": "2021-08", | |
| "countOrder": 0, | |
| "sumGuaranteeFee": 0, | |
| "sumBzjAmount": 0, | |
| "sumGuaranteeFeeToWanYuan": 0, | |
| "sumBzjAmountToWanYuan": 0 | |
| }, | |
| { | |
| "ym": "2021-09", | |
| "countOrder": 0, | |
| "sumGuaranteeFee": 0, | |
| "sumBzjAmount": 0, | |
| "sumGuaranteeFeeToWanYuan": 0, | |
| "sumBzjAmountToWanYuan": 0 | |
| }, | |
| { | |
| "ym": "2021-10", | |
| "countOrder": 0, | |
| "sumGuaranteeFee": 0, | |
| "sumBzjAmount": 0, | |
| "sumGuaranteeFeeToWanYuan": 0, | |
| "sumBzjAmountToWanYuan": 0 | |
| }, | |
| { | |
| "ym": "2021-11", | |
| "countOrder": 0, | |
| "sumGuaranteeFee": 0, | |
| "sumBzjAmount": 0, | |
| "sumGuaranteeFeeToWanYuan": 0, | |
| "sumBzjAmountToWanYuan": 0 | |
| }, | |
| { | |
| "ym": "2021-12", | |
| "countOrder": 0, | |
| "sumGuaranteeFee": 0, | |
| "sumBzjAmount": 0, | |
| "sumGuaranteeFeeToWanYuan": 0, | |
| "sumBzjAmountToWanYuan": 0 | |
| }, | |
| { | |
| "ym": "2022-01", | |
| "countOrder": 0, | |
| "sumGuaranteeFee": 0, | |
| "sumBzjAmount": 0, | |
| "sumGuaranteeFeeToWanYuan": 0, | |
| "sumBzjAmountToWanYuan": 0 | |
| }, | |
| { | |
| "ym": "2022-02", | |
| "countOrder": 0, | |
| "sumGuaranteeFee": 0, | |
| "sumBzjAmount": 0, | |
| "sumGuaranteeFeeToWanYuan": 0, | |
| "sumBzjAmountToWanYuan": 0 | |
| }, | |
| { | |
| "ym": "2022-03", | |
| "countOrder": 0, | |
| "sumGuaranteeFee": 0, | |
| "sumBzjAmount": 0, | |
| "sumGuaranteeFeeToWanYuan": 0, | |
| "sumBzjAmountToWanYuan": 0 | |
| }, | |
| { | |
| "ym": "2022-04", | |
| "countOrder": 0, | |
| "sumGuaranteeFee": 0, | |
| "sumBzjAmount": 0, | |
| "sumGuaranteeFeeToWanYuan": 0, | |
| "sumBzjAmountToWanYuan": 0 | |
| }, | |
| { | |
| "ym": "2022-05", | |
| "countOrder": 0, | |
| "sumGuaranteeFee": 0, | |
| "sumBzjAmount": 0, | |
| "sumGuaranteeFeeToWanYuan": 0, | |
| "sumBzjAmountToWanYuan": 0 | |
| } | |
| ] | |
| data.forEach((value, index) => { | |
| this.chartDate.push(value.ym);//X轴月份 | |
| this.chartData.push(value.countOrder);//Y轴数量 | |
| }); | |
| this.echart(); | |
| }); | |
| }, | |
| echart() { | |
| var myChart = echarts.init(this.$refs.echartMain1); | |
| let option = { | |
| xAxis: [ | |
| { | |
| type: "category", | |
| data: this.chartDate, | |
| axisPointer: { | |
| type: "shadow", | |
| }, | |
| }, | |
| ], | |
| yAxis: [ | |
| { | |
| type: "value", | |
| name: "近12个月的出函数量（笔）", | |
| min: 0, | |
| max: 500, | |
| interval: 100, | |
| axisLabel: { | |
| formatter: "{value}", | |
| }, | |
| }, | |
| ], | |
| series: [ | |
| { | |
| data: this.chartData, | |
| type: "bar", | |
| }, | |
| ], | |
| }; | |
| // echarts图表自适应 | |
| myChart.setOption(option); | |
| window.addEventListener("resize", () => { | |
| myChart.resize(); | |
| }); | |
| }, |

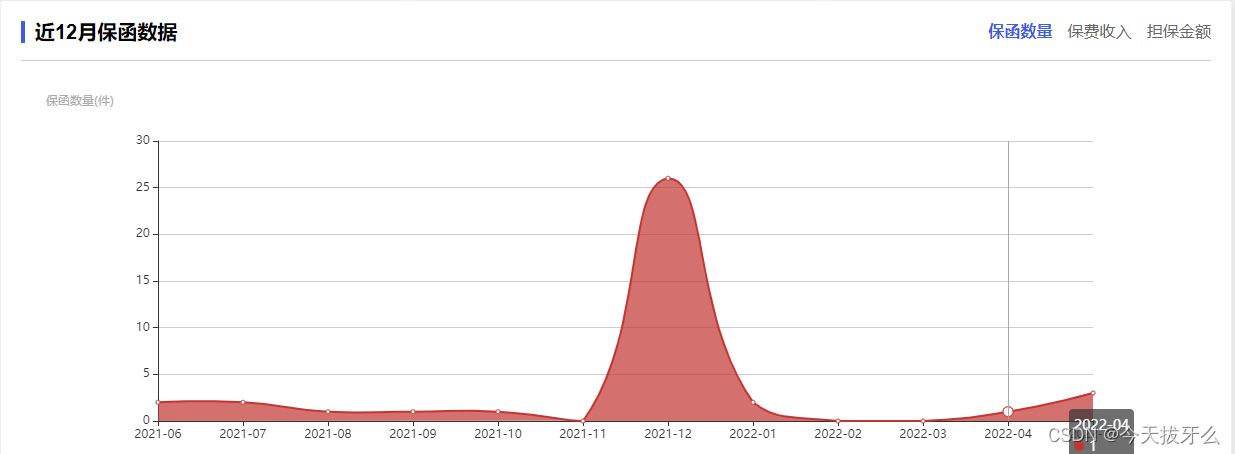

2.平滑折线面积图
效果图
代码片段
HTML部分：
| <el-row :gutter="20" class="tittle"> | |
| <el-col :span="16"> | |
| <div class="text1">近12月保函数据</div> | |
| </el-col> | |
| <!-- <el-col :span="2"> | |
| <div :class="{active:isActive2===1}" @click="getDataMon12(1)" class="cursor-pointer">保函数量</div> | |
| </el-col> | |
| <el-col :span="2"> | |
| <div :class="{active:isActive2===2}" @click="getDataMon12(2)" class="cursor-pointer">保费收入</div> | |
| </el-col> | |
| <el-col :span="2"> | |
| <div :class="{active:isActive2===3}" @click="getDataMon12(3)" class="cursor-pointer">担保金额</div> | |
| </el-col> --> | |
| </el-row> | |
| <div ref="echartDemo1" class="chart-box" style="height: 400px"></div> |
JS部分：
| /** | |
| * 获取面积折线图 filterType 1保函数量 2保费收入 3担保金额 不传返回所有 | |
| */ | |
| getDataMon12(filterType) { | |
| if (filterType) { | |
| this.isActive2 = filterType; | |
| // console.log('filterType高亮的是：',filterType,this.isActive2); | |
| } | |
| var monTop121 = []; | |
| var monTop122 = []; | |
| var monTop123 = []; | |
| var dataTop121 = []; | |
| var dataTop122 = []; | |
| var dataTop123 = []; | |
| this.$http | |
| .post("/sys/data/twelvemonthstatistic", { | |
| dataType: 1, | |
| filterType: filterType | |
| }) | |
| .then(res => { | |
| // console.log("面积折线图数据是：", res.data); | |
| res.data.forEach((value, index) => { | |
| if (filterType == 1) { | |
| monTop121.push(value.ym); | |
| dataTop121.push(value.countOrder); | |
| } else if (filterType == 2) { | |
| monTop122.push(value.ym); | |
| dataTop122.push(value.sumGuaranteeFeeToWanYuan); | |
| } else if (filterType == 3) { | |
| monTop123.push(value.ym); | |
| dataTop123.push(value.sumBzjAmountToWanYuan); | |
| } | |
| }); | |
| if (filterType == 1) { | |
| this.initChartBar1(monTop121, dataTop121); | |
| } else if (filterType == 2) { | |
| this.initChartBar1(monTop122, dataTop122); | |
| } else if (filterType == 3) { | |
| this.initChartBar1(monTop123, dataTop123); | |
| } | |
| }); | |
| }, | |
| /** | |
| * 面积折线图 | |
| */ | |
| initChartBar1(mon, data) { | |
| var option = { | |
| tooltip: { | |
| trigger: "axis" | |
| }, | |
| title: { | |
| subtext: "保函数量(件)", | |
| left: "5%", | |
| top: "0%", | |
| textAlign: "center" | |
| }, | |
| xAxis: { | |
| type: "category", | |
| boundaryGap: false, | |
| data: mon | |
| }, | |
| yAxis: { | |
| type: "value" | |
| }, | |
| series: [ | |
| { | |
| data: data, | |
| type: "line", | |
| smooth: true, | |
| areaStyle: {} | |
| } | |
| ] | |
| }; | |
| this.chartBar1 = echarts.init(this.$refs.echartDemo1); | |
| this.chartBar1.setOption(option); | |
| window.addEventListener("resize", () => { | |
| this.chartBar1.resize(); | |
| }); | |
| }, |
css部分：
| // 选中时的样式 | |
| .active { | |
| color: #00a950; | |
| } |

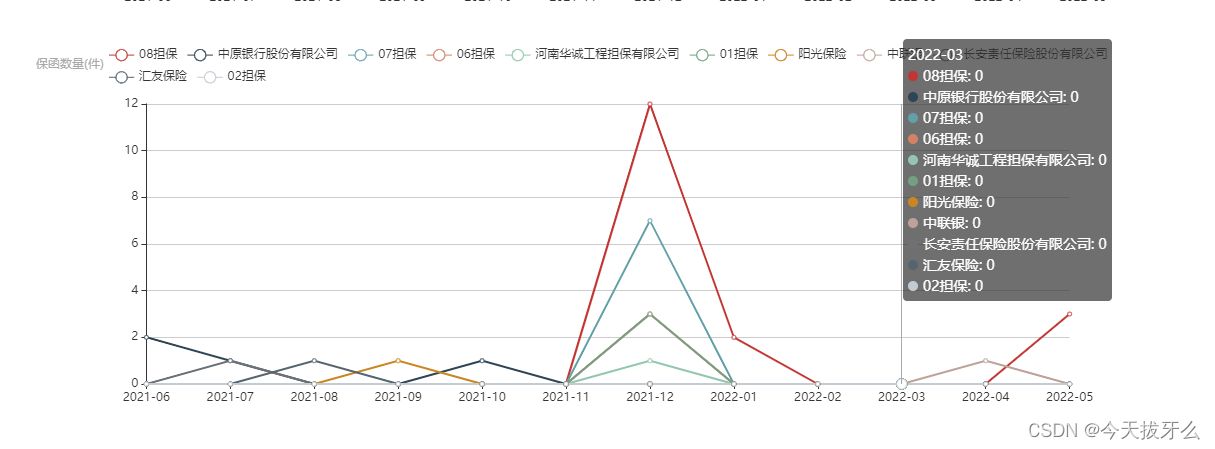

3.折线图堆叠
效果图
代码片段
HTML部分：
| <el-row :gutter="20" class="tittle"> | |
| <el-col :span="16"> | |
| <div class="text1">近12月保函数据</div> | |
| </el-col> | |
| <!-- <el-col :span="2"> | |
| <div :class="{active:isActive2===1}" @click="getDataMonLine(1)" class="cursor-pointer">保函数量</div> | |
| </el-col> | |
| <el-col :span="2"> | |
| <div :class="{active:isActive2===2}" @click="getDataMonLine(2)" class="cursor-pointer">保费收入</div> | |
| </el-col> | |
| <el-col :span="2"> | |
| <div :class="{active:isActive2===3}" @click="getDataMonLine(3)" class="cursor-pointer">担保金额</div> | |
| </el-col> --> | |
| </el-row> | |
| <div ref="echartDemo2" class="chart-box" style="height: 400px"></div> |
JS部分：
| /** | |
| * 获取层叠折线图 filterType 1保函数量 2保费收入 3担保金额 不传返回所有 | |
| */ | |
| getDataMonLine(filterType) { | |
| if(filterType){ | |
| this.isActive2=filterType | |
| // console.log('filterType高亮的是：',filterType,this.isActive2); | |
| } | |
| var monTop121 = []; | |
| var monTop122 = []; | |
| var monTop123 = []; | |
| var dataTop121 = []; | |
| var dataTop122 = []; | |
| var dataTop123 = []; | |
| this.$http | |
| .post("/sys/data/guaranteeorgtwelvemonthstatistic", { | |
| dataType: 1, | |
| filterType:filterType, | |
| }) | |
| .then((res) => { | |
| // console.log("折线图数据/投标保函按月统计表格数据是：", res.data); | |
| this.twelvemonthDataLine = res.data; | |
| // 示例数据 | |
| // this.twelvemonthDataLine=[ | |
| // { detailList: [ | |
| // {countOrder: 0, guaranteeOrgName: "08担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "01担保"}, | |
| // {countOrder: 4, guaranteeOrgName: "中原银行股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "07担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "河南华诚工程担保有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "长安责任保险股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "阳光保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "中联银"}, | |
| // {countOrder: 0, guaranteeOrgName: "汇友保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "02担保"}, | |
| // ], | |
| // ym: "2021-06"}, | |
| // {detailList: [ | |
| // {countOrder: 20, guaranteeOrgName: "08担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "01担保"}, | |
| // {countOrder: 9, guaranteeOrgName: "中原银行股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "07担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "河南华诚工程担保有限公司"}, | |
| // {countOrder: 1, guaranteeOrgName: "长安责任保险股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "阳光保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "中联银"}, | |
| // {countOrder: 0, guaranteeOrgName: "汇友保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "02担保"}, | |
| // ], | |
| // ym: "2021-07"}, | |
| // {detailList: [ | |
| // {countOrder: 6, guaranteeOrgName: "08担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "01担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "中原银行股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "07担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "河南华诚工程担保有限公司"}, | |
| // {countOrder: 1, guaranteeOrgName: "长安责任保险股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "阳光保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "中联银"}, | |
| // {countOrder: 1, guaranteeOrgName: "汇友保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "02担保"}, | |
| // ], | |
| // ym: "2021-08"}, | |
| // {detailList: [ | |
| // {countOrder: 0, guaranteeOrgName: "08担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "01担保"}, | |
| // {countOrder: 4, guaranteeOrgName: "中原银行股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "07担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "河南华诚工程担保有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "长安责任保险股份有限公司"}, | |
| // {countOrder: 1, guaranteeOrgName: "阳光保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "中联银"}, | |
| // {countOrder: 0, guaranteeOrgName: "汇友保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "02担保"}, | |
| // ], | |
| // ym: "2021-09"}, | |
| // {detailList: [ | |
| // {countOrder: 0, guaranteeOrgName: "08担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "01担保"}, | |
| // {countOrder: 4, guaranteeOrgName: "中原银行股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "07担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "河南华诚工程担保有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "长安责任保险股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "阳光保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "中联银"}, | |
| // {countOrder: 0, guaranteeOrgName: "汇友保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "02担保"}, | |
| // ],ym: "2021-10"}, | |
| // {detailList: [ | |
| // {countOrder: 0, guaranteeOrgName: "08担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "01担保"}, | |
| // {countOrder: 1, guaranteeOrgName: "中原银行股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "07担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "河南华诚工程担保有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "长安责任保险股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "阳光保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "中联银"}, | |
| // {countOrder: 0, guaranteeOrgName: "汇友保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "02担保"}, | |
| // ],ym: "2021-11"}, | |
| // {detailList: [ | |
| // {countOrder: 0, guaranteeOrgName: "08担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "01担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "中原银行股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "07担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "河南华诚工程担保有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "长安责任保险股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "阳光保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "中联银"}, | |
| // {countOrder: 0, guaranteeOrgName: "汇友保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "02担保"}, | |
| // ],ym: "2021-12"}, | |
| // {detailList: [ | |
| // {countOrder: 12, guaranteeOrgName: "08担保"}, | |
| // {countOrder: 4, guaranteeOrgName: "01担保"}, | |
| // {countOrder: 4, guaranteeOrgName: "中原银行股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "07担保"}, | |
| // {countOrder: 7, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 3, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 1, guaranteeOrgName: "河南华诚工程担保有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "长安责任保险股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "阳光保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "中联银"}, | |
| // {countOrder: 0, guaranteeOrgName: "汇友保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "02担保"}, | |
| // ],ym: "2022-01"}, | |
| // {detailList: [ | |
| // {countOrder: 0, guaranteeOrgName: "08担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "01担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "中原银行股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "07担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "河南华诚工程担保有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "长安责任保险股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "阳光保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "中联银"}, | |
| // {countOrder: 0, guaranteeOrgName: "汇友保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "02担保"}, | |
| // ],ym: "2022-02"}, | |
| // {detailList: [ | |
| // {countOrder: 0, guaranteeOrgName: "08担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "01担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "中原银行股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "07担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "河南华诚工程担保有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "长安责任保险股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "阳光保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "中联银"}, | |
| // {countOrder: 0, guaranteeOrgName: "汇友保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "02担保"}, | |
| // ],ym: "2022-03"}, | |
| // {detailList: [ | |
| // {countOrder: 0, guaranteeOrgName: "08担保"}, | |
| // {countOrder: 6, guaranteeOrgName: "01担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "中原银行股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "07担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "河南华诚工程担保有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "长安责任保险股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "阳光保险"}, | |
| // {countOrder: 1, guaranteeOrgName: "中联银"}, | |
| // {countOrder: 0, guaranteeOrgName: "汇友保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "02担保"}, | |
| // ],ym: "2022-04"}, | |
| // {detailList: [ | |
| // {countOrder: 3, guaranteeOrgName: "08担保"}, | |
| // {countOrder: 13, guaranteeOrgName: "01担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "中原银行股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "07担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "06担保"}, | |
| // {countOrder: 0, guaranteeOrgName: "河南华诚工程担保有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "长安责任保险股份有限公司"}, | |
| // {countOrder: 0, guaranteeOrgName: "阳光保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "中联银"}, | |
| // {countOrder: 0, guaranteeOrgName: "汇友保险"}, | |
| // {countOrder: 0, guaranteeOrgName: "02担保"}, | |
| // ],ym: "2022-05"} | |
| // ] | |
| this.twelvemonthDataLine.forEach((value, index) => { | |
| if (filterType == 1) { | |
| monTop121.push(value.ym); | |
| dataTop121.push(value.detailList); | |
| } | |
| else if (filterType == 2) { | |
| monTop122.push(value.ym); | |
| dataTop122.push(value.sumGuaranteeFeeToWanYuan); | |
| } else if (filterType == 3) { | |
| monTop123.push(value.ym); | |
| dataTop123.push(value.sumBzjAmountToWanYuan); | |
| } | |
| }); | |
| if (filterType == 1) { | |
| this.initChartLine(monTop121, dataTop121) | |
| } else if (filterType == 2) { | |
| this.initChartLine(monTop122, dataTop122); | |
| } else if (filterType == 3) { | |
| this.initChartLine(monTop123,dataTop123); | |
| } | |
| }); | |
| }, | |
| /** | |
| * 层叠折线图 | |
| */ | |
| initChartLine(mon, data) { | |
| // console.log('monTop121:',mon); | |
| let series = []; | |
| let leggend = []; | |
| for (let i = 0; i < data.length; i++) { | |
| let countOrders = []; | |
| leggend.push(data[i].guaranteeOrgName); | |
| // countOrders=[0,1,5,2,4,5,3,1,4,9,14,2] | |
| var arr = data[i]; | |
| arr.forEach((item, index) => { | |
| countOrders.push(item.countOrder); | |
| }); | |
| // 将数据组装到series数组，供option配置使用 | |
| series.push({ | |
| // 每个担保机构，对应一条折线图 | |
| name: data[i].guaranteeOrgName, | |
| type: "line", | |
| data: countOrders // 每个担保机构，对应的横坐标的值组成的数组 | |
| }); | |
| } | |
| console.log(leggend); | |
| console.log("series是：", series); | |
| var option = { | |
| tooltip: { | |
| trigger: "axis" | |
| }, | |
| title: { | |
| subtext: "保函数量(件)", | |
| left: "5%", | |
| top: "0%", | |
| textAlign: "center" | |
| }, | |
| legend: { | |
| padding: 10, | |
| tooltip: { | |
| show: true | |
| }, | |
| data: leggend | |
| }, | |
| xAxis: { | |
| type: "category", | |
| boundaryGap: false, | |
| data: mon | |
| }, | |
| yAxis: { | |
| type: "value" | |
| }, | |
| series: series | |
| }; | |
| this.chartLine = echarts.init(this.$refs.echartDemo2); | |
| this.chartLine.setOption(option); | |
| window.addEventListener("resize", () => { | |
| this.chartLine.resize(); | |
| }); | |
| }, |
css部分：
| // 选中时的样式 | |
| .active { | |
| color: #00a950; | |
| } |
4.饼状图
效果图
代码片段
HTML部分：
| <div class="piechart"> | |
| <div class="tittle"> | |
| <div class="text1">交易平台统计</div> | |
| <el-date-picker v-model=" | |
| type="datetimerange" :picker-options="pickerOptions2" range-separator="至" start-placeholder="开始日期" end-placeholder="结束日期" value-format="yyyy-MM-dd HH:mm:ss" :default-time="['00:00:01', '23:59:59']" style="width: 390px" @change="timeHandle(4)"> | |
| </el-date-picker> | |
| </div> | |
| <div ref="echartDemo3" class="chart-box" style="height: 400px"></div> | |
| </div> |
JS部分：
| // 时间选择修改时数据刷新 1为投标保函按月合计 2为出函平台统计的时间选择器 3为出函机构统计的时间选择器 4为交易平台统计的时间选择器 | |
| timeHandle(num) { | |
| var that = this; | |
| if (num == 1) { | |
| this.getMonthData(12, this.value1); | |
| // this.value1="" | |
| } else if (num == 2) { | |
| this.getIssuinGuarantee("", this.value2); | |
| // this.value2="" | |
| } else if (num == 3) { | |
| this.getCensusData("", this.value3); | |
| // this.value3="" | |
| } else { | |
| this.getTradeData("", this.value4); | |
| // this.value4="" | |
| } | |
| }, | |
| getIssuinGuarantee(days, time) { | |
| if (days) { | |
| this.isActive3 = days; | |
| // console.log('days高亮的是：',days,this.isActive3); | |
| } | |
| this.$http({ | |
| url: "/sys/data/guaranteeorgplatformstatistic", | |
| method: "post", | |
| data: { | |
| dataType: 1, | |
| days: days, | |
| startTime: !time[0] ? "" : time[0], | |
| endTime: !time[1] ? "" : time[1] | |
| } | |
| }).then(res => { | |
| // console.log("出函平台数据：", res.data); | |
| this.issuinGuaranteeData = res.data; | |
| //后台响应数据是 | |
| this.issuinGuaranteeData=[ | |
| { | |
| countOrder: 3 | |
| countOrderRatio: 21.42 | |
| sumBzjAmount: 3000 | |
| sumBzjAmountRatio: 21.42 | |
| sumBzjAmountToWanYuan: 0.3 | |
| sumGuaranteeFee: 600 | |
| sumGuaranteeFeeRatio: 10.9 | |
| sumGuaranteeFeeToWanYuan: 0.06 | |
| traddingOrgId: "303c3dfaa3c54864a1b67f5fee694231" | |
| traddingOrgName: "驻马店公共资源交易中心" | |
| }, | |
| { | |
| countOrder: 4 | |
| countOrderRatio: 28.57 | |
| sumBzjAmount: 4000 | |
| sumBzjAmountRatio: 28.57 | |
| sumBzjAmountToWanYuan: 0.4 | |
| sumGuaranteeFee: 1400 | |
| sumGuaranteeFeeRatio: 25.45 | |
| sumGuaranteeFeeToWanYuan: 0.14 | |
| traddingOrgId: "57f2e9ceb8834fe7ac37e06f9dab7aef" | |
| traddingOrgName: "通许县公共资源交易中心" | |
| }, | |
| { | |
| countOrder: 2 | |
| countOrderRatio: 14.28 | |
| sumBzjAmount: 2000 | |
| sumBzjAmountRatio: 14.28 | |
| sumBzjAmountToWanYuan: 0.2 | |
| sumGuaranteeFee: 1000 | |
| sumGuaranteeFeeRatio: 18.18 | |
| sumGuaranteeFeeToWanYuan: 0.1 | |
| traddingOrgId: "8af00e2ff8ea458da5b122495ee83303" | |
| traddingOrgName: "杞县公共资源交易中心" | |
| }, | |
| { | |
| countOrder: 5 | |
| countOrderRatio: 35.73 | |
| sumBzjAmount: 5000 | |
| sumBzjAmountRatio: 35.73 | |
| sumBzjAmountToWanYuan: 0.5 | |
| sumGuaranteeFee: 2500 | |
| sumGuaranteeFeeRatio: 45.47 | |
| sumGuaranteeFeeToWanYuan: 0.25 | |
| traddingOrgId: "c83acb963a4140438984b196abcec46c" | |
| traddingOrgName: "巩义公共资源交易中心" | |
| } | |
| ] | |
| this.initChartBar3(this.issuinGuaranteeData); | |
| }); | |
| }, | |
| /** | |
| * 3饼图 | |
| */ | |
| initChartBar3(data) { | |
| var temp1 = []; | |
| var temp2 = []; | |
| var temp3 = []; | |
| data.forEach((value, index) => { | |
| temp1.push({ | |
| name: value.guaranteeOrgName, | |
| value: value.countOrderRatio | |
| }); | |
| temp2.push({ | |
| name: value.guaranteeOrgName, | |
| value: value.sumGuaranteeFeeRatio | |
| }); | |
| temp3.push({ | |
| name: value.guaranteeOrgName, | |
| value: value.sumBzjAmountRatio | |
| }); | |
| }); | |
| // console.log(temp1) | |
| // console.log(temp2) | |
| // console.log(temp3) | |
| var option = { | |
| tooltip: { | |
| trigger: "item", | |
| formatter: "{b} : {c} ({d}%)" | |
| }, | |
| title: [ | |
| { | |
| subtext: "保函数量占比", | |
| left: "16.67%", | |
| top: "5%", | |
| textAlign: "center" | |
| }, | |
| { | |
| subtext: "保函金额占比", | |
| left: "50%", | |
| top: "5%", | |
| textAlign: "center" | |
| }, | |
| { | |
| subtext: "担保金额占比", | |
| left: "83.33%", | |
| top: "5%", | |
| textAlign: "center" | |
| } | |
| ], | |
| series: [ | |
| { | |
| type: "pie", | |
| radius: "55%", | |
| center: ["50%", "50%"], | |
| data: temp1, | |
| right: "66.6667%" | |
| }, | |
| { | |
| type: "pie", | |
| radius: "55%", | |
| center: ["50%", "50%"], | |
| data: temp2, | |
| left: "33.3333%", | |
| right: "33.3333%" | |
| }, | |
| { | |
| type: "pie", | |
| radius: "55%", | |
| center: ["50%", "50%"], | |
| data: temp3, | |
| left: "66.6667%" | |
| } | |
| ] | |
| }; | |
| this.chartBar3 = echarts.init(this.$refs.echartDemo3); | |
| this.chartBar3.setOption(option); | |
| window.addEventListener("resize", () => { | |
| this.chartBar3.resize(); | |
| }); | |
| }, |
css部分：
| // 选中时的样式 | |
| .active { | |
| color: #00a950; | |
| } | |
