pdfjs-dist 的工作原理：把获取到的 pbf 的文件的数据流， 利用 canvas转换成图片
turnjs 把多个元素做成翻书的特效
我接手了一个展示大屏的项目， 其中有一个地方，就是要以翻书的形式来预览 pdf文件
如图
首先 安装 psfjs-dist
npm install --save pdfjs-dist
turnjs 是jquery的项目， 所以， 我们要在vuejs中安装 jquery
vue中安装jquery的方法
npm install jquery --save
然后在 vue.config.js中配置
| module.exports = { | |
| chainWebpack: config => { | |
| config.plugin('provide').use(webpack.ProvidePlugin, [{ | |
| $: 'jquery', | |
| jquery: 'jquery', | |
| jQuery: 'jquery', | |
| 'window.jQuery': 'jquery' | |
| }]) | |
| } |
下载trunjs
我写这个笔记的时候， 官网好像下载出错了，我找到了另一种下载的方法

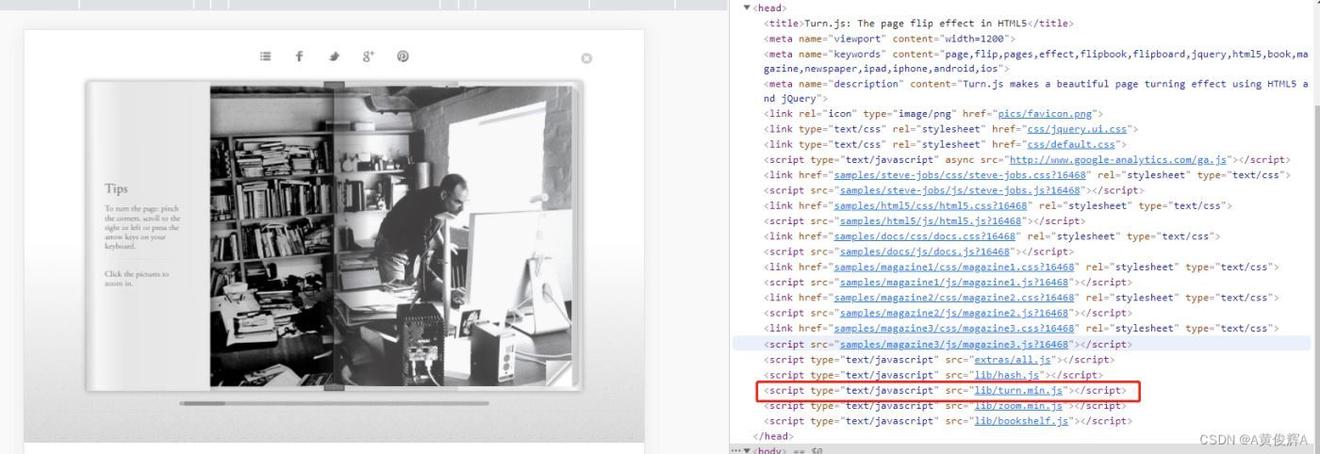

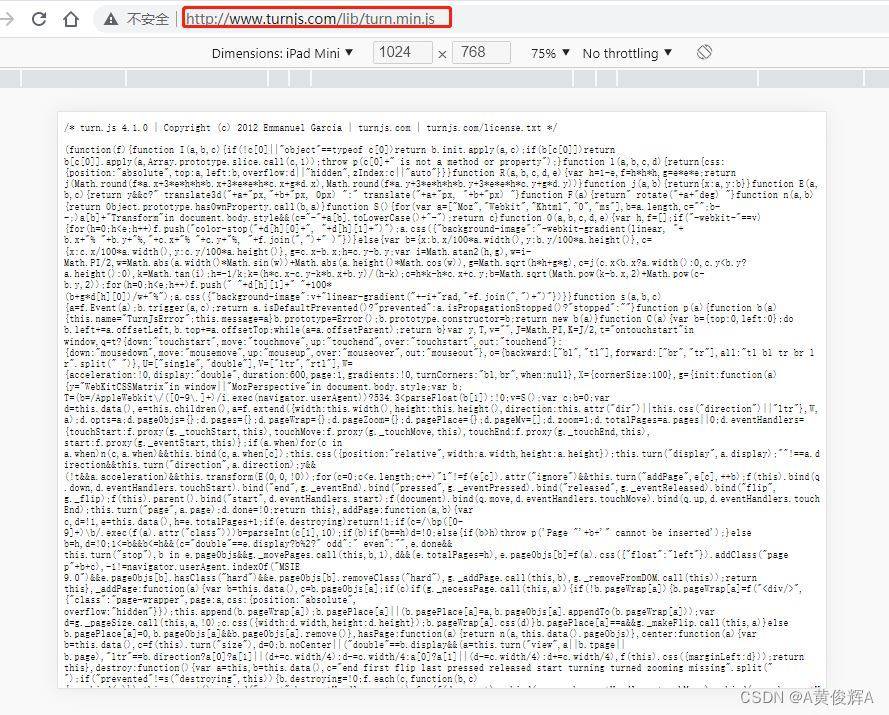

把官网的示例随便打开了个， 找到 上图中的地址
这样也可以得到我们想要的 trunjs库
上面是安装， 下面我们开始使用
| <div class="body-content" style="height:px;"> | |
| <v-touch @swipeleft="changeindexleft()" @swiperight="changeindexright(1)"> | |
| <div id="magazine" style="height:850px;width:1200px;margin-left:0 !important;"> | |
| <!-- 这里的 magazine 就是翻页组件的容器 --> | |
| </div> | |
| </v-touch> | |
| <!-- 这里的 docview 是用来存放 pdf转成图片时，所用到的 canvas 标签的--> | |
| <div style="margin: auto; text-align: center; display: none"> | |
| <div id="docView" ref="docView1"></div> | |
| </div> | |
| </div> |
代码部份
引入 jquery 和 turnjs
| import $ from "jquery"; | |
| import * as PDFJS from "pdfjs-dist"; | |
| import turn from "../utils/lib/turn.js" | |
| //初始化pdf插件 | |
| /* | |
| ** @param fileUrl pdf有效的查看地址 | |
| ** （、线上地址(如：http://www.xxx.com) | |
| **、本地public地址（例如：/static/view.pdf）） | |
| ** @param pdfPicturePath pdf转化的图片地址-用于放大查看所有pdf图片 | |
| */ | |
| readPdf(fileUrl,index) { | |
| //这个index 是我代码中要用的， 如果单独使用的话， 可以不要 index 这个参数 | |
| let self = this; | |
| let loadingTask = PDFJS.getDocument(fileUrl); //读取pdf文件 | |
| console.log(loadingTask, '-----------loadingTask'); | |
| loadingTask.promise | |
| .then(function (pdf) { | |
| if (pdf) { | |
| // pdf 总页数 | |
| const pageNum = pdf.numPages; | |
| for (let i =; i <= pageNum; i++) { | |
| // 生成每页 pdf 的 canvas | |
| const canvas = document.createElement('canvas'); | |
| canvas.id = 'page'+index+'Num' + i; | |
| canvas.className = 'h'+index; | |
| // 将 canvas 添加到 dom 中,docView(存放canvas的div) | |
| let docViewX = "docView"+index; | |
| console.log(docViewX); | |
| self.$refs[docViewX].append(canvas); | |
| //getContext() 方法返回一个用于在画布上绘图的环境。 | |
| const context = canvas.getContext('d'); | |
| self.openPage(pdf, i, context); | |
| } | |
| setTimeout(() => { | |
| self.exportImg(self,index); | |
| },); | |
| } | |
| }) | |
| .catch(function (reason) { | |
| console.error('Error: ' + reason); | |
| }); | |
| }, | |
| //pdf转成canvas | |
| /* | |
| ** @param loading pdf生成图片时的加载状态 | |
| ** @param scale 控制 canvas显示的大小 | |
| */ | |
| openPage(pdfFile, pageNumber, context) { | |
| let that = this; | |
| pdfFile.getPage(pageNumber).then(function (page) { | |
| // reference canvas via context | |
| let viewport = page.getViewport({scale:}); | |
| let scale =( / viewport.height).toFixed(2) //这里根把自已的项目需求，宽高进行调整 | |
| let viewport = page.getViewport({scale:scale}); | |
| let canvas = context.canvas; | |
| canvas.width = viewport.width; | |
| canvas.height = viewport.height; | |
| canvas.style.width = '%'; | |
| canvas.style.height = '%'; | |
| let renderContext = { | |
| canvasContext: context, | |
| viewport: viewport | |
| }; | |
| page.render(renderContext); | |
| that.loading = false; | |
| }); | |
| return; | |
| }, | |
| //canvas转成图片（可根据具体情况，进行图片转化显示）这里我把所有图片的base存放在数组里面，方便放大查看，也可以直接把生成图片标签进行图片展示 | |
| // 转图片 | |
| exportImg(self,index) { | |
| //let canvaslist= document.querySelectorAll('canvas'); | |
| let canvaslist = document.getElementsByClassName("h"+index); | |
| let pdfPicturePathX = "pdfPicturePath"+index; | |
| this[pdfPicturePathX] = []; | |
| //这里把所有的图片地址放入到 pdfPicturePath 数组中去 | |
| for (let i =; i < canvaslist.length; i++) { | |
| // let canvas = document.getElementById("pageNum" + (i +)); | |
| // // 将 canvas 转成 base 格式的图片 | |
| // let baseImgSrc = (canvas as any).toDataURL("image/png") | |
| // const img = document.createElement("img") | |
| // img.setAttribute('class', 'pdf-img'); | |
| // img.src = baseImgSrc | |
| // img.style.width = '%'; | |
| // // 将图片挂载到 dom 中 | |
| // (self.$refs as any).docView.append(img); | |
| let canvasNode = document.getElementById('page'+index+'Num' + (i +)); | |
| // 将 canvas 转成 base 格式的图片 | |
| if(canvasNode){ | |
| this[pdfPicturePathX].push({page: i +, pic: canvasNode.toDataURL('image/png'), name: i + 1}) | |
| }else { | |
| continue; | |
| } | |
| //console.log('--------------aaa-------------', this.pdfPicturePath); | |
| } | |
| //到上面就是把pdf文件转成 base格式的图片， 之后把它们存在 pdfPicturePath1的数组中 | |

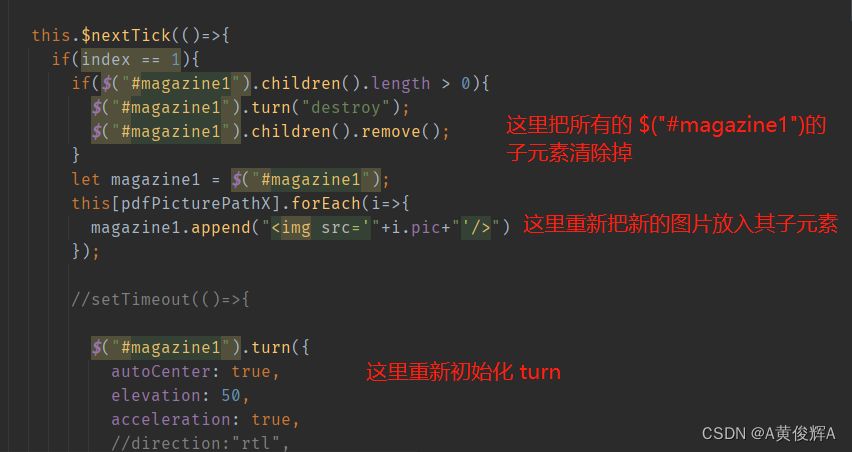

| this.$nextTick(()=>{ | |
| if(index ==){ | |
| if($("#magazine").children().length > 0){ | |
| $("#magazine").turn("destroy"); | |
| $("#magazine").children().remove(); | |
| } | |
| let magazine = $("#magazine1"); | |
| this[pdfPicturePathX].forEach(i=>{ | |
| magazine.append("<img src='"+i.pic+"'/>") | |
| }); | |
| //setTimeout(()=>{ | |
| $("#magazine").turn({ | |
| autoCenter: true, | |
| elevation:, | |
| acceleration: true, | |
| //direction:"rtl", | |
| // when: { | |
| // turned: function() { | |
| // //当前页 | |
| // // console.log("Current view: ", $(this).turn("view")); | |
| // // //总页数 | |
| // // console.log( | |
| // // "#magazine has " + $("#magazine").turn("pages") + " pages" | |
| // // ); | |
| // //$("#magazine").turn("hasPage",); | |
| // //$("#magazine").turn("pages",); | |
| // } | |
| // } | |
| }) | |
| $("#magazine").turn("center"); | |
| $("#magazine").turn("page"); | |
| //console.log($("#magazine").turn("pages")); | |
| $("#magazine").bind("start",function(e,p,c){ | |
| if(c == "tl"||c == 'tr'){ | |
| e.preventDefault(); | |
| } | |
| }) | |
| //}, | |
| } | |
| }, | |
下面是我项目的一个完现代码
| <template> | |
| <div id="index" ref="appRef"> | |
| <div class="bg"> | |
| <dv-loading v-show="loading">Loading...</dv-loading> | |
| <div v-show="!loading" class="host-body"> | |
| <!-- 第一行--> | |
| <div class="row"> | |
| <div class="title-wrapper"> | |
| <img src="../assets/pic_rczs_title.png"> | |
| <fullscreen ref="fullscreen" style="float:right"></fullscreen> | |
| </div> | |
| </div> | |
| <!-- 第二行 --> | |
| <div class="row"> | |
| <div class="item_"> | |
| <div class="picwrapper" v-show="showfengmian"> | |
| <div class="initem" v-if="categoryslist[]" @click="fengmianclick(1,0)"> | |
| <img :src="categoryslist[].more.thumbnail"/> | |
| <div class="intitle">{{categoryslist[].name}}</div> | |
| </div> | |
| <div class="initem" v-if="categoryslist[]" @click="fengmianclick(1,1)"> | |
| <img :src="categoryslist[].more.thumbnail"/> | |
| <div class="intitle">{{categoryslist[].name}}</div> | |
| </div> | |
| </div> | |
| <div class="detailwrapper" v-show="!showfengmian"> | |
| <div class="dtop"> | |
| <img src="../assets/pic_qyzc_shrcxzsy.png"/> | |
| </div> | |
| <div class="btmwrapper"> | |
| <div class="left"> | |
| <img src="../assets/icon_fanhui.png" @click="backtoshow()"/> | |
| </div> | |
| <div class="right"> | |
| <div class="content" v-show="!showpdf"> | |
| <div class="listdetailwrapper"> | |
| <div class="listtop"> | |
| <multiselect v-model="value" | |
| placeholder="请选择" | |
| open-direction="bottom" | |
| :show-labels="false" | |
| trackBy="id" | |
| label="name" | |
| @select="chooseSelect" | |
| :options="selectoptions"> | |
| </multiselect> | |
| </div> | |
| <div class="listwrapper"> | |
| <div @click="chooselist(,index,item)" class="listitem" :class="selectItemIndex1 == index?'coloractive':''" v-for="(item,index) in selectList1" :key="item.id">{{item.name}}<span style="float: right" v-if="selectItemIndex1 == index"> 》</span></div> | |
| </div> | |
| </div> | |
| <div class="detail" :style="{height:ispdf?'':'100%'}"> | |
| <div v-if="!ispdf" class="markdown-body editor" v-html="articleDetail1.post_content"></div> | |
| <div class="img-wrapper" v-if="ispdf" @click="pdfshowClick(1,articleDetail1.more.files)"> | |
| <img class="img" src="../assets/pic_mrfm_wj@2x.png"/> | |
| </div> | |
| </div> | |
| </div> | |
| <div class="pdf-wrapper" v-show="showpdf"> | |
| <div class="body-content" style="height:px;"> | |
| <v-touch @swipeleft="changeindexleft()" @swiperight="changeindexright(1)"> | |
| <div id="magazine" style="height:850px;width:1200px;margin-left:0 !important;"> | |
| <!-- <div v-for="(item, index) in pdfPicturePath" :key="`test_${index}`">--> | |
| <!-- <div>--> | |
| <!-- <v-touch @swipeleft="changeindexleft()" @swiperight="changeindexright(1)">--> | |
| <!-- <img :src="item.pic" class="pdf_pic" />--> | |
| <!-- </v-touch>--> | |
| <!-- </div>--> | |
| <!-- </div>--> | |
| </div> | |
| </v-touch> | |
| <div style="margin: auto; text-align: center; display: none"> | |
| <div id="docView" ref="docView1"></div> | |
| </div> | |
| </div> | |
| </div> | |
| </div> | |
| </div> | |
| </div> | |
| </div> | |
| <div class="item_"> | |
| <div class="picwrapper" v-show="showfengmian"> | |
| <div class="initem" v-if="categoryslist[]" @click="fengmianclick(2,2)"> | |
| <img :src="categoryslist[].more.thumbnail"/> | |
| <div class="intitle">{{categoryslist[].name}}</div> | |
| </div> | |
| <div class="initem" v-if="categoryslist[]" @click="fengmianclick(2,3)"> | |
| <img :src="categoryslist[].more.thumbnail"/> | |
| <div class="intitle">{{categoryslist[].name}}</div> | |
| </div> | |
| </div> | |
| <div class="detailwrapper" v-show="!showfengmian"> | |
| <div class="dtop"> | |
| <img src="../assets/pic_qyzc_shrcxzsy.png"/> | |
| </div> | |
| <div class="btmwrapper"> | |
| <div class="left"> | |
| <img src="../assets/icon_fanhui.png" @click="backtoshow()"/> | |
| </div> | |
| <div class="right"> | |
| <div class="content" v-show="!showpdf"> | |
| <div class="listdetailwrapper"> | |
| <div class="listtop"> | |
| <multiselect v-model="value" | |
| placeholder="请选择" | |
| open-direction="bottom" | |
| :show-labels="false" | |
| trackBy="id" | |
| label="name" | |
| @select="chooseSelect" | |
| :options="selectoptions"> | |
| </multiselect> | |
| </div> | |
| <div class="listwrapper"> | |
| <div @click="chooselist(,index,item)" class="listitem" :class="selectItemIndex2 == index?'coloractive':''" v-for="(item,index) in selectList2" :key="item.id">{{item.name}}<span style="float: right" v-if="selectItemIndex2 == index"> 》</span></div> | |
| </div> | |
| </div> | |
| <div class="detail" :style="{height:ispdf?'':'100%'}"> | |
| <div v-if="!ispdf" class="markdown-body editor" v-html="articleDetail2.post_content"></div> | |
| <div class="img-wrapper" v-if="ispdf" @click="pdfshowClick(2,articleDetail2.more.files)"> | |
| <img class="img" src="../assets/pic_mrfm_wj@2x.png"/> | |
| </div> | |
| </div> | |
| </div> | |
| <div class="pdf-wrapper" v-show="showpdf"> | |
| <div class="body-content" style="height:px;"> | |
| <v-touch @swipeleft="changeindexleft()" @swiperight="changeindexright(2)"> | |
| <div id="magazine" style="height:850px;width:1200px;margin-left:0 !important;"> | |
| <!-- <div v-for="(item, index) in pdfPicturePath" :key="`test_${index}`">--> | |
| <!-- <div>--> | |
| <!-- <v-touch @swipeleft="changeindexleft()" @swiperight="changeindexright(2)">--> | |
| <!-- <img :src="item.pic" class="pdf_pic" />--> | |
| <!-- </v-touch>--> | |
| <!-- </div>--> | |
| <!-- </div>--> | |
| </div> | |
| </v-touch> | |
| <div style="margin: auto; text-align: center; display: none"> | |
| <div id="docView" ref="docView2"></div> | |
| </div> | |
| </div> | |
| </div> | |
| </div> | |
| </div> | |
| </div> | |
| </div> | |
| <div class="item_"> | |
| <div class="picwrapper" v-show="showfengmian"> | |
| <div class="initem" v-if="categoryslist[]" @click="fengmianclick(3,4)"> | |
| <img :src="categoryslist[].more.thumbnail"/> | |
| <div class="intitle">{{categoryslist[].name}}</div> | |
| </div> | |
| <div class="initem" v-if="categoryslist[]" @click="fengmianclick(3,5)"> | |
| <img :src="categoryslist[].more.thumbnail"/> | |
| <div class="intitle">{{categoryslist[].name}}</div> | |
| </div> | |
| </div> | |
| <div class="detailwrapper" v-show="!showfengmian"> | |
| <div class="dtop"> | |
| <img src="../assets/pic_qyzc_shrcxzsy.png"/> | |
| </div> | |
| <div class="btmwrapper"> | |
| <div class="left"> | |
| <img src="../assets/icon_fanhui.png" @click="backtoshow()"/> | |
| </div> | |
| <div class="right"> | |
| <div class="content" v-show="!showpdf"> | |
| <div class="listdetailwrapper"> | |
| <div class="listtop"> | |
| <multiselect v-model="value" | |
| placeholder="请选择" | |
| open-direction="bottom" | |
| :show-labels="false" | |
| trackBy="id" | |
| label="name" | |
| @select="chooseSelect" | |
| :options="selectoptions"> | |
| </multiselect> | |
| </div> | |
| <div class="listwrapper"> | |
| <div @click="chooselist(,index,item)" class="listitem" :class="selectItemIndex3 == index?'coloractive':''" v-for="(item,index) in selectList3" :key="item.id">{{item.name}}<span style="float: right" v-if="selectItemIndex3 == index"> 》</span></div> | |
| </div> | |
| </div> | |
| <div class="detail" :style="{height:ispdf?'':'100%'}"> | |
| <div v-if="!ispdf" class="markdown-body editor" v-html="articleDetail3.post_content"></div> | |
| <div class="img-wrapper" v-if="ispdf" @click="pdfshowClick(3,articleDetail3.more.files)"> | |
| <img class="img" src="../assets/pic_mrfm_wj@2x.png"/> | |
| </div> | |
| </div> | |
| </div> | |
| <div class="pdf-wrapper" v-show="showpdf"> | |
| <div class="body-content" style="height:px;"> | |
| <v-touch @swipeleft="changeindexleft()" @swiperight="changeindexright(3)"> | |
| <div id="magazine" style="height:850px;width:1200px;margin-left:0 !important;"> | |
| <!-- <div v-for="(item, index) in pdfPicturePath" :key="`test_${index}`">--> | |
| <!-- <div>--> | |
| <!-- <v-touch @swipeleft="changeindexleft()" @swiperight="changeindexright(3)">--> | |
| <!-- <img :src="item.pic" class="pdf_pic" />--> | |
| <!-- </v-touch>--> | |
| <!-- </div>--> | |
| <!-- </div>--> | |
| </div> | |
| </v-touch> | |
| <div style="margin: auto; text-align: center; display: none"> | |
| <div id="docView" ref="docView3"></div> | |
| </div> | |
| </div> | |
| </div> | |
| </div> | |
| </div> | |
| </div> | |
| </div> | |
| </div> | |
| </div> | |
| </div> | |
| </div> | |
| </template> | |
| <script> | |
| import drawMixin from "../utils/drawMixin"; | |
| import "github-markdown-css/github-markdown.css" | |
| import fullscreen from "@/views/fullscreen"; | |
| import Multiselect from "vue-multiselect"; | |
| import $ from "jquery"; | |
| import * as PDFJS from "pdfjs-dist"; | |
| import turn from "../utils/lib/turn.min.js" | |
| import M from "../model/m"; | |
| export default { | |
| mixins: [ drawMixin ], | |
| data() { | |
| return { | |
| categoryslist:[], //首页的分类列表， 一共有六个分类 | |
| //下拉选择框 三个 | |
| selectoptions:[ | |
| ], | |
| selectoptions:[], | |
| selectoptions:[], | |
| //下拉选择框的值 三个 | |
| value:{}, | |
| value:{}, | |
| value:{}, | |
| //下拉选择后的列表 三个 | |
| selectList:[], | |
| //列表中选中的标记， 主要是为了显示 条目中的小箭头 | |
| selectItemIndex:-1, | |
| selectList:[], | |
| selectItemIndex:-2, | |
| selectList:[], | |
| selectItemIndex:-3, | |
| //标记pdf记号 | |
| ispdf:false, | |
| ispdf:false, | |
| ispdf:false, | |
| //showpdf div的标记 | |
| showpdf:false, | |
| showpdf:false, | |
| showpdf:false, | |
| showfengmian:true, | |
| showfengmian:true, | |
| showfengmian:true, | |
| articleDetail:{}, | |
| articleDetail:{}, | |
| articleDetail:{}, | |
| pdfPicturePath: [], // pdf转化的图片地址 | |
| pdfPicturePath: [], // pdf转化的图片地址 | |
| pdfPicturePath: [], // pdf转化的图片地址 | |
| loading:true, | |
| } | |
| }, | |
| components: { | |
| fullscreen, | |
| Multiselect | |
| }, | |
| computed:{ | |
| }, | |
| mounted() { | |
| this.initData(); | |
| //this.timeFn() | |
| //this.readPdf("bbb.pdf") | |
| this.cancelLoading(); | |
| this.$refs.fullscreen.toggleFullScreen(); | |
| }, | |
| beforeDestroy () { | |
| }, | |
| methods: { | |
| chooseSelect(selectoption){ | |
| this.getSelectList(selectoption,); | |
| }, | |
| chooseSelect(selectoption){ | |
| this.getSelectList(selectoption,); | |
| }, | |
| chooseSelect(selectoption){ | |
| this.getSelectList(selectoption,); | |
| }, | |
| initData(){ | |
| //得到首页的图片列表 | |
| M.getCategorys().then(res=>{ | |
| this.categoryslist = res.data.categories; | |
| }) | |
| }, | |
| //封面被点击 | |
| fengmianclick(index,categoryslistindex){ | |
| console.log(index,categoryslistindex); | |
| //index 表示是哪一列中的（本屏一共有三列） | |
| //categoryslistindex 被点击的在 categoryslist中的index | |
| let showfengmianX = "showfengmian"+index; | |
| this[showfengmianX] = false; | |
| let thecategory = this.categoryslist[categoryslistindex]; | |
| M.getCategorys(thecategory.id).then(res=>{ | |
| let selectoptions = res.data.categories; | |
| let selectoptionsX = "selectoptions"+index; | |
| this[selectoptionsX] = selectoptions; | |
| let valueX = "value"+index; | |
| this[valueX] = selectoptions[]; | |
| //这里要显示默认的项的信息 | |
| this.getSelectList(selectoptions[],index); | |
| }) | |
| }, | |
| getSelectList(value,index){ | |
| //index表示第几列的 | |
| let params = { | |
| category_id:value.id | |
| } | |
| M.getselectLists(params).then(res=>{ | |
| console.log(res); | |
| let selectListX = "selectList"+index; | |
| let selectlist = res.data.map(i=>{ | |
| i.name=i.post_title; | |
| if(i.tag ==){ | |
| i.type = "txt" | |
| }else if(i.tag ==){ | |
| i.type = "pdf"; | |
| } | |
| return i; | |
| }); | |
| this[selectListX] = selectlist; | |
| let selectItemIndexX = "selectItemIndex"+index; | |
| this[selectItemIndexX] =; | |
| let theselectItem = selectlist[]; | |
| this.getArticleDetail(theselectItem,index); | |
| }) | |
| }, | |
| //通过文章id来显示文章的详情 | |
| getArticleDetail(theselectItem,index){ | |
| //index 第几列 | |
| if(!theselectItem){ | |
| let articleDetailX = "articleDetail"+index; | |
| this[articleDetailX] = []; | |
| return; | |
| } | |
| let ispdfX = "ispdf"+index; | |
| let article_id = theselectItem.id; | |
| this[ispdfX] = theselectItem.type == "pdf"?true:false | |
| M.getArticleDetail(article_id).then(res=>{ | |
| let articleDetailX = "articleDetail"+index; | |
| this[articleDetailX] = res.data; | |
| if(theselectItem.type == "pdf"){ | |
| this.readPdf(res.data.more.files[].url,index); | |
| //this.readPdf("bbb.pdf?"+Math.random(),index) | |
| } | |
| }) | |
| }, | |
| //回退 | |
| backtoshow(index){ | |
| //index 表示是哪一列中的（本屏一共有三列） | |
| let showpdfX = "showpdf"+index; | |
| //当 showpdfX == true是 一定是显示了pdf 的滑动页 | |
| if(this[showpdfX]){ | |
| this[showpdfX] = !this[showpdfX] | |
| }else{ | |
| //如果是showpdfX 是 false ,那就应该是退回上一级的页面 | |
| let showfengmianX = "showfengmian"+index; | |
| this[showfengmianX] = true; | |
| } | |
| }, | |
| pdfshowClick(index,files){ | |
| //index 表示是哪一列中的（本屏一共有三列） | |
| let showpdfX = "showpdf"+index; | |
| this[showpdfX] = true; | |
| //是在这里加载pdf ,还是在列表中点击的时候加载pdf 可以测试一下哪个要好一点 | |
| //this.readPdf("bbb.pdf",index) | |
| }, | |
| chooselist(index,listindex,item){ | |
| //第一个index 表示是哪一列中的（本屏一共有三列） | |
| //listindex 表示点击的是哪一条数据 | |
| let selectItemIndexX = "selectItemIndex"+index; | |
| this[selectItemIndexX] = listindex; | |
| let selectListX = "selectList"+index; | |
| //从selectListX中的数组中得到这条信息的具体内容，并标记是否是一个pdf文件 | |
| //看后台的设计，这里可能是要请求接口的 | |
| let ispdfX = "ispdf"+index; | |
| this[ispdfX] = this[selectListX][listindex].type == "pdf"?true:false | |
| this.getArticleDetail(item,index) | |
| }, | |
| //书翻页 | |
| changeindexleft(index){ | |
| this.$nextTick(()=>{ | |
| if(index ==){ | |
| $("#magazine").turn("next") | |
| }else if(index ==){ | |
| $("#magazine").turn("next") | |
| }else if(index ==){ | |
| $("#magazine").turn("next") | |
| } | |
| }) | |
| }, | |
| changeindexright(index){ | |
| this.$nextTick(()=>{ | |
| if(index ==){ | |
| $("#magazine").turn("previous") | |
| }else if(index ==){ | |
| $("#magazine").turn("previous") | |
| }else if(index ==){ | |
| $("#magazine").turn("previous") | |
| } | |
| }) | |
| }, | |
| //初始化pdf插件 | |
| /* | |
| ** @param fileUrl pdf有效的查看地址 | |
| ** （、线上地址(如：http://www.xxx.com) | |
| **、本地public地址（例如：/static/view.pdf）） | |
| ** @param pdfPicturePath pdf转化的图片地址-用于放大查看所有pdf图片 | |
| */ | |
| readPdf(fileUrl,index) { | |
| let self = this; | |
| if(index ==){ | |
| let loadingTask = PDFJS.getDocument(fileUrl); //读取pdf文件 | |
| console.log(loadingTask, '-----------loadingTask'); | |
| loadingTask.promise | |
| .then(function (pdf) { | |
| if (pdf) { | |
| // pdf 总页数 | |
| const pageNum = pdf.numPages; | |
| for (let i =; i <= pageNum; i++) { | |
| // 生成每页 pdf 的 canvas | |
| const canvas = document.createElement('canvas'); | |
| canvas.id = 'page'+index+'Num' + i; | |
| canvas.className = 'h'+index; | |
| // 将 canvas 添加到 dom 中,docView(存放canvas的div) | |
| let docViewX = "docView"+index; | |
| console.log(docViewX); | |
| self.$refs[docViewX].append(canvas); | |
| //getContext() 方法返回一个用于在画布上绘图的环境。 | |
| const context = canvas.getContext('d'); | |
| self.openPage(pdf, i, context); | |
| } | |
| setTimeout(() => { | |
| self.exportImg(self,index); | |
| },); | |
| } | |
| }) | |
| .catch(function (reason) { | |
| console.error('Error: ' + reason); | |
| }); | |
| } | |
| if(index ==){ | |
| let loadingTask = PDFJS.getDocument(fileUrl); //读取pdf文件 | |
| console.log(loadingTask, '-----------loadingTask'); | |
| loadingTask.promise | |
| .then(function (pdf) { | |
| if (pdf) { | |
| // pdf 总页数 | |
| const pageNum = pdf.numPages; | |
| for (let i =; i <= pageNum; i++) { | |
| // 生成每页 pdf 的 canvas | |
| const canvas = document.createElement('canvas'); | |
| canvas.id = 'page'+index+'Num' + i; | |
| canvas.className = 'h'+index; | |
| // 将 canvas 添加到 dom 中,docView(存放canvas的div) | |
| let docViewX = "docView"+index; | |
| console.log(docViewX); | |
| self.$refs[docViewX].append(canvas); | |
| //getContext() 方法返回一个用于在画布上绘图的环境。 | |
| const context = canvas.getContext('d'); | |
| self.openPage(pdf, i, context); | |
| } | |
| setTimeout(() => { | |
| self.exportImg(self,index); | |
| },); | |
| } | |
| }) | |
| .catch(function (reason) { | |
| console.error('Error: ' + reason); | |
| }); | |
| } | |
| if(index ==){ | |
| let loadingTask = PDFJS.getDocument(fileUrl); //读取pdf文件 | |
| console.log(loadingTask, '-----------loadingTask'); | |
| loadingTask.promise | |
| .then(function (pdf) { | |
| if (pdf) { | |
| // pdf 总页数 | |
| const pageNum = pdf.numPages; | |
| for (let i =; i <= pageNum; i++) { | |
| // 生成每页 pdf 的 canvas | |
| const canvas = document.createElement('canvas'); | |
| canvas.id = 'page'+index+'Num' + i; | |
| canvas.className = 'h'+index; | |
| // 将 canvas 添加到 dom 中,docView(存放canvas的div) | |
| let docViewX = "docView"+index; | |
| console.log(docViewX); | |
| self.$refs[docViewX].append(canvas); | |
| //getContext() 方法返回一个用于在画布上绘图的环境。 | |
| const context = canvas.getContext('d'); | |
| self.openPage(pdf, i, context); | |
| } | |
| setTimeout(() => { | |
| self.exportImg(self,index); | |
| },); | |
| } | |
| }) | |
| .catch(function (reason) { | |
| console.error('Error: ' + reason); | |
| }); | |
| } | |
| }, | |
| //pdf转成canvas | |
| /* | |
| ** @param loading pdf生成图片时的加载状态 | |
| ** @param scale 控制 canvas显示的大小 | |
| ** @param pdfPicturePath pdf转化的图片地址-用于放大查看所有pdf图片 | |
| */ | |
| openPage(pdfFile, pageNumber, context) { | |
| let that = this; | |
| pdfFile.getPage(pageNumber).then(function (page) { | |
| // reference canvas via context | |
| let viewport = page.getViewport({scale:}); | |
| let scale =( / viewport.height).toFixed(2) | |
| let viewport = page.getViewport({scale:scale}); | |
| let canvas = context.canvas; | |
| canvas.width = viewport.width; | |
| canvas.height = viewport.height; | |
| canvas.style.width = '%'; | |
| canvas.style.height = '%'; | |
| let renderContext = { | |
| canvasContext: context, | |
| viewport: viewport | |
| }; | |
| page.render(renderContext); | |
| that.loading = false; | |
| }); | |
| return; | |
| }, | |
| //canvas转成图片（可根据具体情况，进行图片转化显示）这里我把所有图片的base存放在数组里面，方便放大查看，也可以直接把生成图片标签进行图片展示 | |
| // 转图片 | |
| exportImg(self,index) { | |
| //let canvaslist= document.querySelectorAll('canvas'); | |
| let canvaslist = document.getElementsByClassName("h"+index); | |
| let pdfPicturePathX = "pdfPicturePath"+index; | |
| this[pdfPicturePathX] = []; | |
| //这里把所有的图片地址放入到 pdfPicturePath 数组中去 | |
| for (let i =; i < canvaslist.length; i++) { | |
| // let canvas = document.getElementById("pageNum" + (i +)); | |
| // // 将 canvas 转成 base 格式的图片 | |
| // let baseImgSrc = (canvas as any).toDataURL("image/png") | |
| // const img = document.createElement("img") | |
| // img.setAttribute('class', 'pdf-img'); | |
| // img.src = baseImgSrc | |
| // img.style.width = '%'; | |
| // // 将图片挂载到 dom 中 | |
| // (self.$refs as any).docView.append(img); | |
| let canvasNode = document.getElementById('page'+index+'Num' + (i +)); | |
| // 将 canvas 转成 base 格式的图片 | |
| if(canvasNode){ | |
| this[pdfPicturePathX].push({page: i +, pic: canvasNode.toDataURL('image/png'), name: i + 1}) | |
| }else { | |
| continue; | |
| } | |
| //console.log('--------------aaa-------------', this.pdfPicturePath); | |
| } | |
| this.$nextTick(()=>{ | |
| if(index ==){ | |
| if($("#magazine").children().length > 0){ | |
| $("#magazine").turn("destroy"); | |
| $("#magazine").children().remove(); | |
| } | |
| let magazine = $("#magazine1"); | |
| this[pdfPicturePathX].forEach(i=>{ | |
| magazine.append("<img src='"+i.pic+"'/>") | |
| }); | |
| //setTimeout(()=>{ | |
| $("#magazine").turn({ | |
| autoCenter: true, | |
| elevation:, | |
| acceleration: true, | |
| //direction:"rtl", | |
| // when: { | |
| // turned: function() { | |
| // //当前页 | |
| // // console.log("Current view: ", $(this).turn("view")); | |
| // // //总页数 | |
| // // console.log( | |
| // // "#magazine has " + $("#magazine").turn("pages") + " pages" | |
| // // ); | |
| // //$("#magazine").turn("hasPage",); | |
| // //$("#magazine").turn("pages",); | |
| // } | |
| // } | |
| }) | |
| $("#magazine").turn("center"); | |
| $("#magazine").turn("page"); | |
| //console.log($("#magazine").turn("pages")); | |
| $("#magazine").bind("start",function(e,p,c){ | |
| if(c == "tl"||c == 'tr'){ | |
| e.preventDefault(); | |
| } | |
| }) | |
| //},) | |
| } | |
| if(index ==){ | |
| if($("#magazine").children().length > 0){ | |
| $("#magazine").turn("destroy"); | |
| $("#magazine").children().remove(); | |
| } | |
| let magazine = $("#magazine2"); | |
| this[pdfPicturePathX].forEach(i=>{ | |
| magazine.append("<div><img src='"+i.pic+"'/></div>") | |
| }); | |
| $("#magazine").turn("center"); | |
| $("#magazine").turn("page"); | |
| $("#magazine").turn({ | |
| autoCenter: true, | |
| acceleration: true, | |
| //direction:"rtl", | |
| when: { | |
| turned: function() { | |
| //当前页 | |
| // console.log("Current view: ", $(this).turn("view")); | |
| // //总页数 | |
| // console.log( | |
| // "#magazine has " + $("#magazine").turn("pages") + " pages" | |
| // ); | |
| //$("#magazine").turn("hasPage",); | |
| //$("#magazine").turn("pages",); | |
| } | |
| } | |
| }) | |
| $("#magazine").bind("start",function(e,p,c){ | |
| if(c == "tl"||c == 'tr'){ | |
| e.preventDefault(); | |
| } | |
| }) | |
| } | |
| if(index ==){ | |
| if($("#magazine").children().length > 0){ | |
| $("#magazine").turn("destroy"); | |
| $("#magazine").children().remove(); | |
| } | |
| let magazine = $("#magazine3"); | |
| this[pdfPicturePathX].forEach(i=>{ | |
| magazine.append("<div><img src='"+i.pic+"'/></div>") | |
| }); | |
| $("#magazine").turn("center"); | |
| $("#magazine").turn("page"); | |
| $("#magazine").turn({ | |
| autoCenter: true, | |
| acceleration: true, | |
| //direction:"ltr", | |
| when: { | |
| turned: function() { | |
| //当前页 | |
| // console.log("Current view: ", $(this).turn("view")); | |
| // //总页数 | |
| // console.log( | |
| // "#magazine has " + $("#magazine").turn("pages") + " pages" | |
| // ); | |
| //$("#magazine").turn("hasPage",); | |
| //$("#magazine").turn("pages",); | |
| } | |
| } | |
| }) | |
| $("#magazine").bind("start",function(e,p,c){ | |
| if(c == "tl"||c == 'tr'){ | |
| e.preventDefault(); | |
| } | |
| }) | |
| } | |
| }) | |
| }, | |
| cancelLoading() { | |
| setTimeout(() => { | |
| this.loading = false | |
| },) | |
| } | |
| } | |
| } | |
| </script> | |
| <style src="vue-multiselect/dist/vue-multiselect.min.css"></style> | |
| <style lang="scss" scoped> | |
| @import '../assets/scss/index.scss'; | |
| .row{ | |
| margin-top:px; | |
| .title-wrapper{ | |
| position:relative; | |
| padding-left:px; | |
| &::before{ | |
| position:absolute; | |
| left:px; | |
| top:; | |
| content:""; | |
| width:px; | |
| height:px; | |
| background:#FBFF; | |
| } | |
| } | |
| } | |
| .row{ | |
| width:%; | |
| height:px; | |
| display:flex; | |
| flex-flow: row nowrap; | |
| justify-content: space-between; | |
| align-items: center; | |
| padding: 10px; | |
| .item_{ | |
| flex:; | |
| width:%; | |
| height:%; | |
| display:flex; | |
| justify-content: center; | |
| align-items: center; | |
| .picwrapper{ | |
| width:%; | |
| height:px; | |
| display:flex; | |
| justify-content: space-between; | |
| align-items: center; | |
| padding: 50px; | |
| .initem{ | |
| width:px; | |
| height:px; | |
| box-shadow: 0 10px 10px rgba(255,255,255,.4); | |
| border-radius:px; | |
| overflow: hidden; | |
| position: relative; | |
| img{ | |
| width:px; | |
| height:px; | |
| border-radius:px; | |
| } | |
| .intitle{ | |
| position: absolute; | |
| font-size:px; | |
| font-weight: bold; | |
| bottom:px; | |
| text-align: center; | |
| width:%; | |
| color:#fff; | |
| text-shadow:px 0px 30px #023b92; | |
| letter-spacing:px; | |
| } | |
| } | |
| } | |
| .detailwrapper{ | |
| width:%; | |
| height:px; | |
| padding: 50px; | |
| .dtop{ | |
| overflow: hidden; | |
| img{ | |
| transform: translate(-%,0); | |
| } | |
| } | |
| .btmwrapper{ | |
| display:flex; | |
| width:%; | |
| height:px; | |
| margin-top:px; | |
| .left{ | |
| flex-basis:px; | |
| img{ | |
| position: relative; | |
| top:%; | |
| transform: translate(,-50%); | |
| width:px; | |
| height:px; | |
| } | |
| } | |
| .right{ | |
| flex:; | |
| box-shadow: rgba(,255,255,.9) 0 0 20px inset; | |
| padding:px; | |
| box-sizing: border-box; | |
| display:flex; | |
| justify-content: space-between; | |
| .content{ | |
| width:%; | |
| display:flex; | |
| justify-content: space-between; | |
| align-items: center; | |
| .listdetailwrapper{ | |
| width:px; | |
| height:auto; | |
| .listtop{ | |
| width:px; | |
| ::v-deep .multiselect--active{ | |
| .multiselect__select{ | |
| z-index:; | |
| } | |
| .multiselect__input{ | |
| color:#fff ; | |
| } | |
| } | |
| ::v-deep .multiselect{ | |
| min-height:px; | |
| font-size:px ; | |
| .multiselect__select{ | |
| width:px; | |
| height:px; | |
| line-height:px; | |
| background: #FFDC; | |
| border-radius:px; | |
| margin-top:px; | |
| &:before{ | |
| border-width:px 18px 0; | |
| } | |
| } | |
| .multiselect__tags{ | |
| min-height:px; | |
| font-size:px; | |
| line-height:px; | |
| background:#B6CD2; | |
| .multiselect__input{ | |
| min-height:px; | |
| line-height:px; | |
| font-size:px; | |
| background:#B6CD2; | |
| color:#fff ; | |
| } | |
| .multiselect__single{ | |
| min-height:px; | |
| line-height:px; | |
| font-size:px; | |
| background:none; | |
| color:#fff; | |
| } | |
| } | |
| .multiselect__content-wrapper{ | |
| max-height:px ; | |
| .multiselect__option{ | |
| min-height:px; | |
| line-height:px; | |
| } | |
| } | |
| } | |
| ::v-deep .multiselect__option--highlight{ | |
| background:#aaa; | |
| } | |
| } | |
| .listwrapper{ | |
| width:%; | |
| height:px; | |
| overflow-y:scroll; | |
| -webkit-overflow-scrolling : touch; | |
| &::-webkit-scrollbar { width: } | |
| .coloractive{ | |
| color:#FFDC ; | |
| } | |
| .listitem{ | |
| height:px; | |
| font-size:px; | |
| line-height:px; | |
| color:#fff; | |
| padding: 20px; | |
| box-sizing: border-box; | |
| text-overflow: ellipsis; | |
| overflow: hidden; | |
| white-space: nowrap; | |
| width:%; | |
| span{ | |
| font-size:px; | |
| display: inline-block; | |
| height:px; | |
| float:right; | |
| line-height:px; | |
| color:#FFDC; | |
| margin-right:px | |
| } | |
| &:hover{ | |
| background:rgba(,255,255,0.3); | |
| color:#FFDC | |
| } | |
| } | |
| } | |
| } | |
| .detail{ | |
| flex:; | |
| padding:px; | |
| box-sizing: border-box; | |
| overflow-y: scroll; | |
| &::-webkit-scrollbar{ | |
| width:; | |
| } | |
| .editor{ | |
| background:none; | |
| font-size:px; | |
| color:#fff; | |
| } | |
| .img-wrapper{ | |
| width:px; | |
| hieght:px; | |
| margin: auto; | |
| background:url("../assets/pic_rczc_ym.png") no-repeat center right; | |
| .img{ | |
| width:px; | |
| height:px; | |
| } | |
| } | |
| } | |
| } | |
| .pdf-wrapper{ | |
| width:%; | |
| display:flex; | |
| justify-content: center; | |
| align-items: center; | |
| .decit{ | |
| font-size:px; | |
| z-index:; | |
| } | |
| } | |
| } | |
| } | |
| } | |
| } | |
| } | |
| </style> |
说一下这个项目， 这个项目中使用 turnjs 的时候
只能 倒翻书， 不能正翻书， direction:“rtl”, 只能rtl才生效， 如果是 ltr 就是出错，无效果
后来找到了另外一个解决办法 v-touch 就是解决的办法
首先 禁止掉 turnjs 的翻页效果
| //这段代码就是禁止 turnjs 的翻书效果 | |
| $("#magazine").bind("start",function(e,p,c){ | |
| if(c == "tl"||c == 'tr'){ | |
| e.preventDefault(); | |
| } | |
| }) |
然后， 使用 v-touch 监听 左右滑动
| //书翻页 | |
| changeindexleft(index){ | |
| this.$nextTick(()=>{ | |
| if(index ==){ | |
| $("#magazine").turn("next") | |
| } | |
| }) | |
| }, | |
| changeindexright(index){ | |
| this.$nextTick(()=>{ | |
| if(index ==){ | |
| $("#magazine").turn("previous") | |
| } | |
| }) | |
| }, |
这样书就可以 前后翻动了 解决了 turnjs 只能 倒翻书的问题
还有一个问题， 就是 因为，本页面会加载不同的pdf 文件， 而 turnjs 初始化后 $(“#magazine1”).turn();会在 其中添加很多其它的标记， 如果在 $(“#margazine1”).turn()初始化完成之后 ， 再执行一次 $(“#margazine1”).turn()；就会形成无限的嵌套，导至显示出错。
最初我使用的是 vue 的数据改变来 更改 pdf 图片的显示， 就踩了上面的坑， 后来经过分析， 我在代码中使用了 jquery 的方法来改变数据
上面的代码中
以上便是我使用 vue pdf-dist 和turnjs做翻页的心得
